Removal

FS5R30A - Manual Trans.:

REMOVAL

CAUTION: When removing the M/T assembly from engine, first remove the crankshaft position sensor (OBD) from the M/T assembly. Be careful not to damage sensor edge.


2WD Model
1. Remove battery negative terminal.







2. Remove shift lever.
3. Remove crankshaft position sensor (0BD) from upper side of transmission case.
4. Remove operating cylinder from transmission.
5. Disconnect vehicle speed sensor, back-up lamp switch, heated oxygen sensor (rear) and park/neutral position (PNP) switch harness connectors.
6. Remove starter motor.

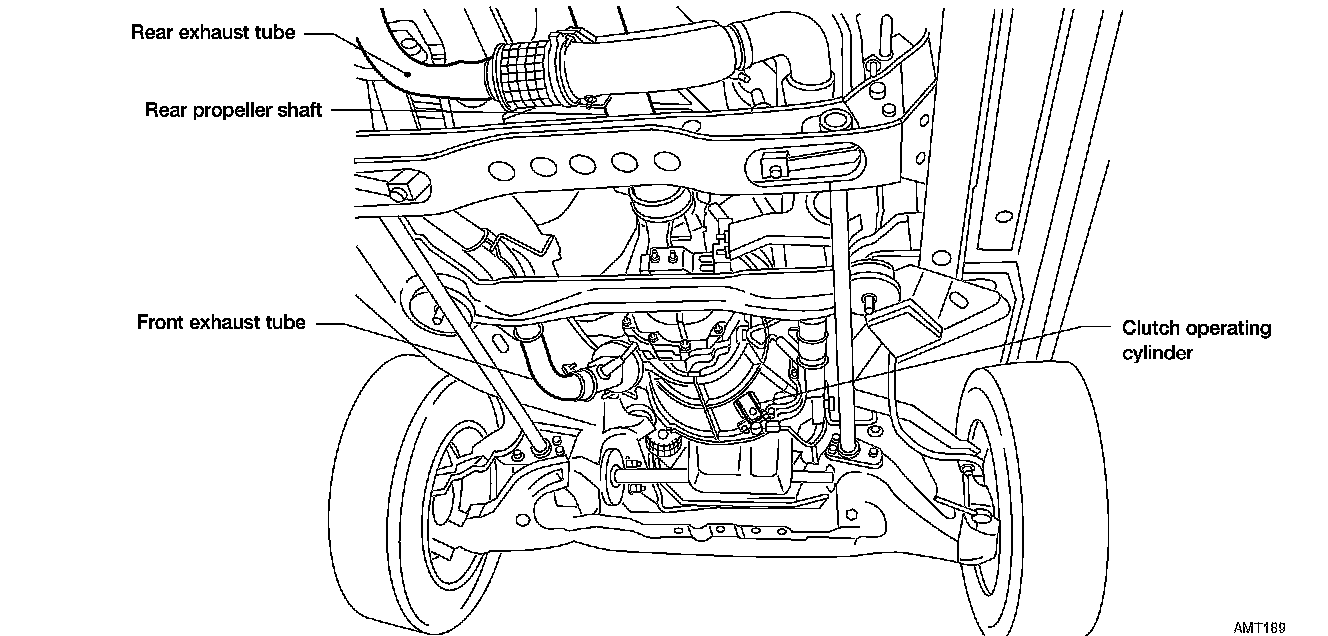

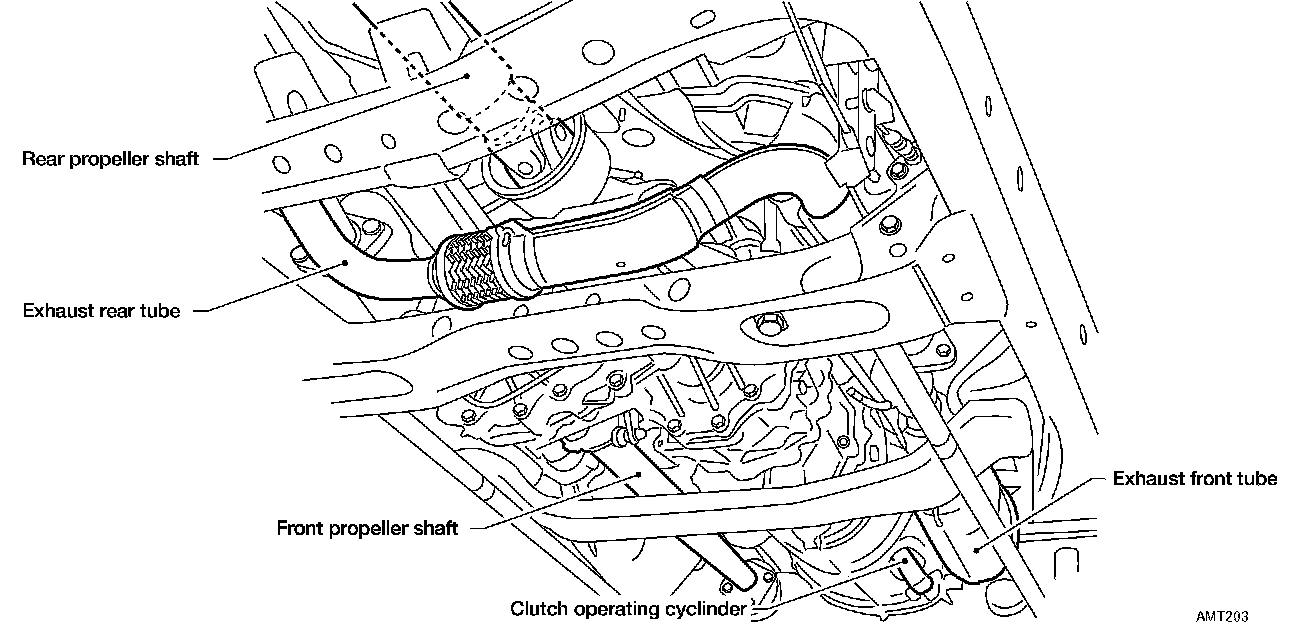

7. Remove propeller shaft.

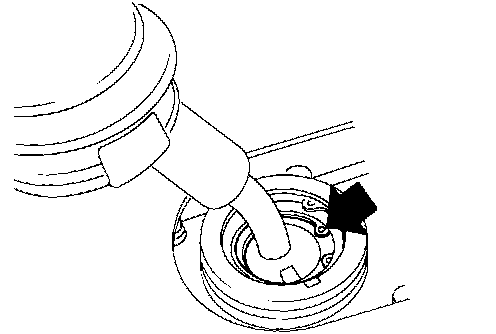

- Insert plug into rear oil seal after removing propeller shaft.
- Be careful not to damage spline, sleeve yoke and rear oil seal when removing propeller shaft.

8. Remove gussets from transmission or engine.
9. Remove exhaust tube mounting bracket from transmission.
10. Support manual transmission with a jack.
11. Remove rear mounting member.
12. Lower manual transmission.







WARNING: Support manual transmission together with transfer while removing it.
