Installation




FS5R30A - Manual Trans.:




FS5R30A - Manual Trans.:




FS5R30A - Manual Trans.:






INSTALLATION

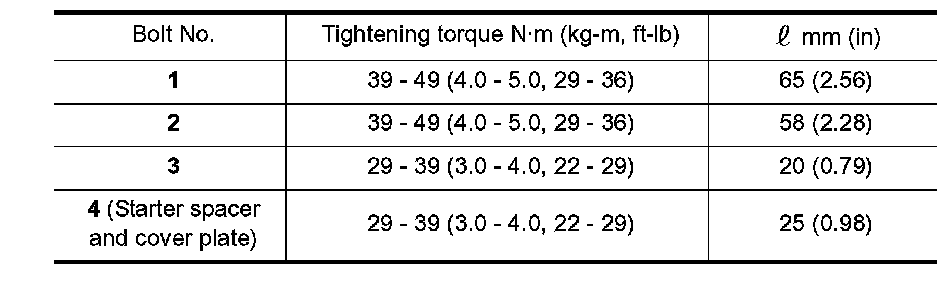

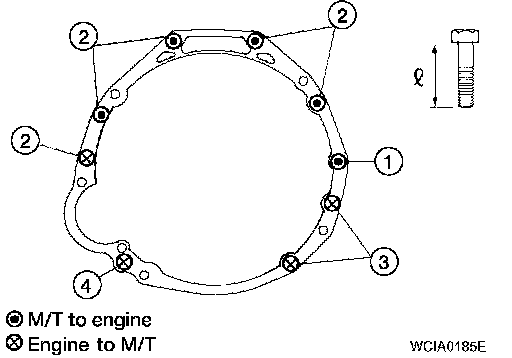

1. Tighten transmission bolts.
2. Installation is in the reverse order of removal.
