Seals and Gaskets: Service and Repair

Replacing Rear Oil Seal - 2WD Model







REMOVAL
1. Remove the propeller shaft.
2. Remove rear oil seal using Tool.
Always replace with a new rear oil seal once it has been removed.

Tool number:..................ST33290001 (J25810-A)







INSTALLATION

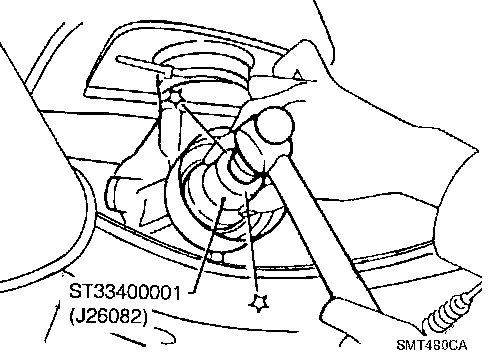

1. Install new rear oil seal until it stops.
Apply multi-purpose grease to seal lip of oil seal before installing.

Tool number:..................ST33400001 (J26082)

2. Installation is in the reverse order of removal.
