Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Specifications >> Front Axle

Front Axle

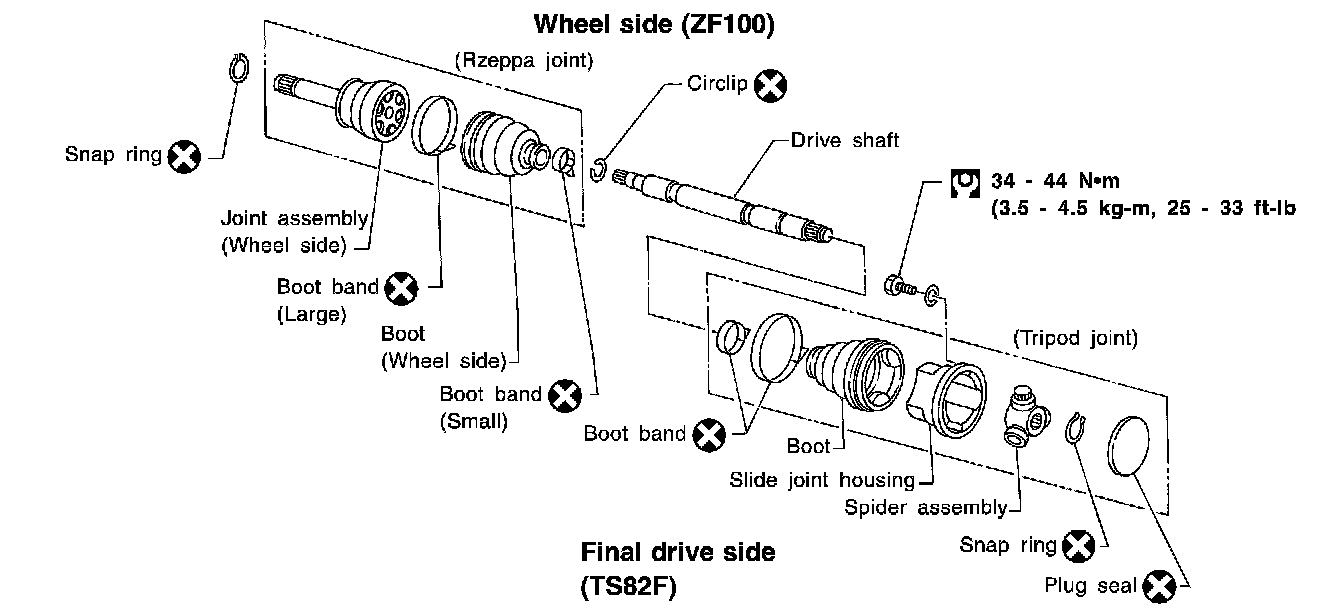

Front Axle:

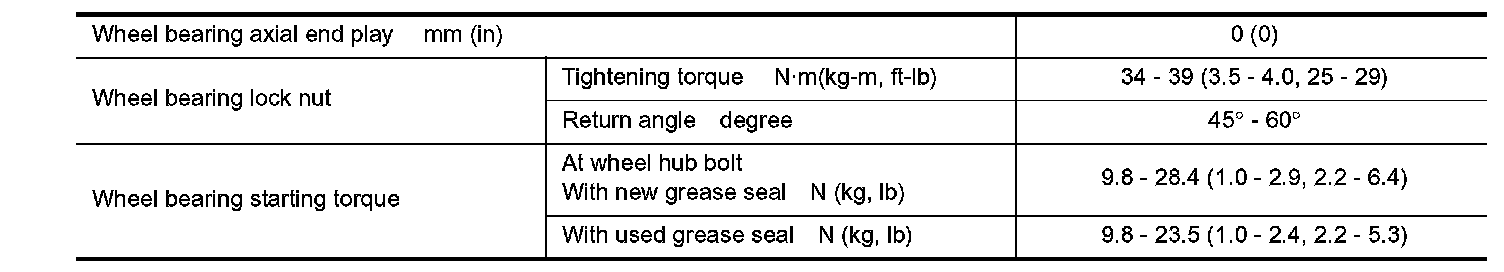

Wheel Bearing (Front) 2WD:
