With LSD (Limited Slip Differential)

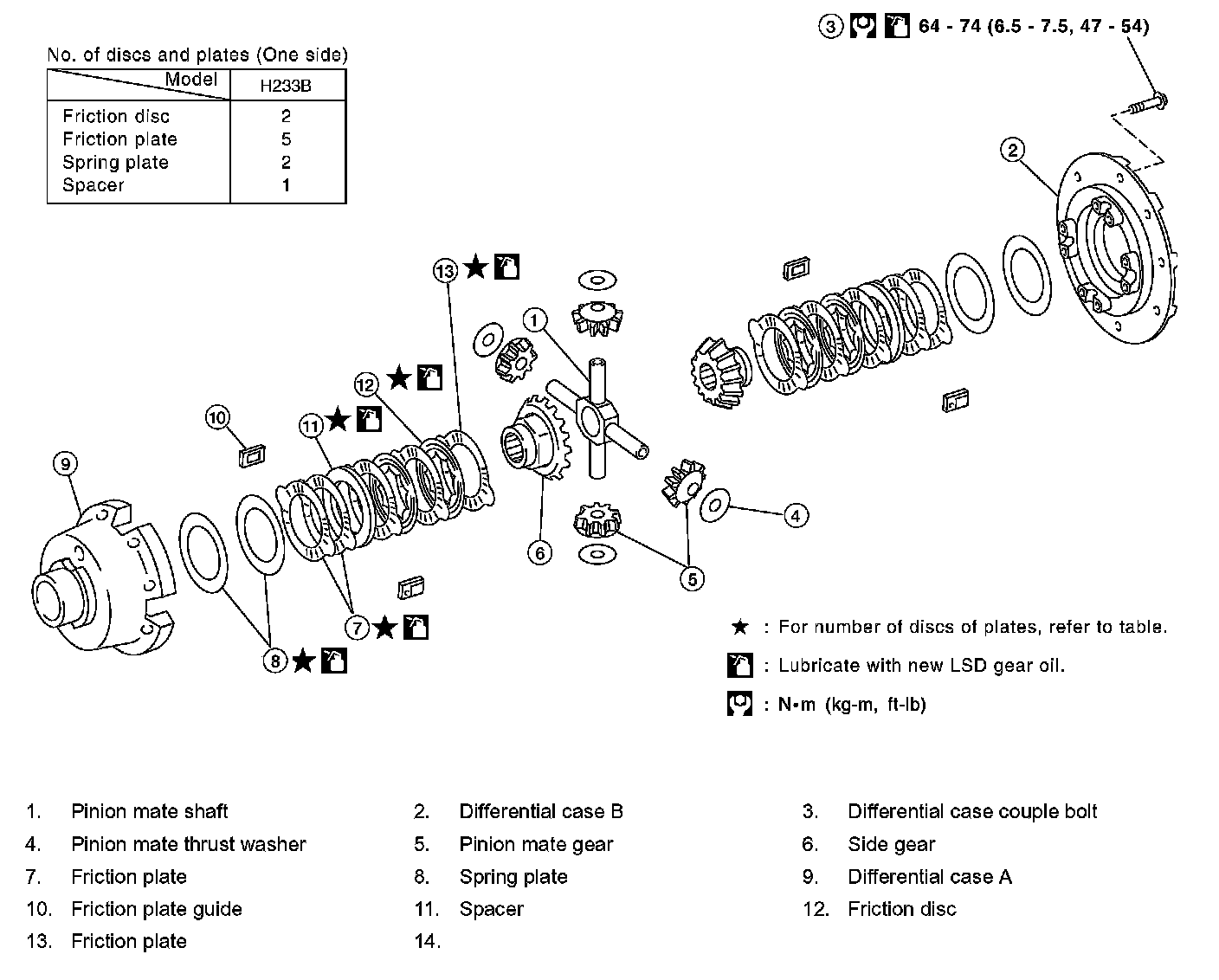

DISASSEMBLY OF DIFFERENTIAL CASE (WITH LSD)


Checking Differential Torque

CAUTION: Do not run engine when only one wheel (rear) is off the ground.

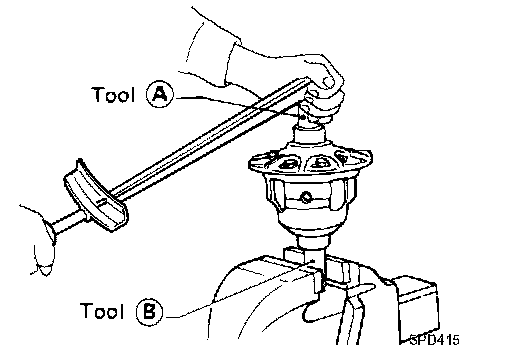

Measure differential torque with Tool.

Differential torque ........................40 - 58 Nm (4 - 6 kgf-cm, 29 - 43 ft. lbs.)

Tool number A:...........................KV38105210
Tool number B :..........................KV38105220

If it is not within the specifications, inspect components of limited slip differential.










Disassembly
1. Remove side bearing inner cones.
To prevent damage to bearing, engage puller jaws in groove.

Tool number A :........................ST33051001(J22888-20)
Tool number B :...........................ST33061000(J8107-2)

2. Loosen ring gear bolts in a crisscross pattern.

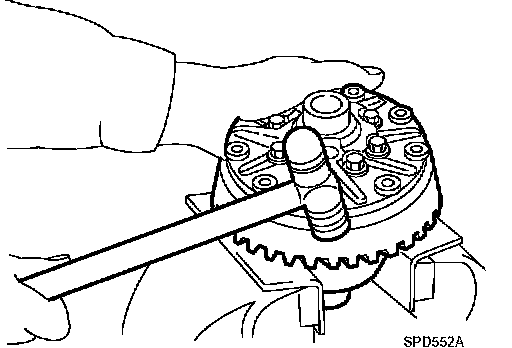

3. Tap ring gear off gear case with a soft hammer.
Tap evenly all around to keep ring gear from binding.

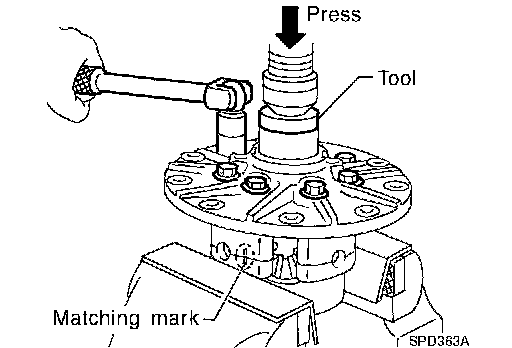

4. Remove differential case couple bolts with a press.

Tool number ............................. ST33081000.

5. Separate differential case A and B.
6. Remove component parts (discs and plates, etc.). Put matchmarks on component parts so that they can be reinstalled in their original positions from which they were removed.
