Front Oil Seal Replacement
FRONT OIL SEALRemoval and Installation
1. Remove rear propeller shaft.

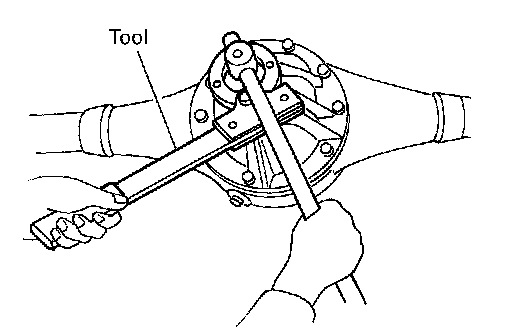

2. Hold companion flange using Tool and loosen drive pinion nut.
Tool number:........................KV38108300 (J-44195)

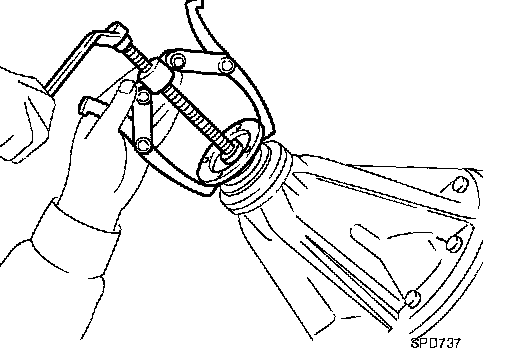

3. Remove companion flange.
4. Remove ABS sensor and sensor rotor (2WID models).

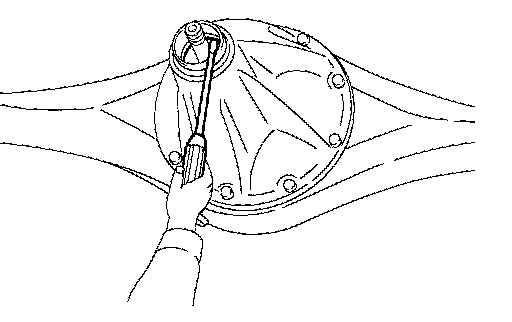

5. Remove front oil seal.

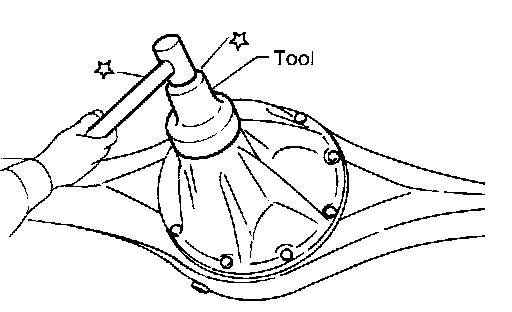

6. Apply multi-purpose grease to cavity at sealing lips of oil seal. Press front oil seal into carrier using Tool.
Tool number:..............................KV38100500 (J25273)
7. Install ABS sensor and sensor rotor (2WD models).
NOTE: Always install a new sensor rotor.
ABS sensor bolt:................................8 - 11 Nm (0.8 - 1.1 kgf-cm, 5.8 - 8.0 ft. lbs.)
8. Install companion flange and drive pinion nut.

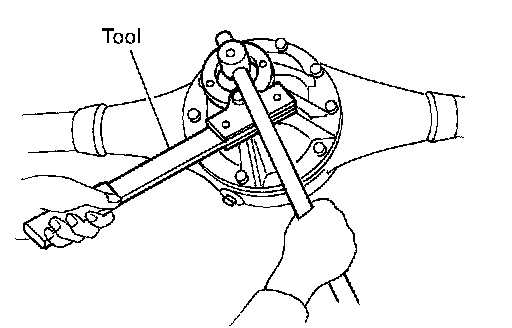

9. Hold companion flange using Tool and tighten drive pinion nut.
Tool number :..........................KV38108300 (J-44195)
Drive pinion nut :......................127 - 294 Nm (13.0 - 30.0 kgf-cm, 94 - 217 ft. lbs.)
10. Install rear propeller shaft.
