Turbine Revolution Sensor Replacement

Turbine Revolution Sensor Replacement (VG33ER only)

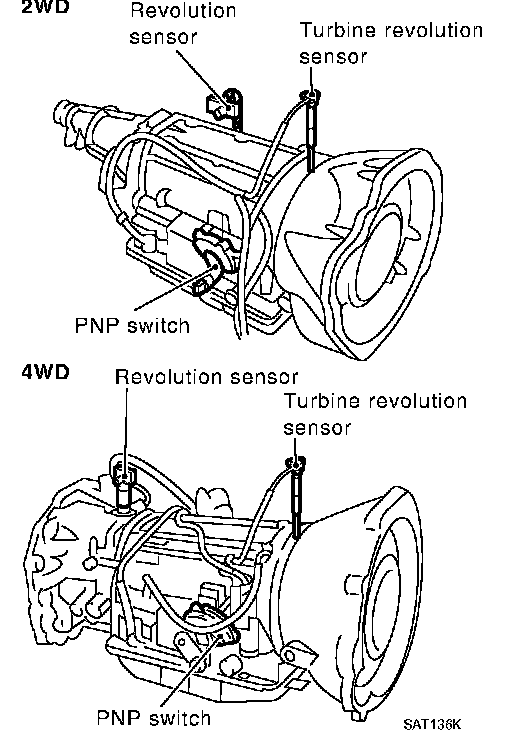

Turbine Revolution Sensor:

1. Remove A/T assembly.
2. Remove turbine revolution sensor from A/T assembly upper side.
3. Reinstall any part removed.
Always use new sealing parts.
