Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Service and Repair >> Front Suspension

Front Suspension

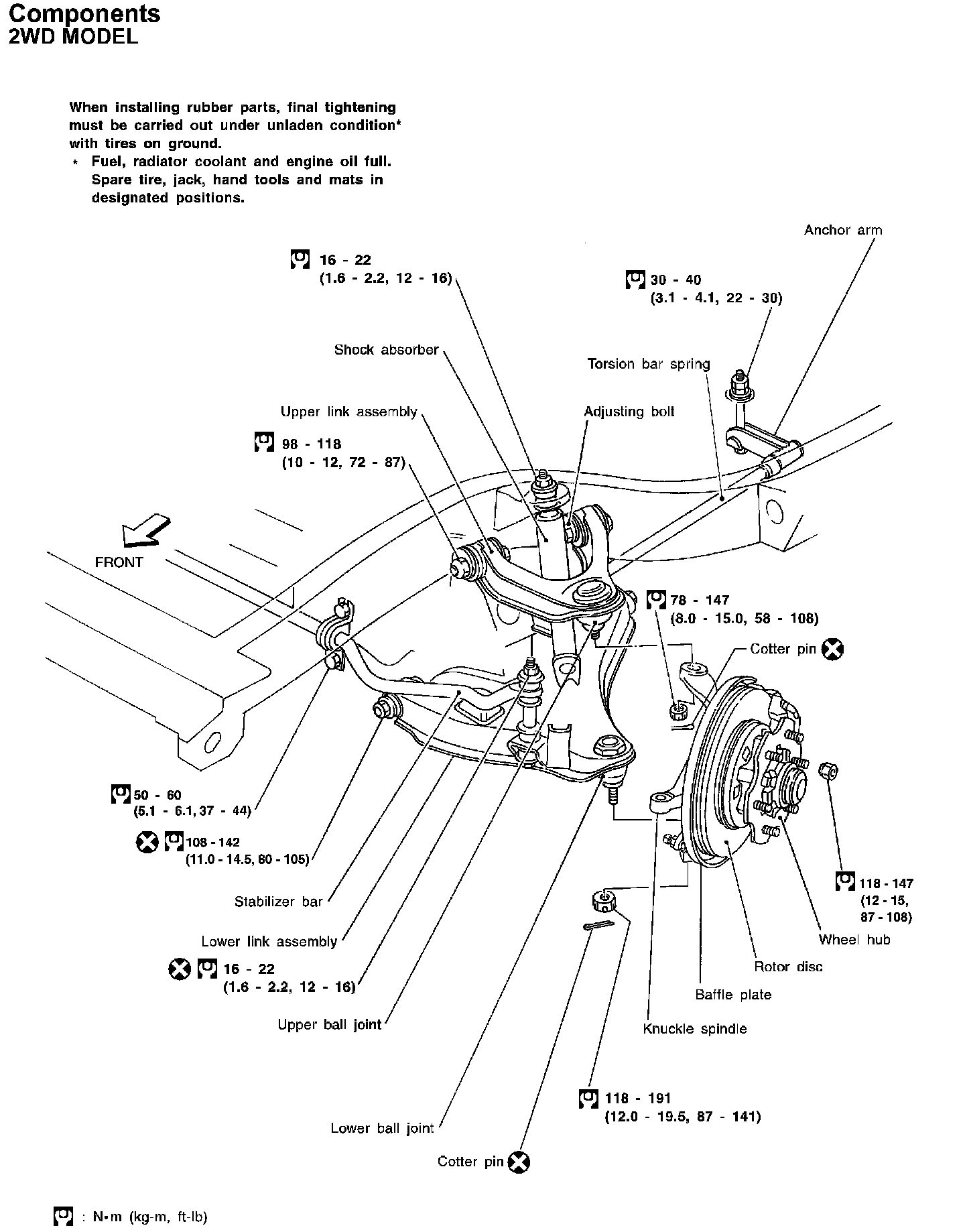

FRONT SUSPENSION ASSEMBLY (2WD):

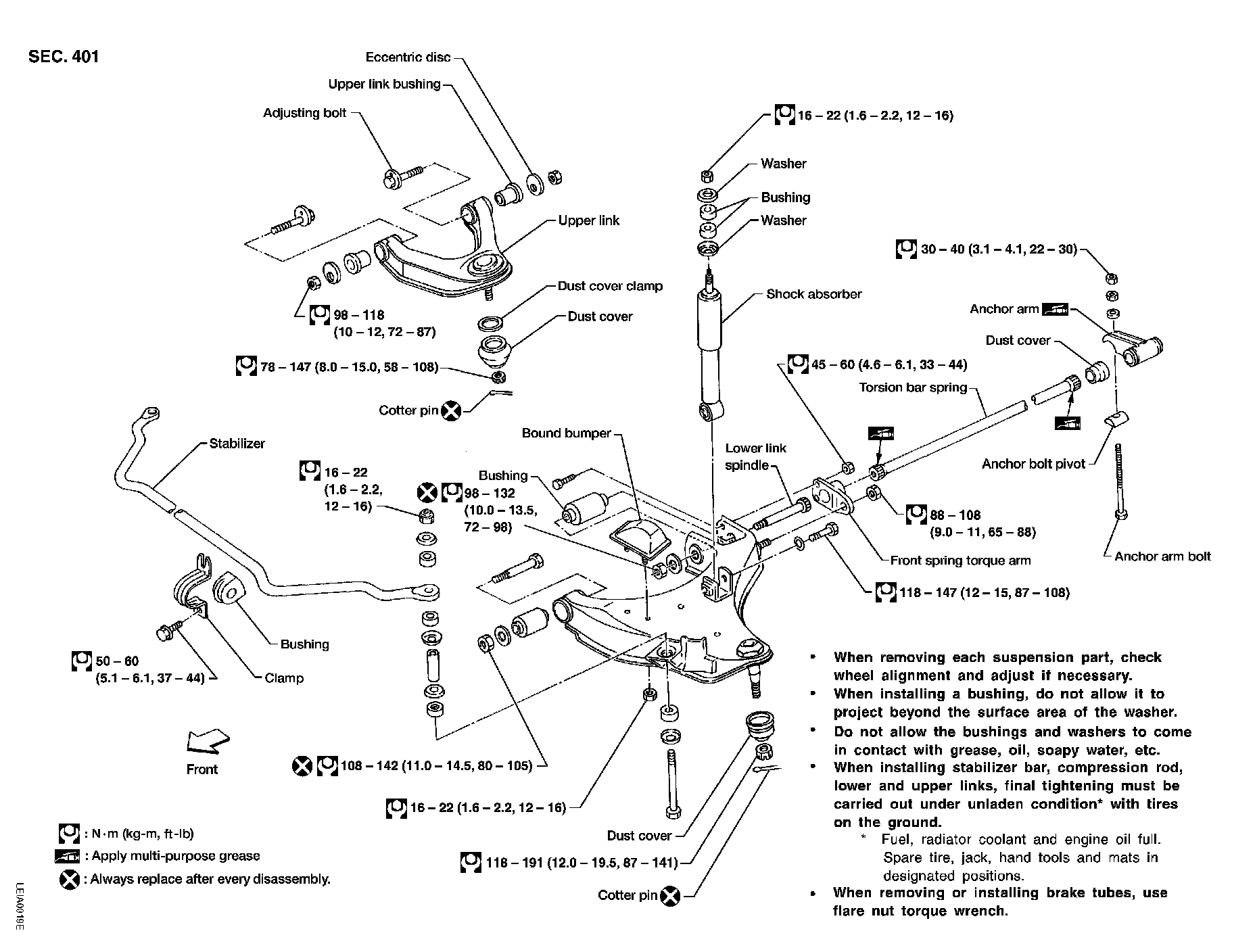

FRONT SUSPENSION:
