Checking Steering Wheel Play

Checking Steering Wheel Play

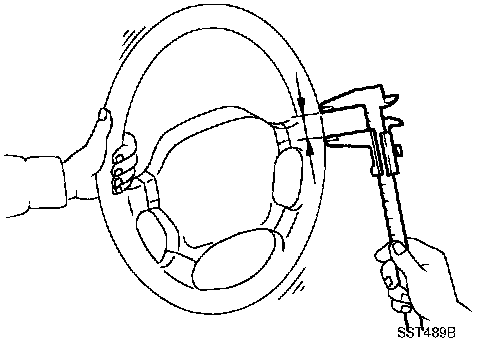

Place wheels in straight ahead position and check steering wheel play.

Steering wheel play:.........................35 mm (1.38 inch) or less

If steering wheel play is not within specification, check the following for loose or worn components.
- Steering column.
- Front suspension and axle.
- Steering gear.
