Checking Front Wheel Turning Angle

Checking Front Wheel Turning Angle

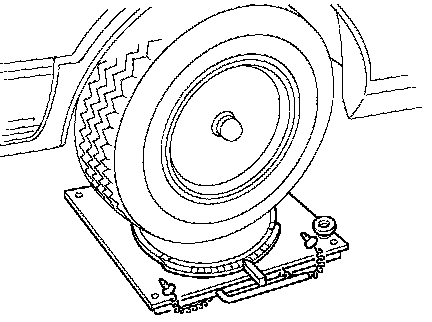

1. Rotate steering wheel fully right, then left; measure turning angle.
2. If it is not within specification, check stopper bolt adjustment.
