Steering: Specifications

POWER STEERING / General Specs:

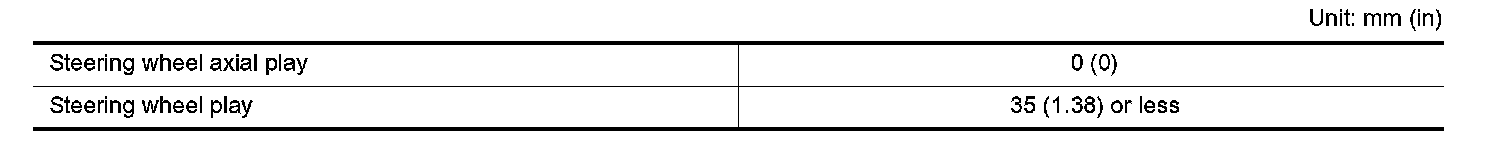

STEERING WHEEL:

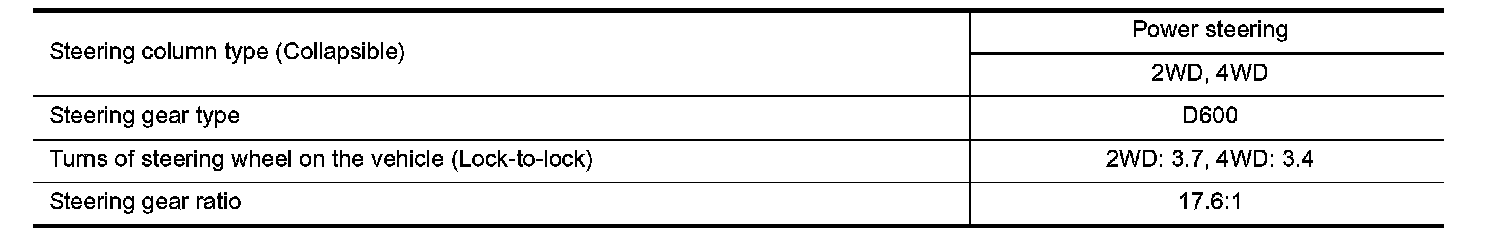

STEERING COLUMN:

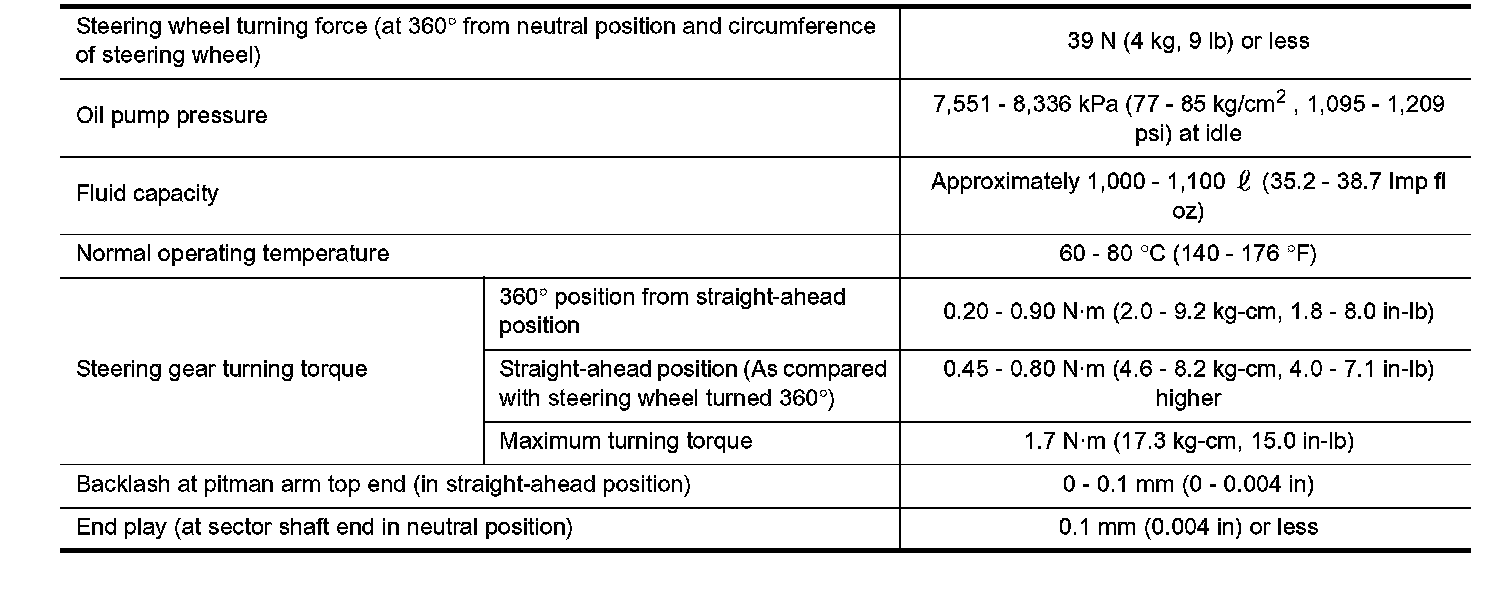

POWER STEERING GEAR (MODEL D600):

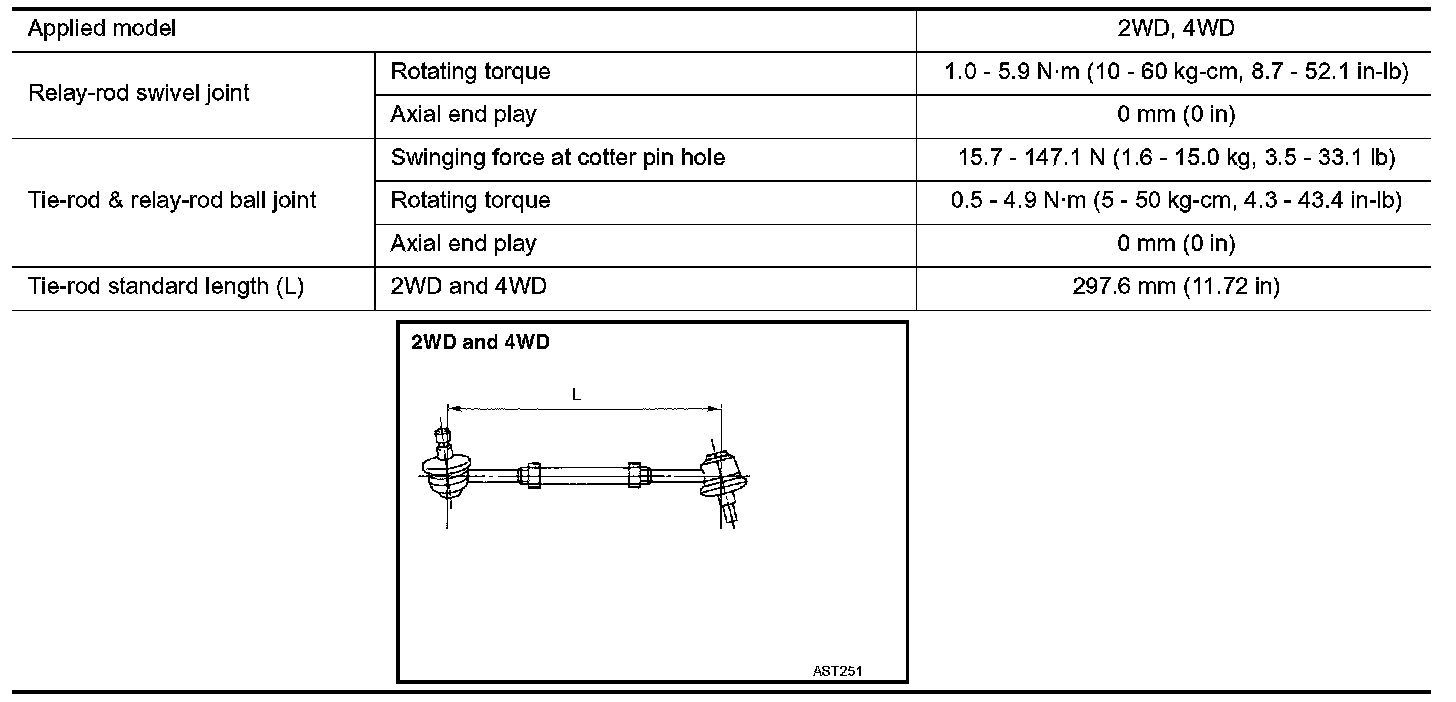

STEERING LINKAGE:
