Starter Motor: Service and Repair
VG33E AND VG33ER MODELS
Removal

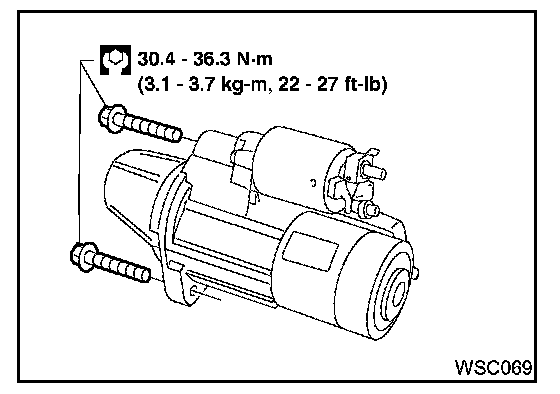

STARTER:
1.
Remove engine undercover.
2.
Remove two bolts and starter.
Installation
To install, reverse the removal procedure.
