Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Testing and Inspection >> Diagnostic Procedures >> Diagnostic Procedure 1

Diagnostic Procedure 1

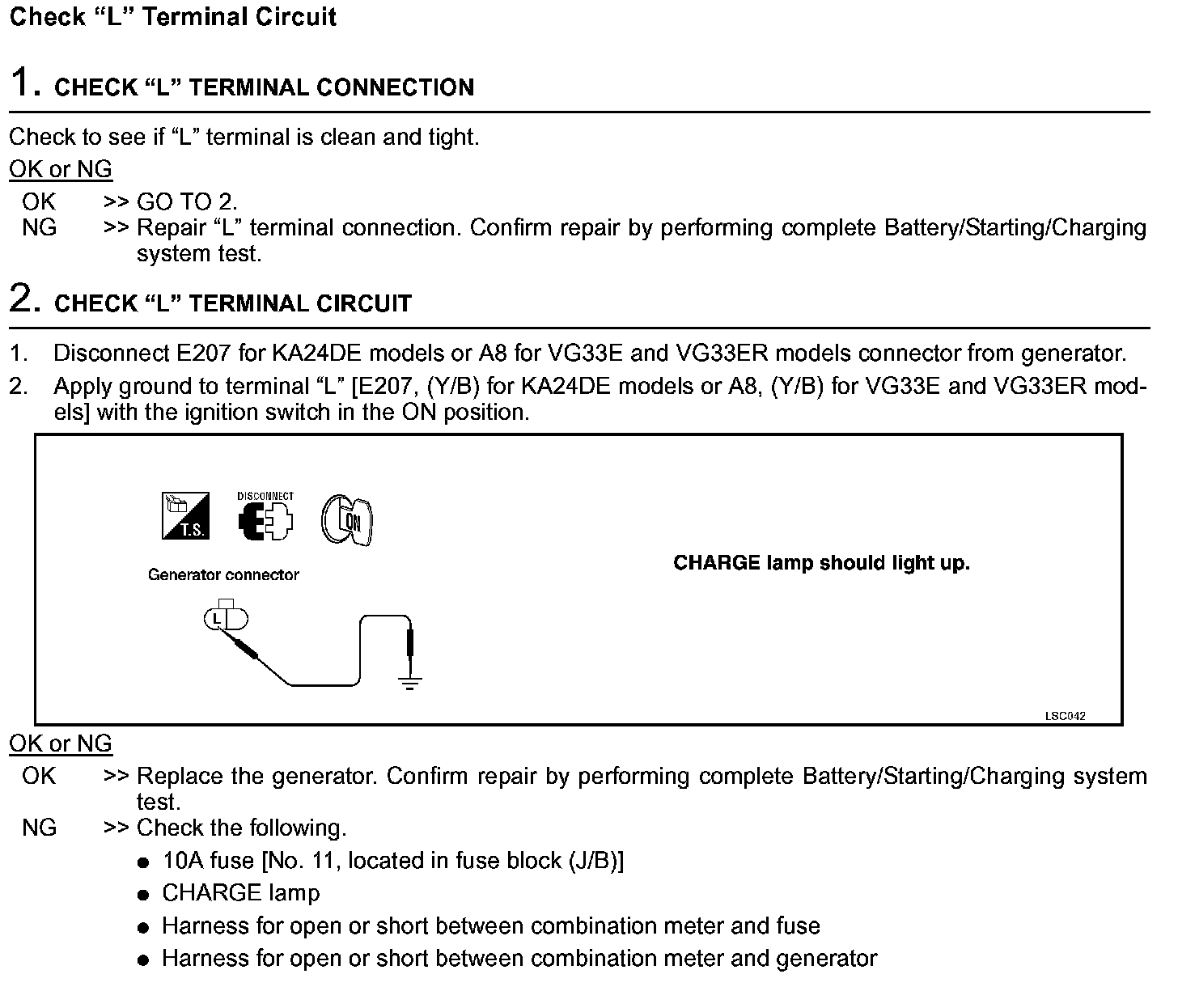

Diagnostic Procedure 1 (SC-30):
