Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> Front Suspension >> Wheel Alignment (Unladen*1)

Wheel Alignment (Unladen*1)

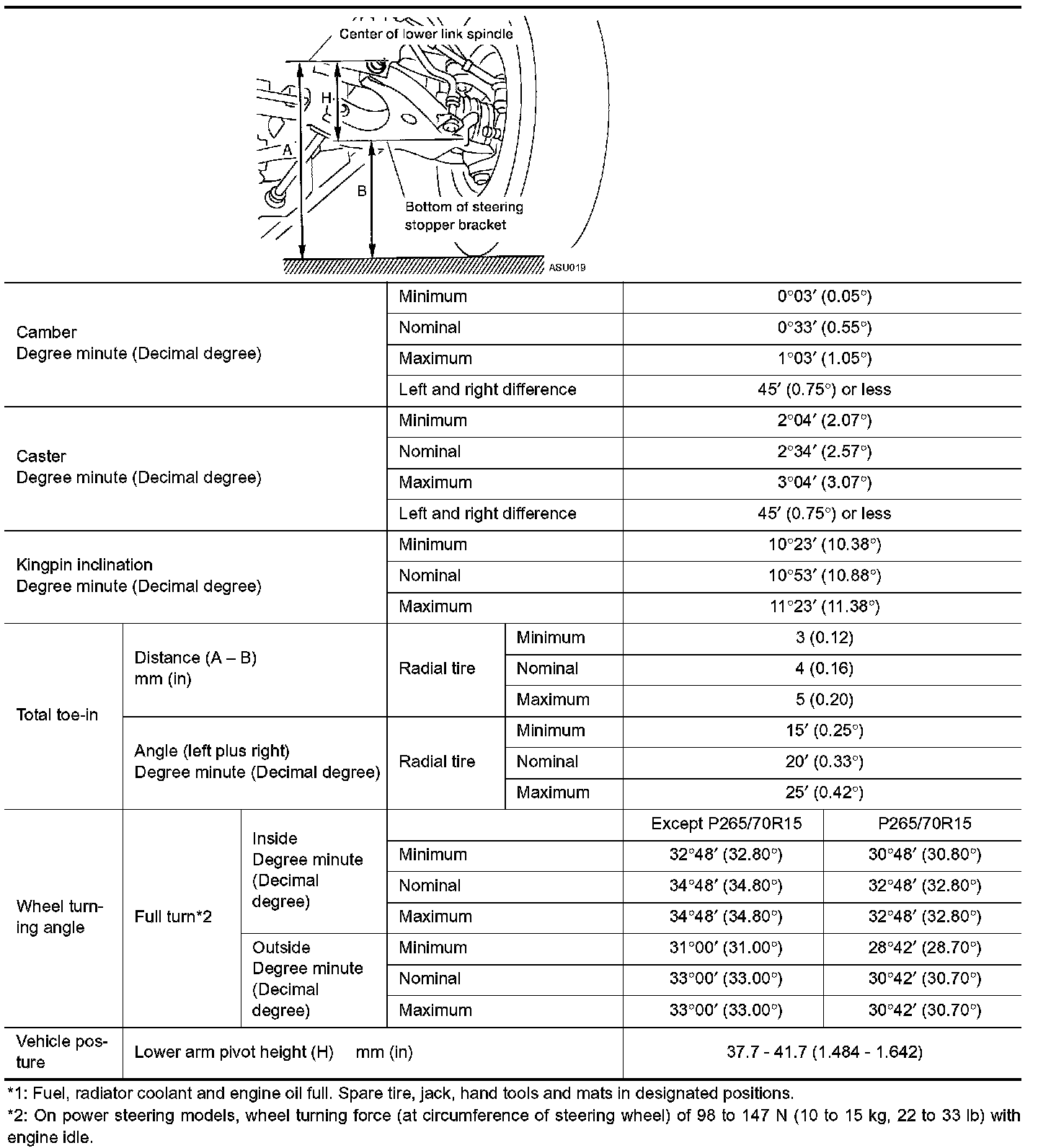

FRONT SUSPENSION - Wheel Alignment (Unladen) [2WD]:
