General Specifications

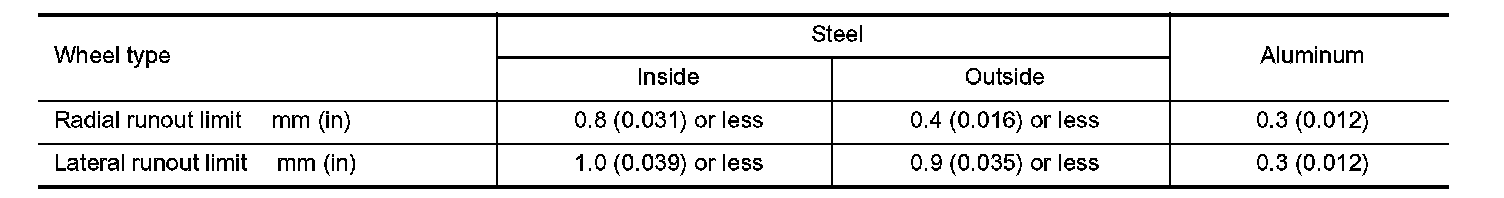

FRONT SUSPENSION - Wheel Runout Average:



FRONT SUSPENSION - Upper Ball Joint:



FRONT SUSPENSION - Lower Ball Joint:

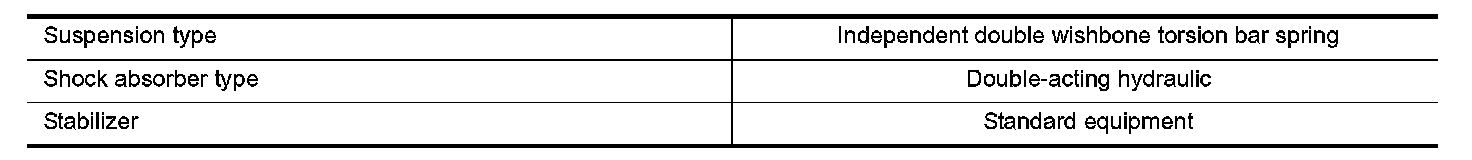

FRONT SUSPENSION / GENERAL SPECS:
