Flywheel

CLUTCH DISC, CLUTCH COVER AND FLYWHEEL:

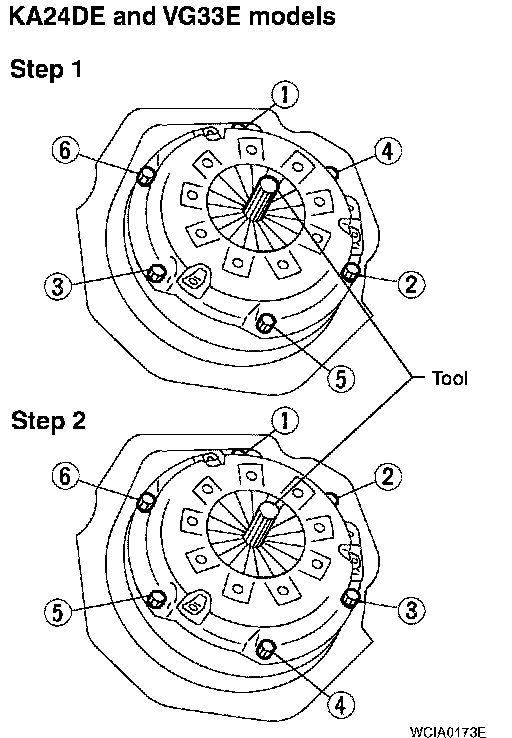

KA24DE, VG33E models
Step 1:...............................10 - 20 Nm (1.0 - 2.0 kgf-cm, 8 - 14 ft. lbs.)
Step 2:........................22 - 29 Nm (2.2 - 3.0 kgf-cm, 16 - 22 ft. lbs.)

Tool number:.........................................ST20630000 (J26366)

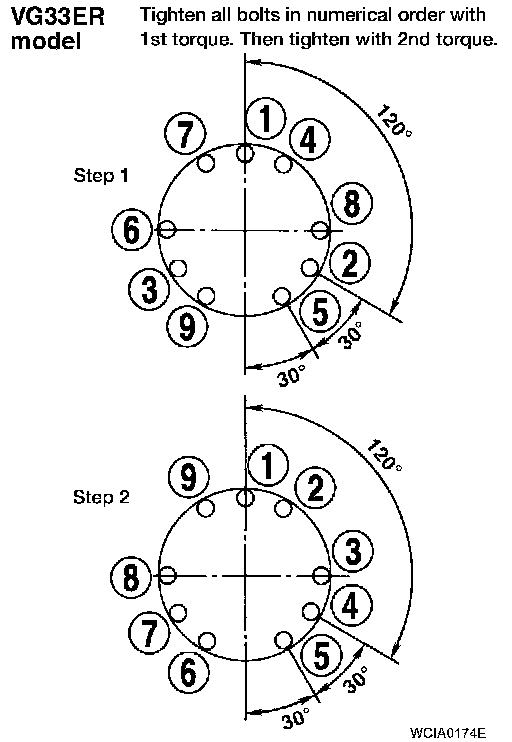

VG33ER model
Step 1:.......................10 - 20 Nm (1.0 - 2.0 kgf-cm, 8 - 14 ft. lbs.)
Step 2:..........................34.3 - 44.1 Nm (3.5 - 4.5 kgf-cm, 26 - 32 ft. lbs.)

Tool number:...........................................ST20630000 (J26366)

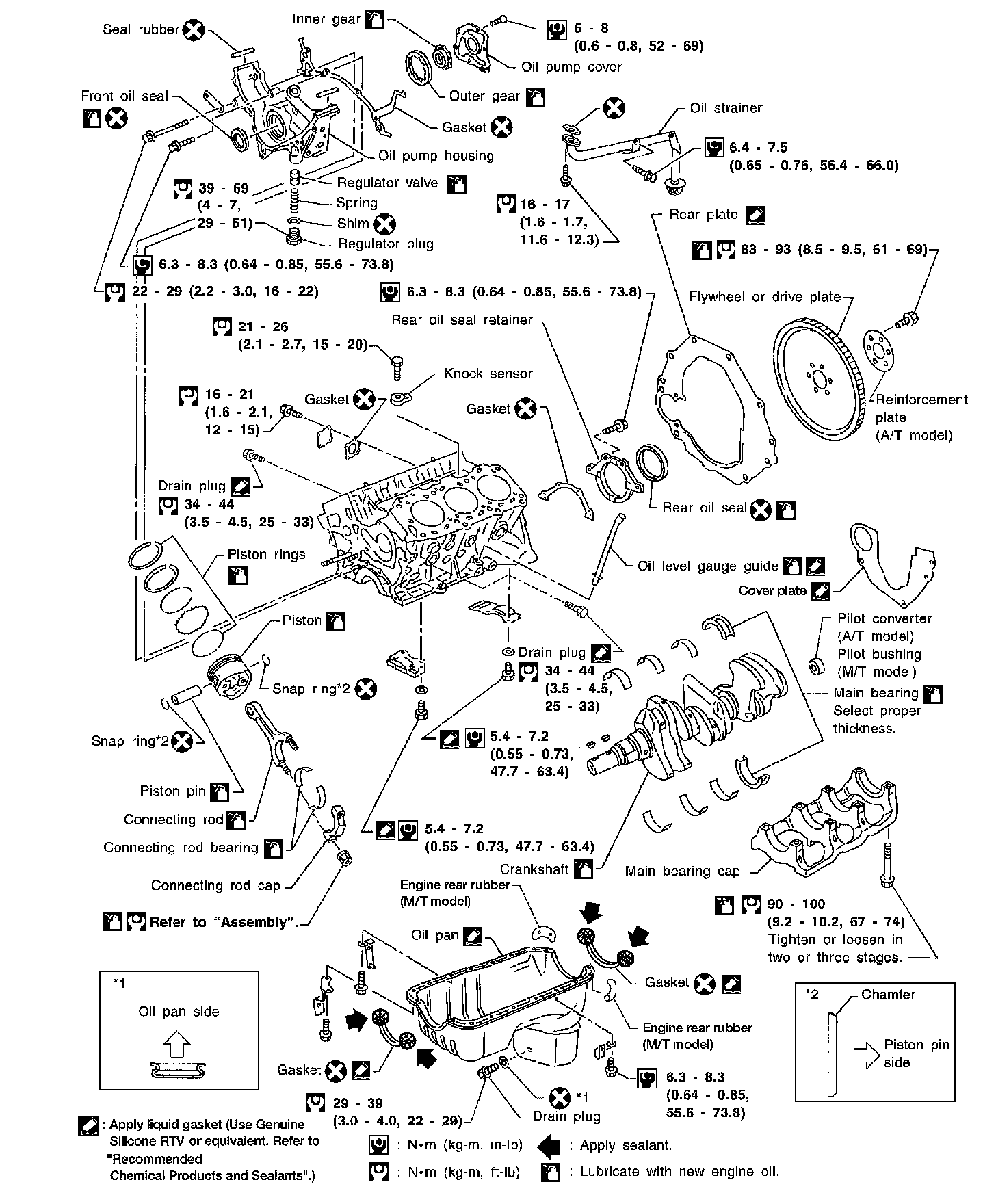

Flexplate Bolt Torque 83 - 93 Nm (8.5 - 9.5 kgm, 61 - 69 lb/ft)
