Flex Plate
Flex Plate

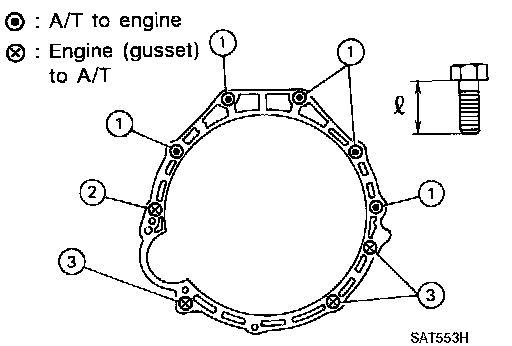

A/T Transmission Bolt Sequence:

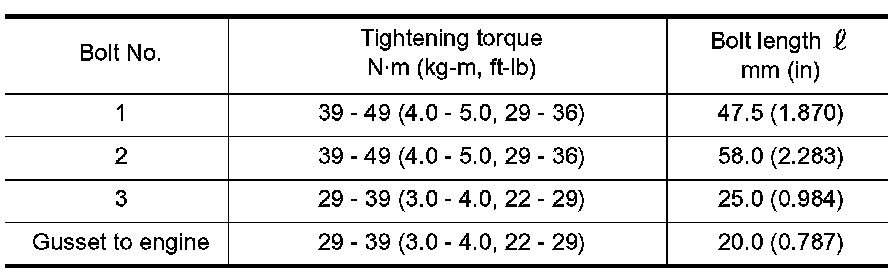

Transmission Bolts:
Flexplate Bolt Torque
83 - 93 Nm (8.5 - 9.5 kgm, 61 - 69 lb/ft)
