Exhaust Manifold Torque & Sequence



Exhaust Manifold Assembly Sequence:

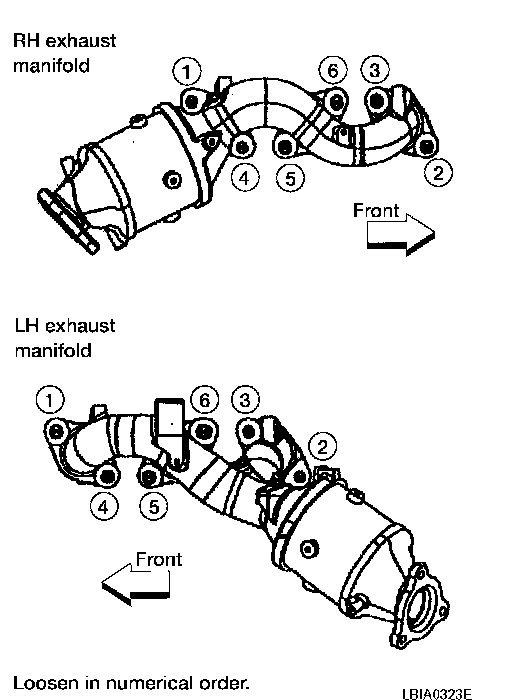

Exhaust Manifold Disassembly Sequence:






Torque 28.5-33.3 Nm (21.0-24.5 ft lbs)
