Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Oil Pan Torque & Sequence

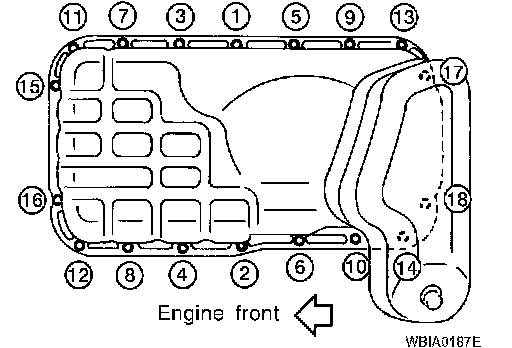

Oil Pan Torque & Sequence



NOTE: Wait at least 30 minutes after installation before refilling the engine with oil.






Torque 6.3-8.3 Nm (55.6-73.8 in lbs)
