Brake Master Cylinder

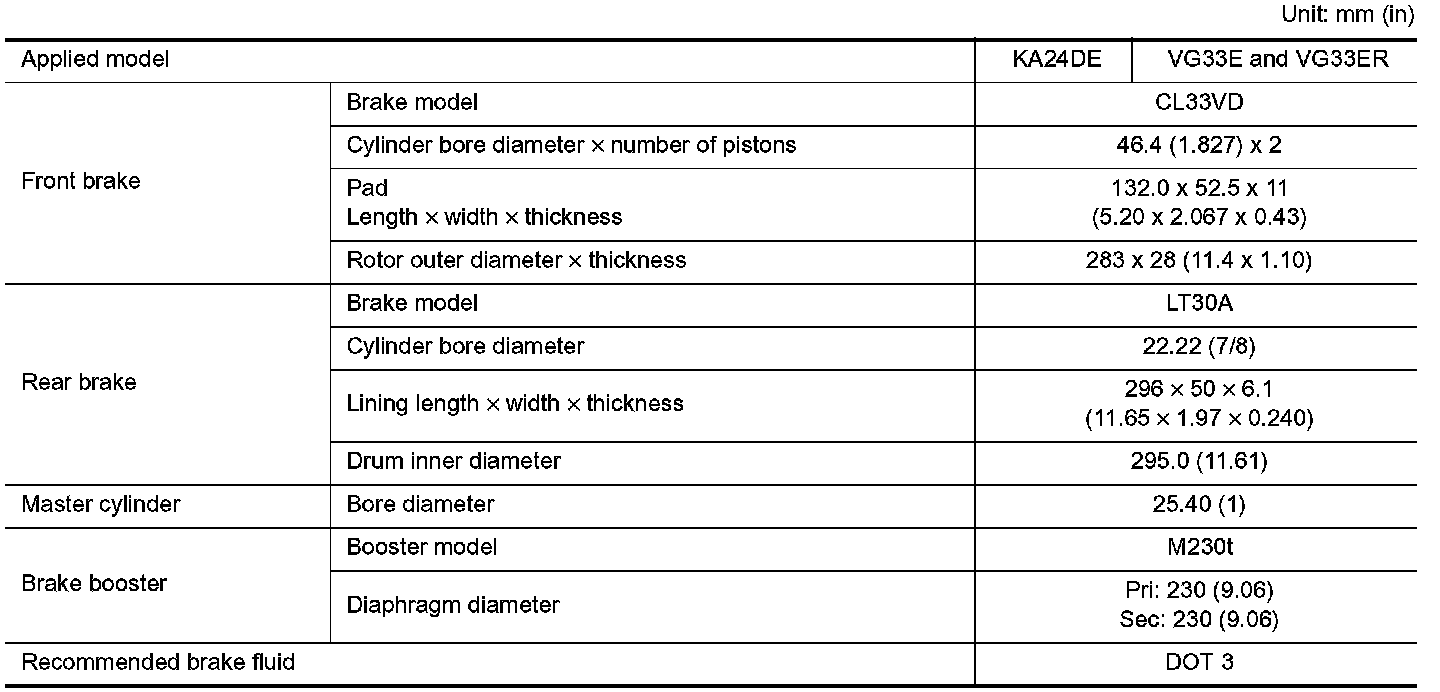

BRAKES / GENERAL SPECIFICATIONS:

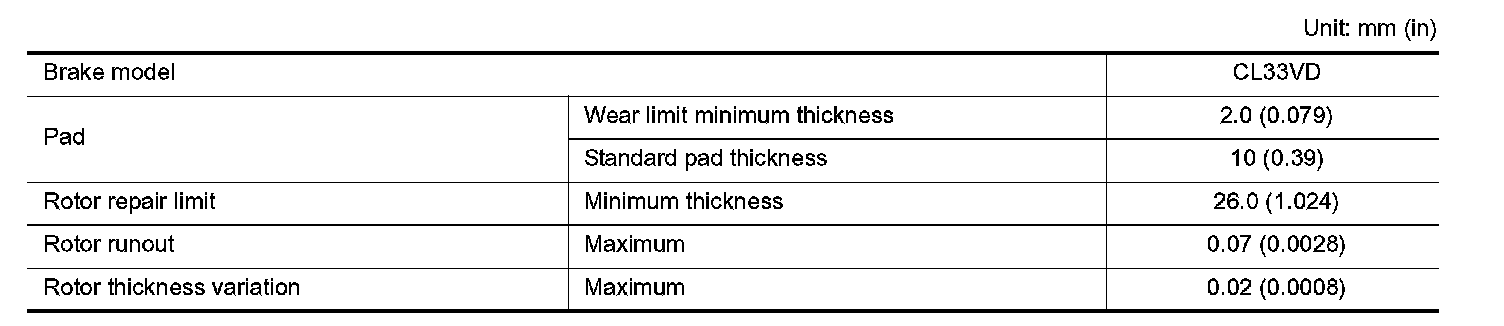

FRONT DISC BRAKE:

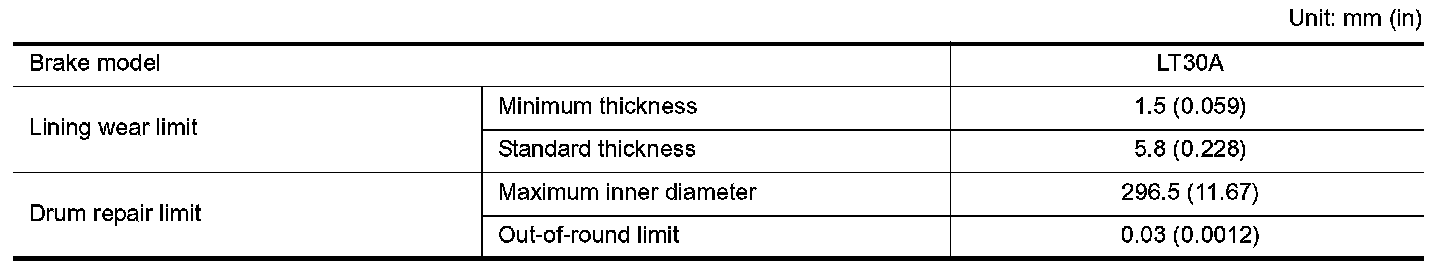

REAR DRUM BRAKE:

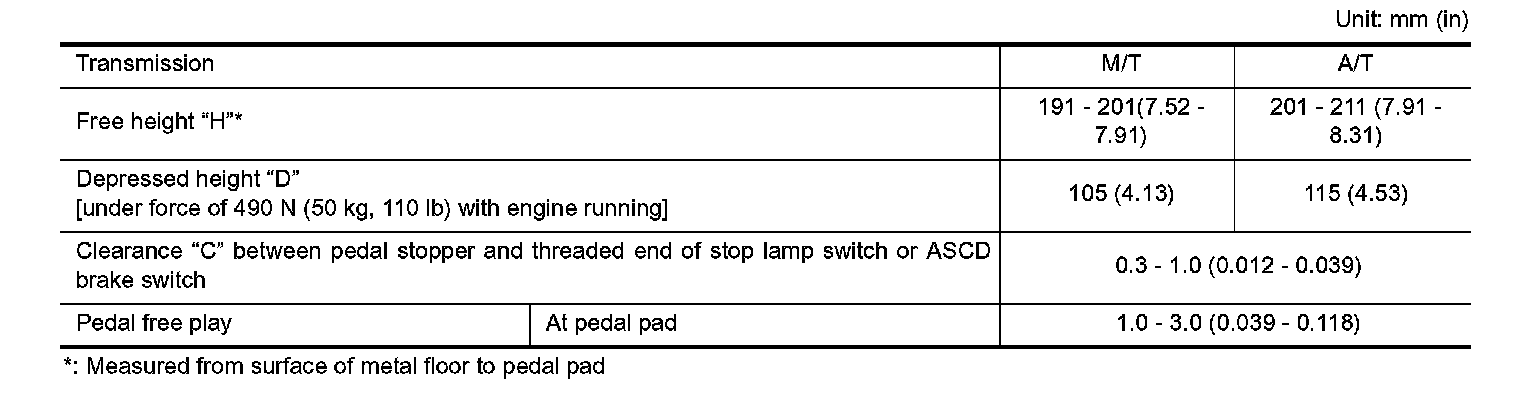

BRAKE PEDAL:

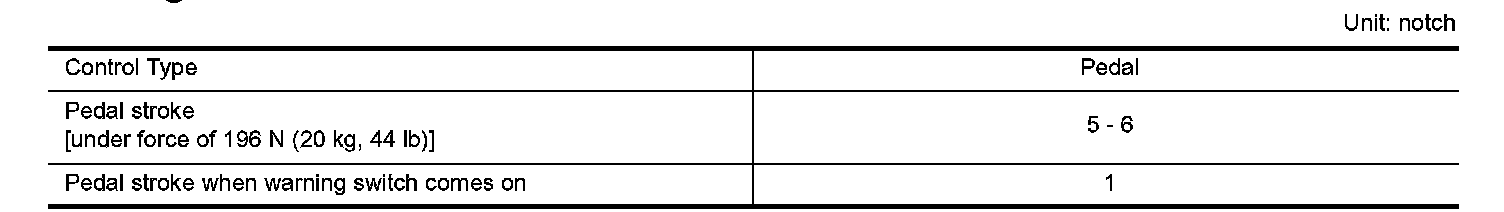

PARKING BRAKE CONTROL:

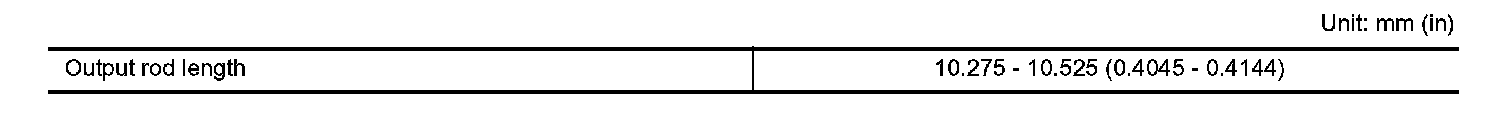

BRAKE BOOSTER:
