Gear Sensor/Switch: Testing and Inspection

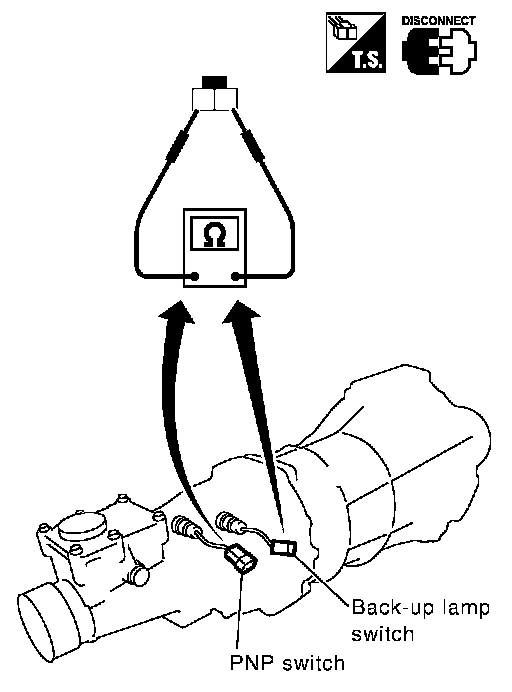

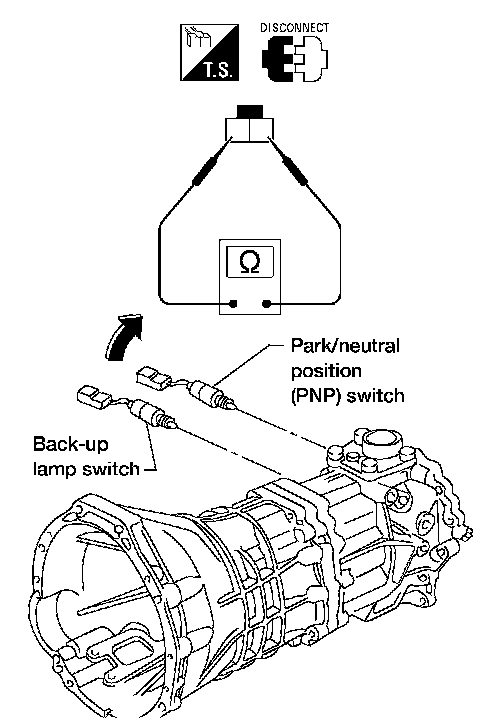

Position Switch Check / FS5R30A - Manual Trans.

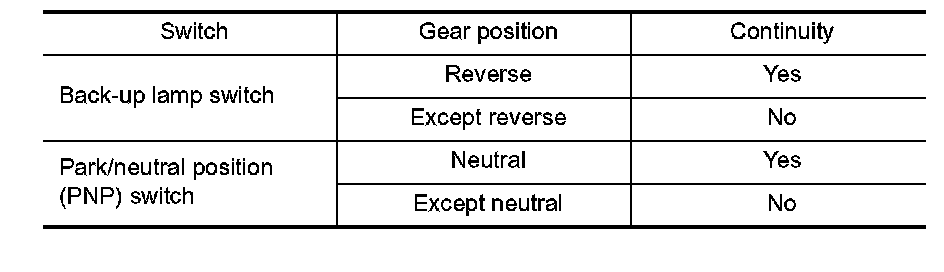

Check continuity.
