Fog/Driving Lamp Switch: Service and Repair

Replacement




For removal and installation of spiral cable, refer to "DRIVER AIR BAG MODULE AND SPIRAL CABLE". Service and Repair

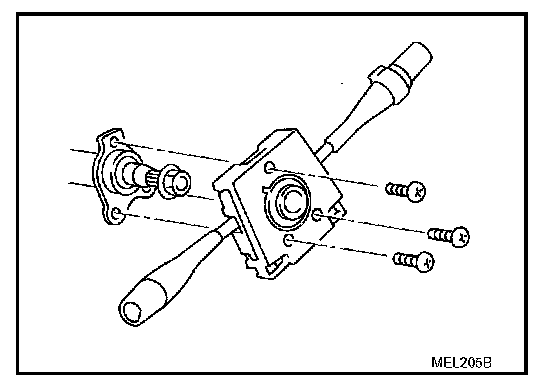

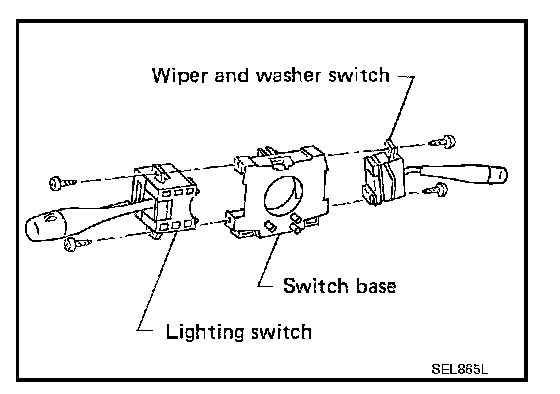

- Each switch can be replaced without removing combination switch base.




- To remove combination switch base, remove base attaching screws.

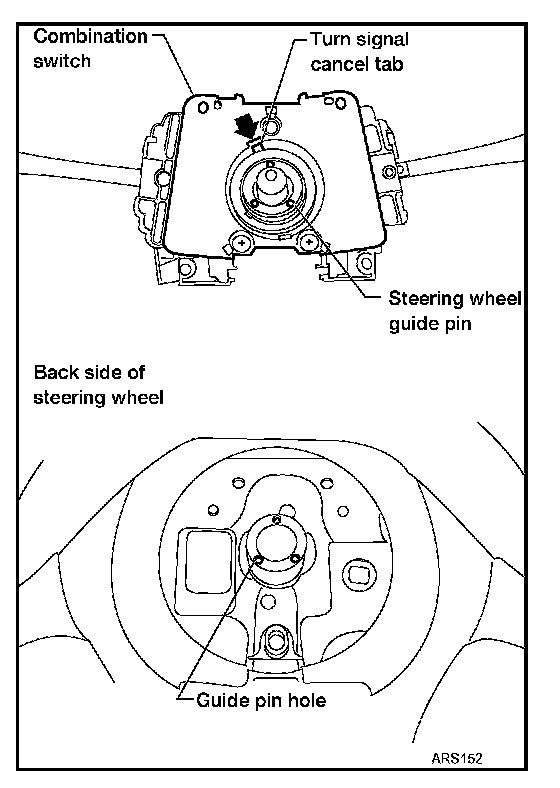

- Before installing the steering wheel, align the turn signal cancel tab with the notch of the combination switch. Refer to "DRIVER AIR BAG MODULE AND SPIRAL CABLE". Service and Repair
