SRS Warning Lamp Operation Check

SRS Operation Check

DIAGNOSTIC PROCEDURE 1
Checking Air Bag Operation by Using "AIR BAG" Warning Lamp - User Mode

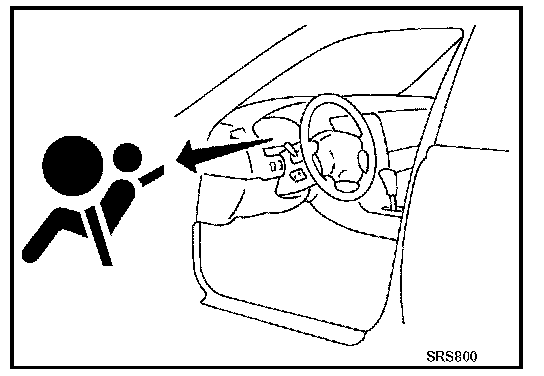

1. After turning ignition switch from "OFF" to "ON", "AIR BAG" warning lamp operates.

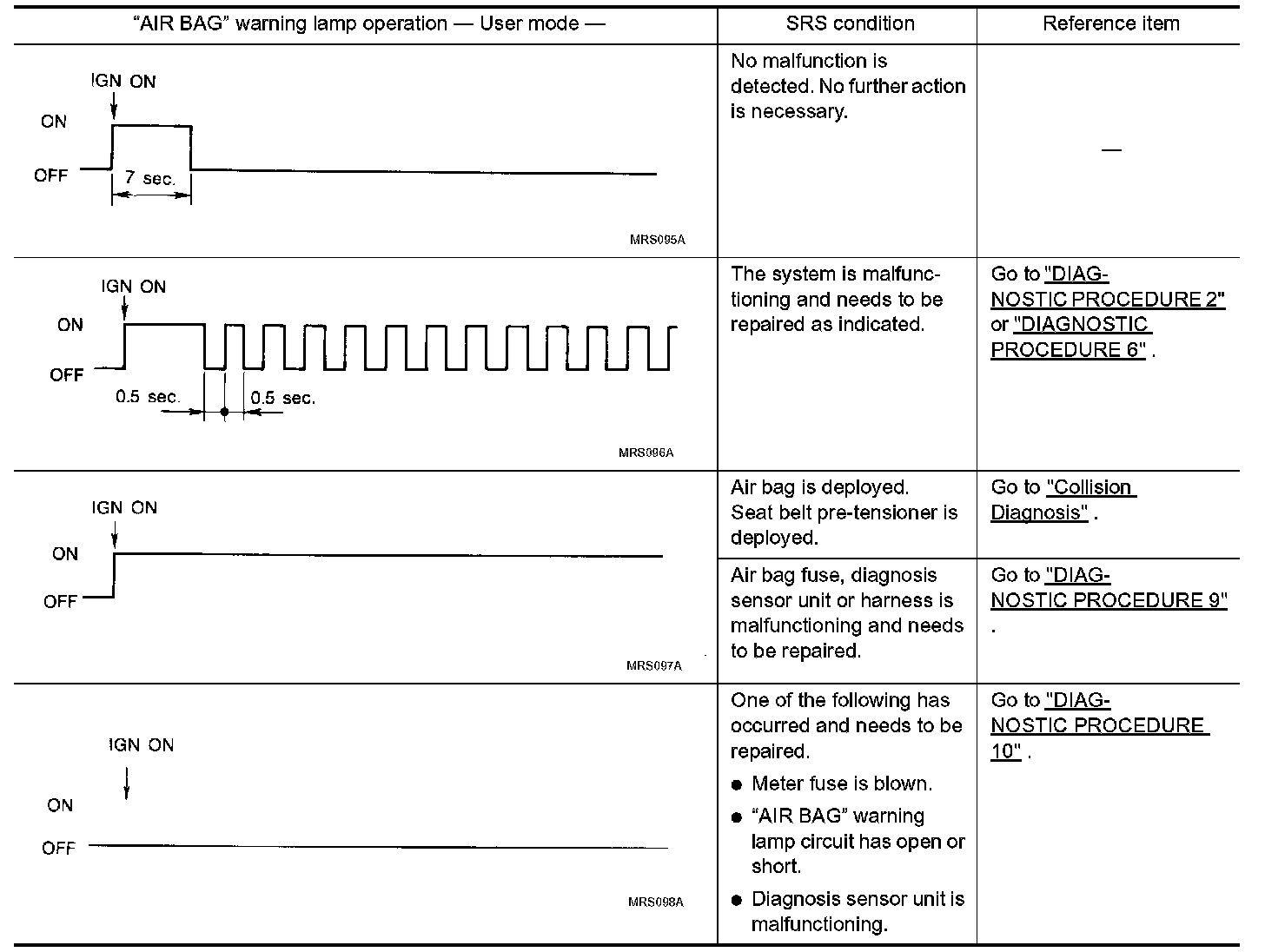

2. Compare "AIR BAG" warning lamp operation to the chart.
