Collision Diagnosis

COLLISION DIAGNOSIS

To repair the SRS, perform the following steps.

When SRS is activated in a collision:
1. Replace the air bag diagnosis sensor unit.
2. Remove the air bag modules and seat belt pre-tensioner assemblies.
3. Check the SRS components using the table shown:
- Replace any SRS components showing visible signs of damage (dents, cracks and deformation).

4. Install new air bag modules and seat belt pre-tensioner assemblies.
5. Conduct self-diagnosis using CONSULT-II or "AIR BAG" warning lamp. Refer to "SRS Operation Check". [1][2]Component Tests and General Diagnostics Ensure entire SRS operates properly.

When SRS is not activated in a collision:
1. Check the SRS components using the table shown:
- Replace any SRS components showing visible signs of damage (dents, cracks and deformation).

2. Conduct self-diagnosis using CONSULT-II or "AIR BAG" warning lamp. Refer to "SRS Operation Check". [1][2]Component Tests and General Diagnostics Ensure entire SRS operates properly.

SRS Inspection (For Frontal Collision) Part 1:

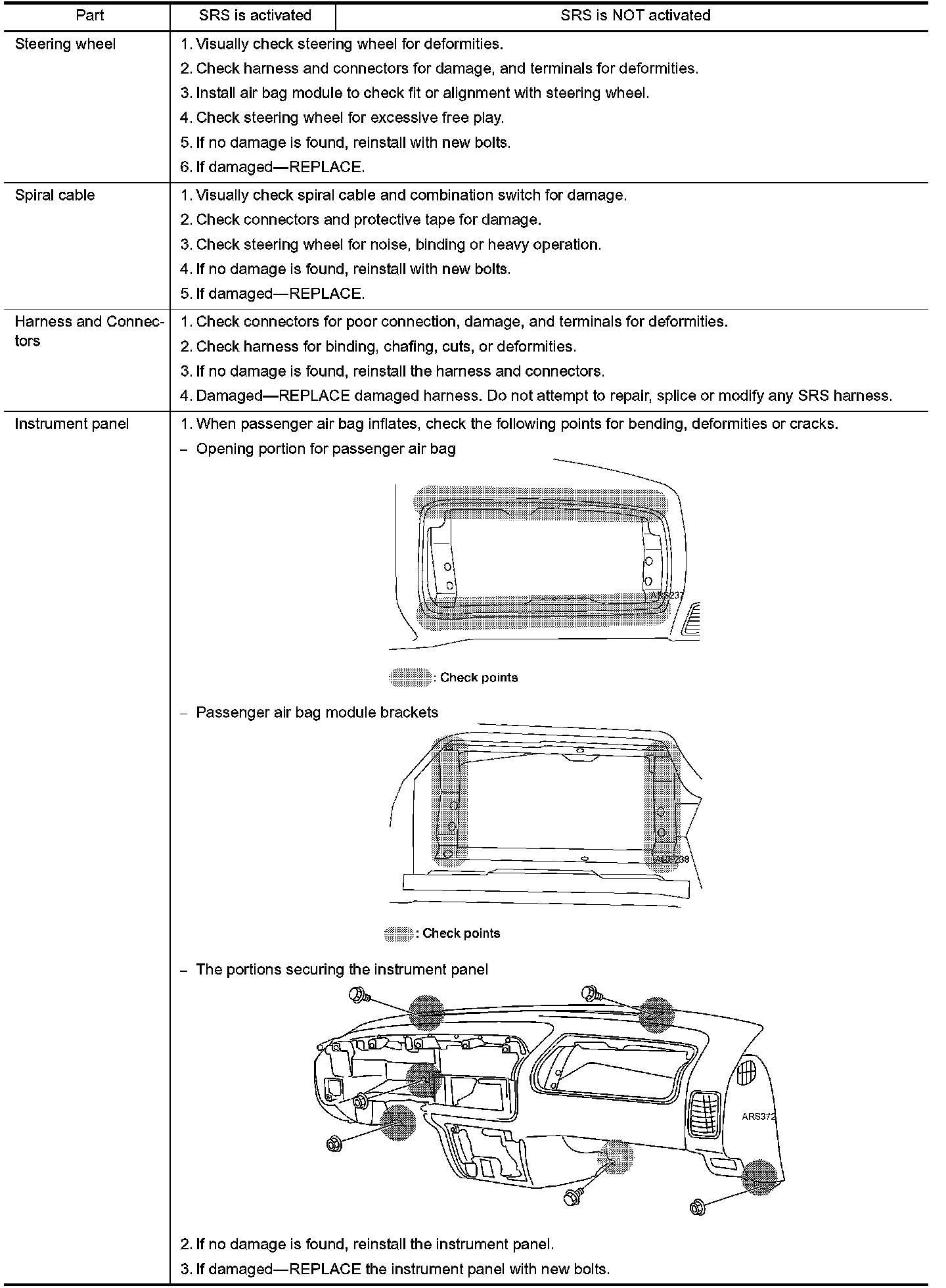

SRS Inspection (For Frontal Collision) Part 2:

SRS INSPECTION (FOR FRONTAL COLLISION)

For Side Collision
To repair the SRS, perform the following steps.

WHEN SRS IS ACTIVATED IN THE SIDE COLLISION
1. Replace the following components:
- Side curtain air bag module (on the side on which side curtain air bag is activated)
- Diagnosis sensor unit
- (LH and RH) side air bag (satellite) sensors

2. Check the SRS components and the related parts using the table shown.
- Replace any SRS components and the related parts showing visible signs of damage (dents, cracks, deformation).

3. Conduct self-diagnosis using CONSULT-II and "AIR BAG" warning lamp. Refer to "SRS Operation Check" for details. [1][2]Component Tests and General Diagnostics Ensure entire SRS operates properly.

WHEN SRS IS NOT ACTIVATED IN THE SIDE COLLISION
1. Check the SRS components and the related parts using the table shown.
- replace any SRS components and any related parts showing visible signs of damage (dents, cracks, deformation).

2. Conduct self-diagnosis using CONSULT-II and "AIR BAG" warning lamp. Refer to "SRS Operation Check" for details. [1][2]Component Tests and General Diagnostics Ensure entire SRS operates properly.

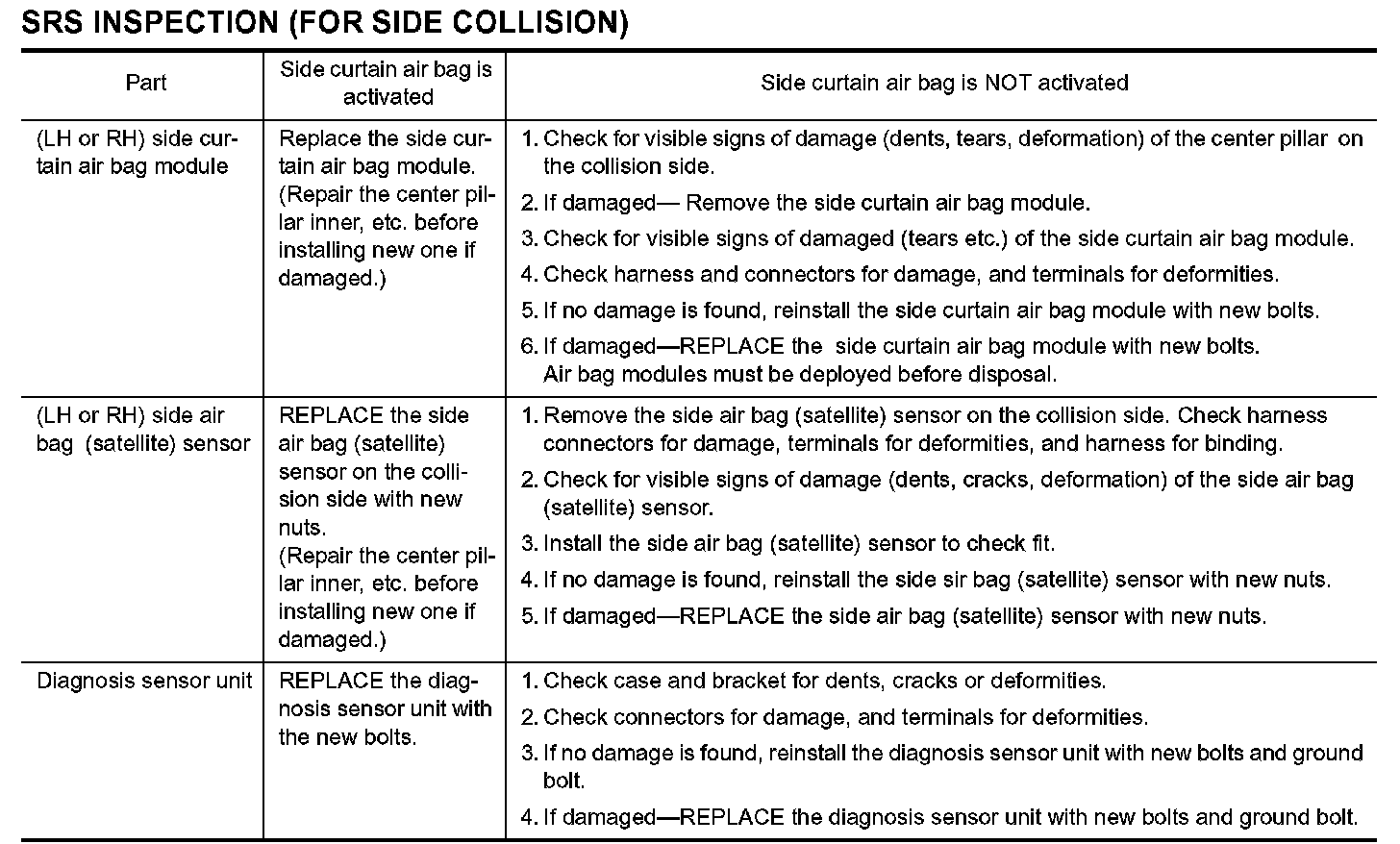

SRS Inspection (For Side Collision) Part 1:

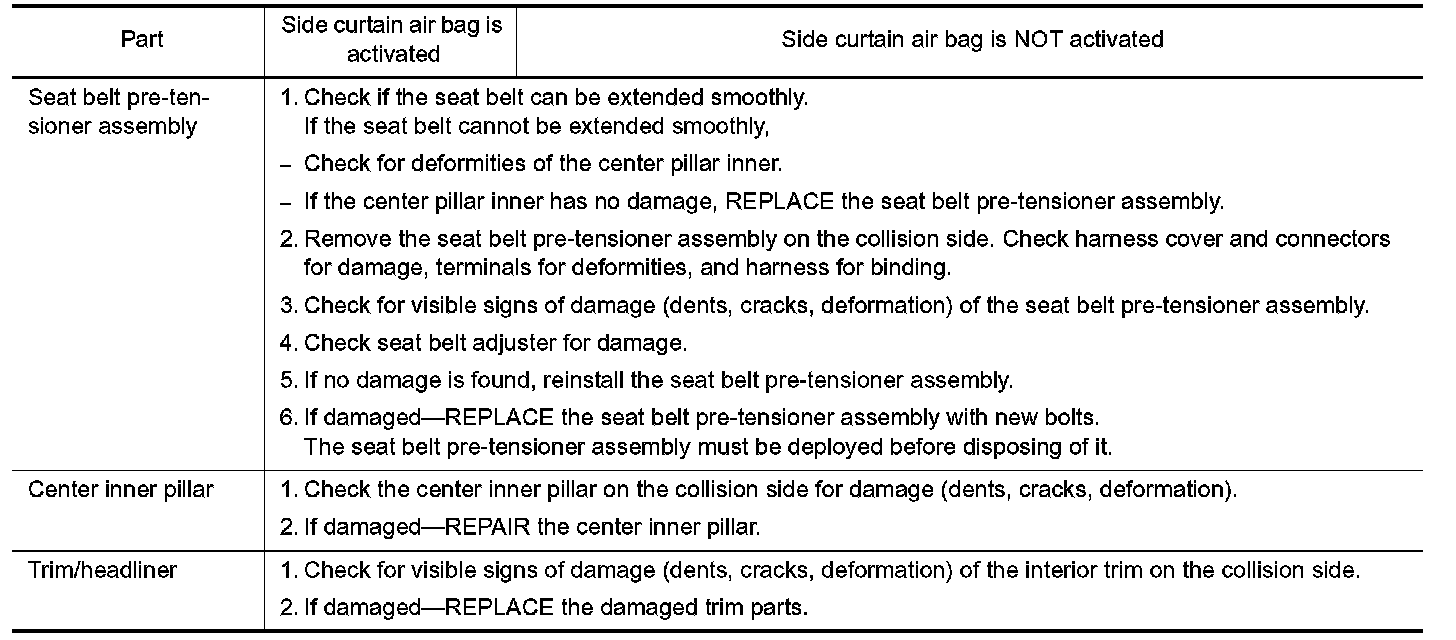

SRS Inspection (For Side Collision) Part 2:

SRS INSPECTION (FOR SIDE COLLISION)
