Diagnostic Procedure 2

Inspecting SRS malfunctioning parts by using CONSULT-II - Diagnosis mode




1. Turn ignition switch "OFF".

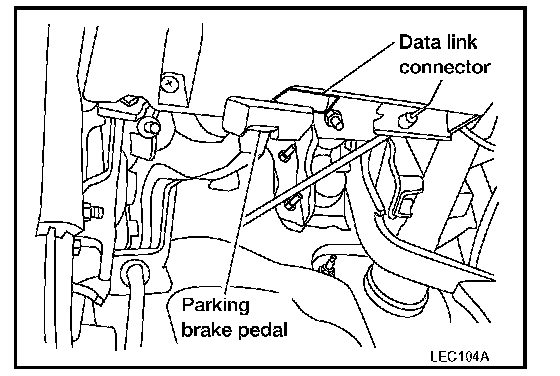

2. Connect "CONSULT-II" to data link connector.
3. Turn ignition switch "ON".

4. Touch "START".

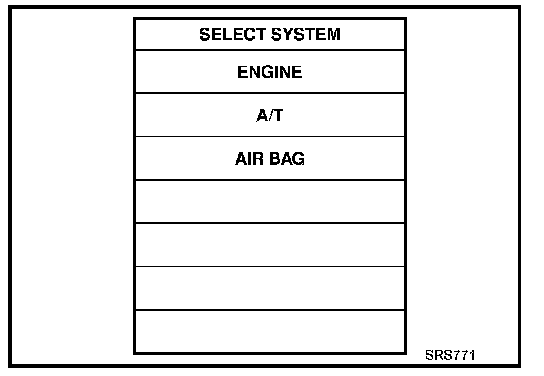

5. Touch "AIR BAG".

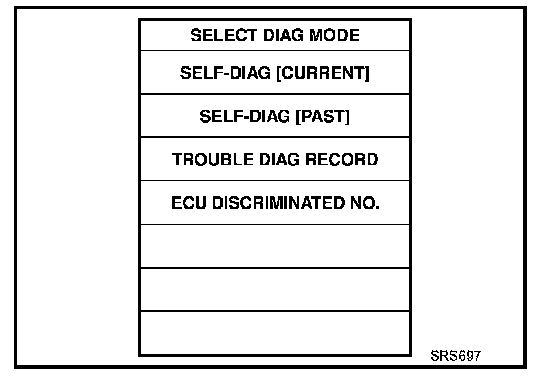

6. Touch "SELF-DIAG [CURRENT]".

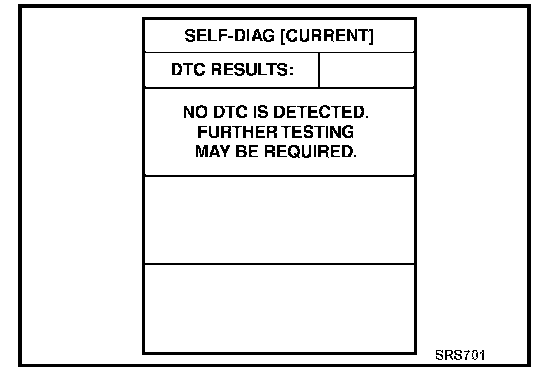

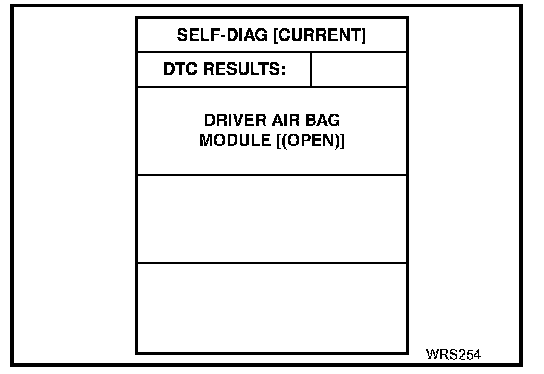

7. Diagnostic codes are displayed on "SELF-DIAG [CURRENT]".

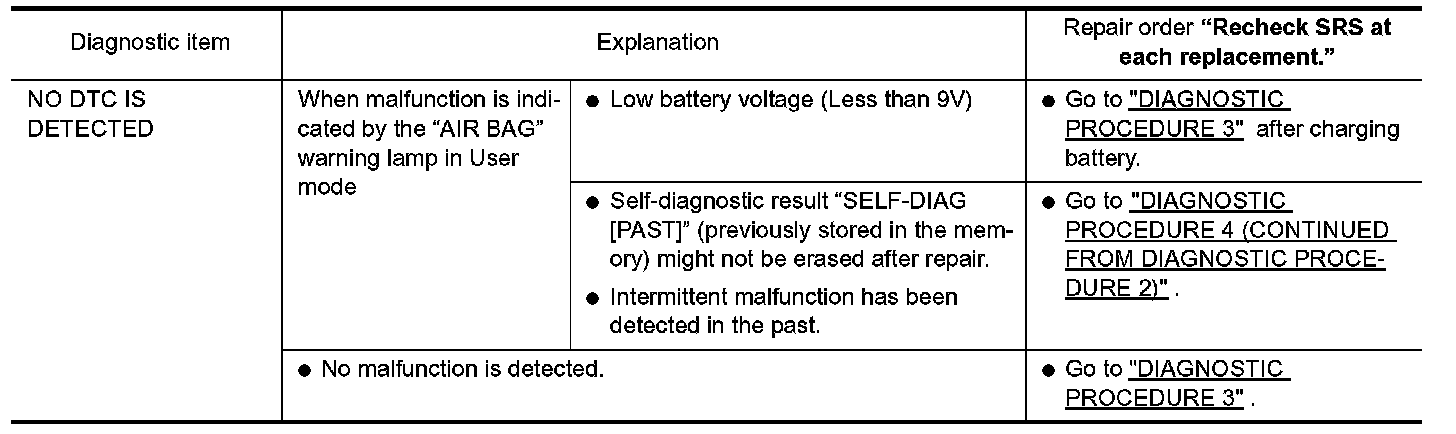

If no malfunction is detected on "SELF-DIAG [CURRENT]" even though malfunction is detected in "SRS Operation Check", check the battery voltage.

If the battery voltage is less than 9 V, charge the battery. Then go to "DIAGNOSTIC PROCEDURE 3"

If the battery voltage is OK, refer to "DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM DIAGNOSTIC PROCEDURE 2)" to diagnose the following cases:
- Self-diagnostic result "SELF-DIAG [PAST]" (previously stored in the memory) might not be erased after repair.
- The SRS system malfunctions intermittently.

8. Touch "COPY".
9. Compare diagnostic codes to "CONSULT-II Diagnostic Code Chart". Refer to"CONSULT-II Diagnostic Code Chart ("SELF-DIAG [CURRENT]")"

10. Touch "BACK" key of CONSULT-II until "SELECT SYSTEM" appears in order to return to User mode from Diagnosis mode.
11. Turn ignition switch "OFF", then turn off and disconnect CONSULT-II, and disconnect both battery cables.
12. Repair the system as outlined by the "Repair order" in "CONSULT-II Diagnostic Code Chart", that corresponds to the self-diagnostic result. For replacement procedure of component parts, refer to "Removal and Installation"
13. After repairing the system, refer to "DIAGNOSTIC PROCEDURE 3" for final checking. Diagnostic Procedure 3

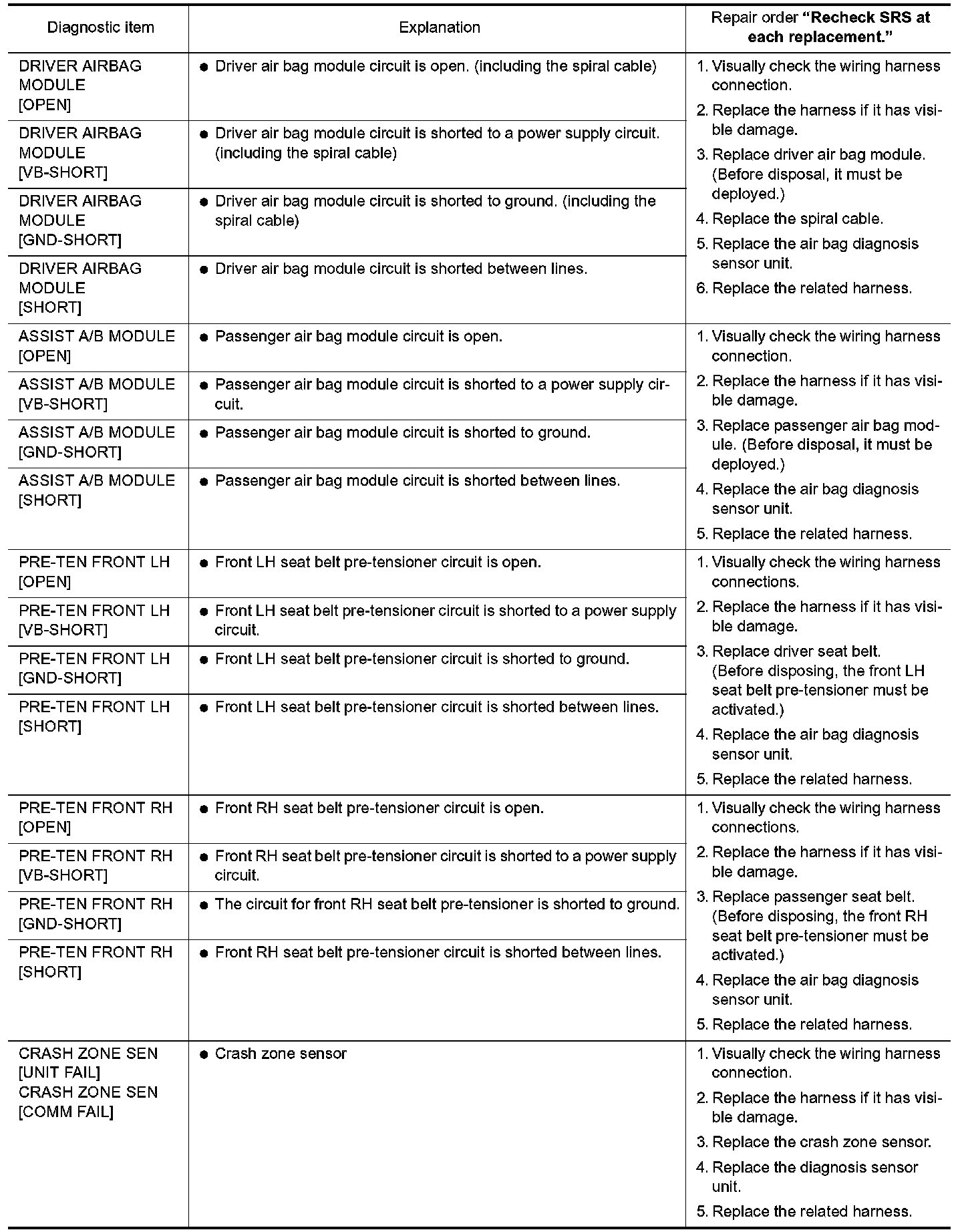

Consult-II Diagnostic Code Chart ("Self-Diag [Current]") Part 1:

CONSULT-II Diagnostic Code Chart ("Self-Diag [Current]") Part 2:

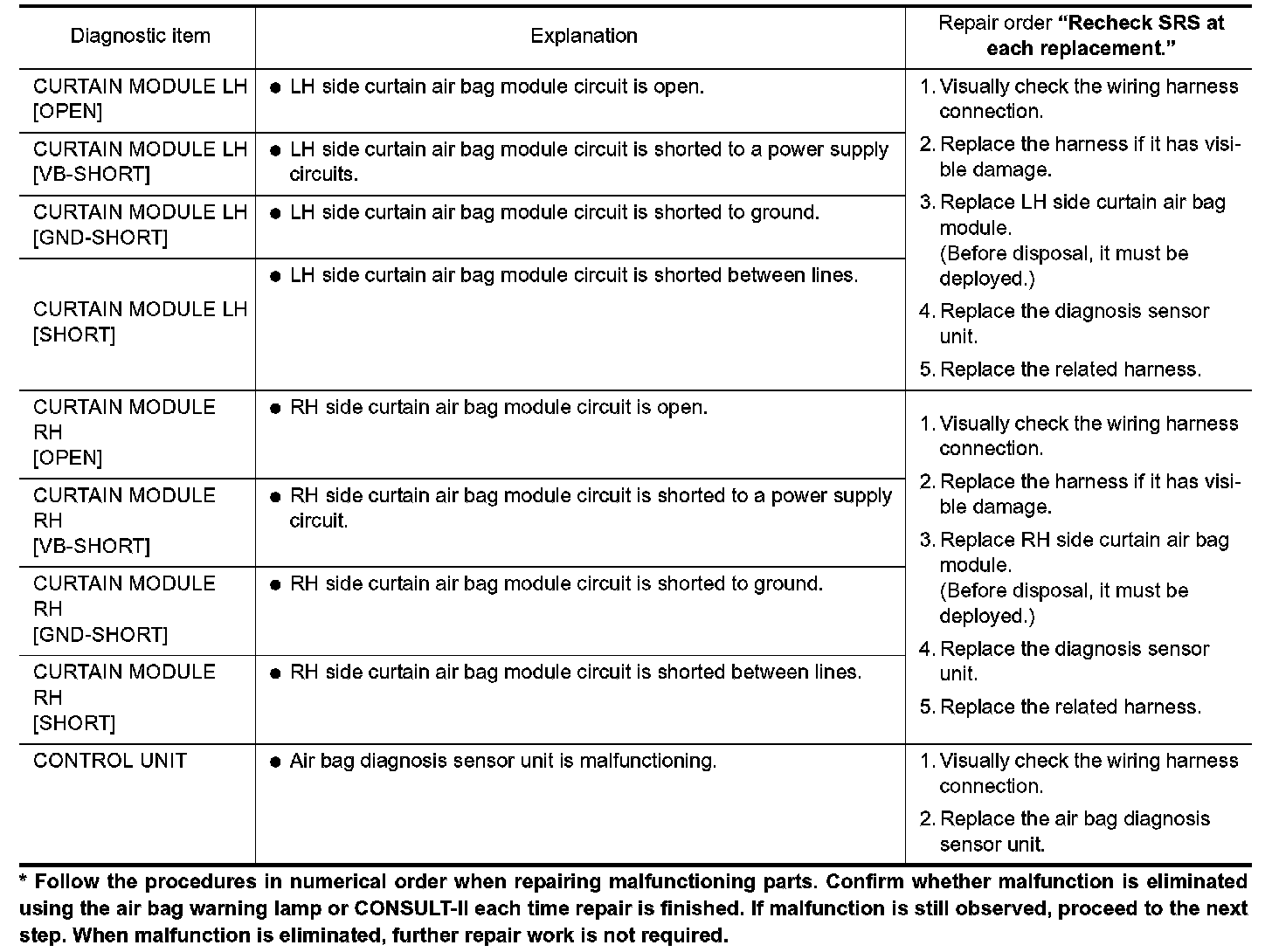

CONSULT-II Diagnostic Code Chart ("Self-Diag [Current]") Part 3:

Consult-II Diagnostic Code Chart ("Self-Diag [Current]")
