Pinout Values and Diagnostic Parameters

TCM Terminals and Reference Value

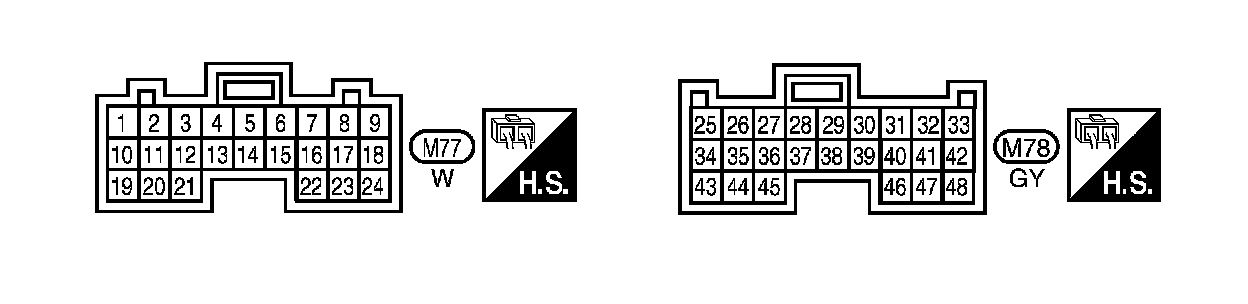

TCM HARNESS CONNECTOR TERMINAL LAYOUT:

PREPARATION

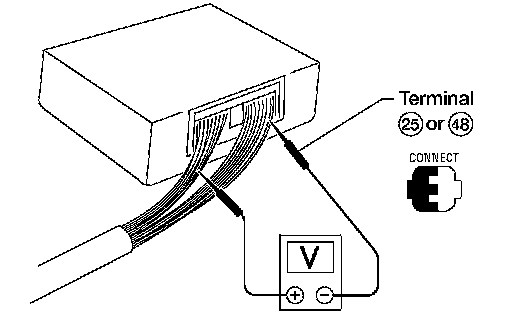

Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".


TCM INSPECTION TABLES

Step 1 Of 4:

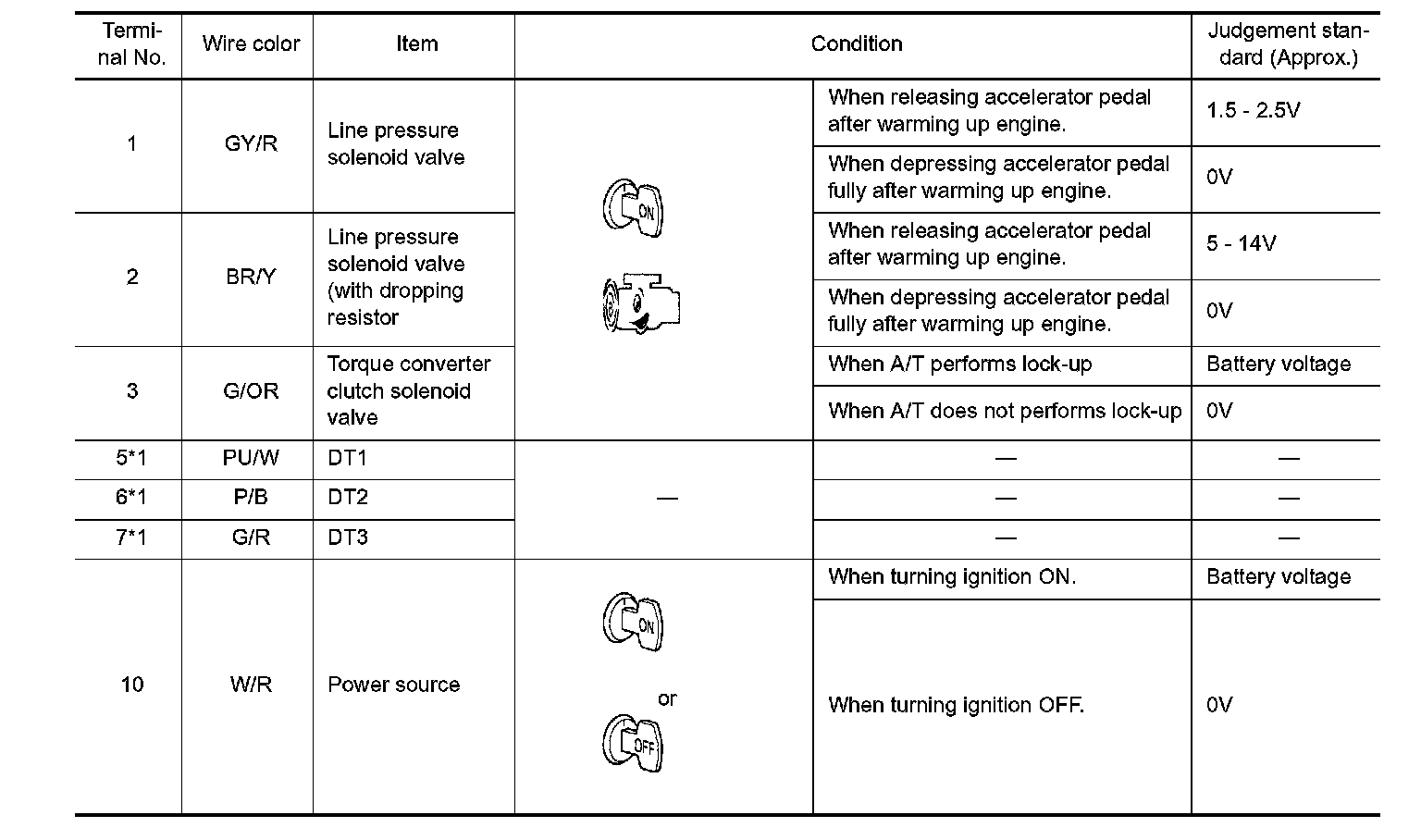

Step 2 Of 4:

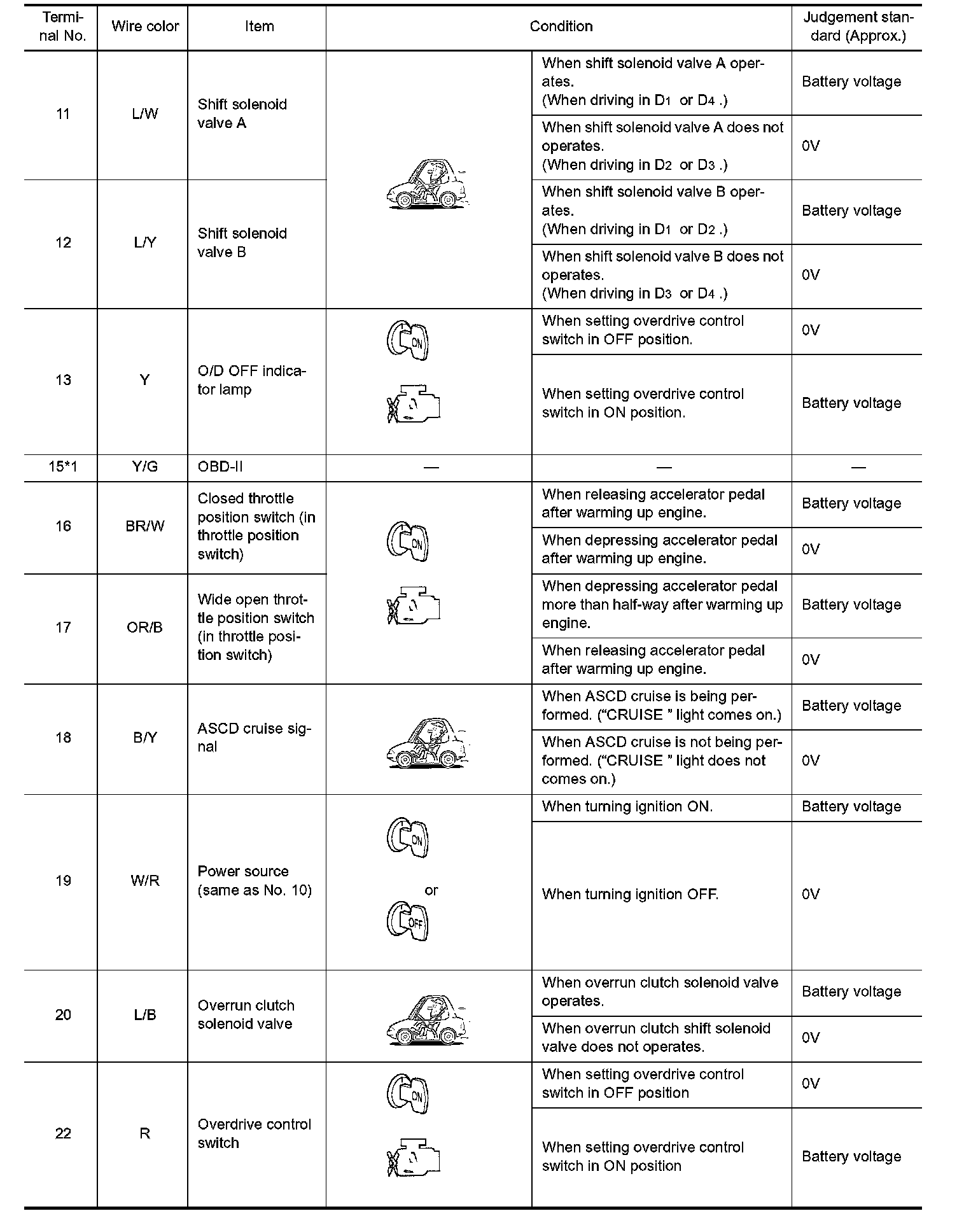

Step 3 Of 4:

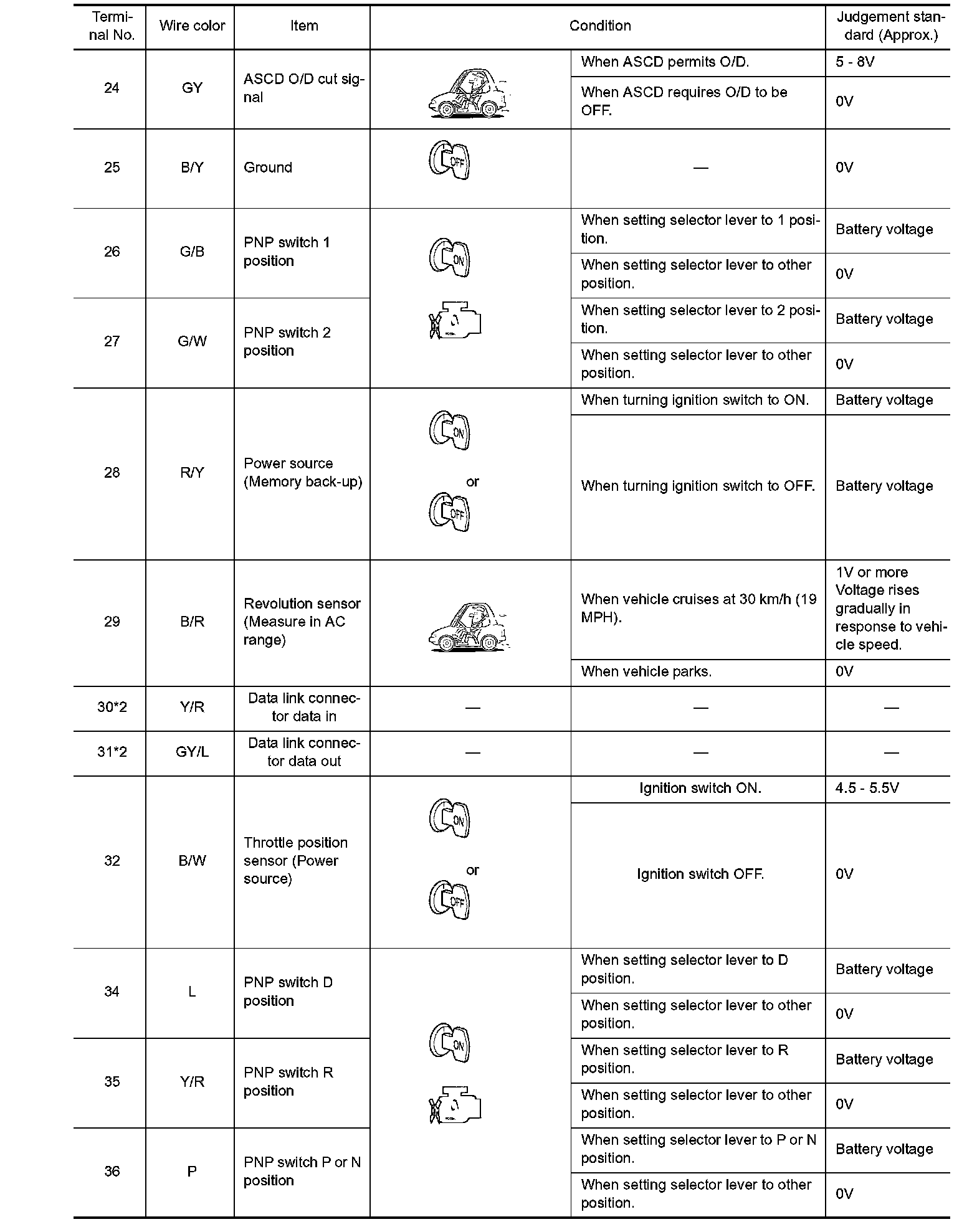

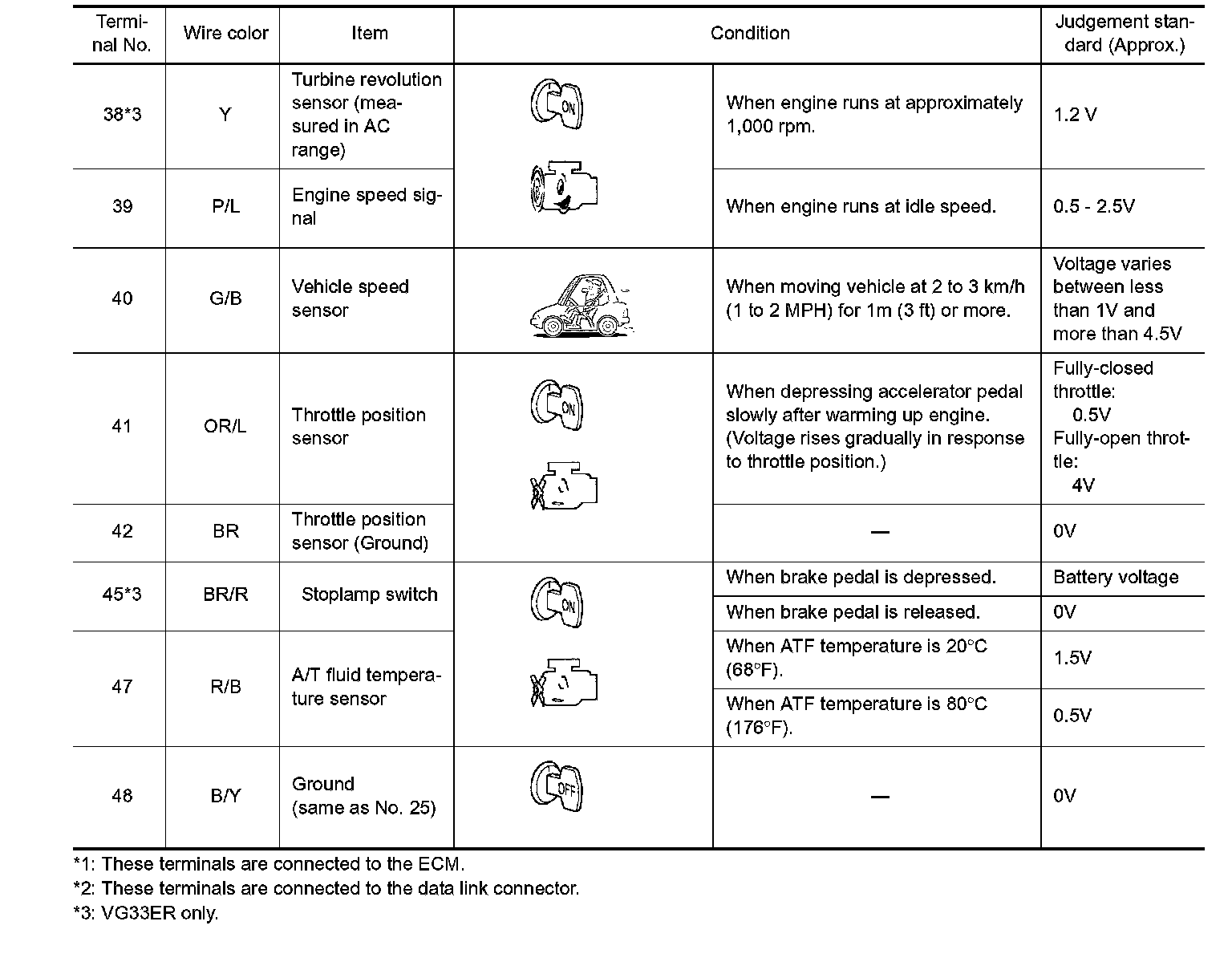

Step 4 Of 4:

(Data are reference values.)
