Cruise Test ... Part 2

Cruise Test...........................Part 2

1. CHECK STARTING GEAR (D1) POSITION
1. Confirm overdrive control switch is in ON position.
2. Confirm selector lever is in D position.

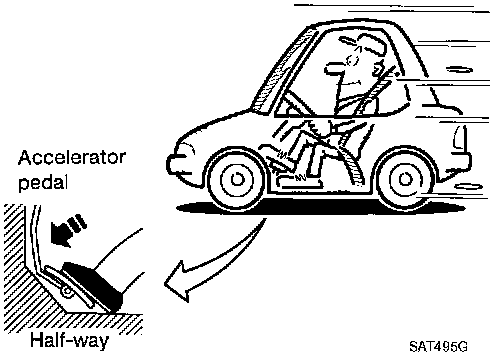

3. Accelerate vehicle by half throttle again.







4. Does vehicle start from D1?
Read gear position.

Yes or No?

Yes >> GO TO 2.

No >> Go to "16. Vehicle Does Not Start From D1" Vehicle Does Not Start From D1.

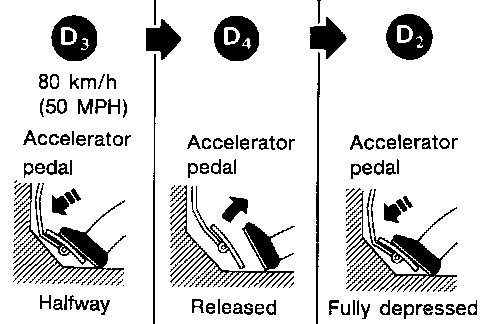

2. CHECK SHIFT UP AND SHIFT DOWN (D3 TO D4 TO D2)
1. Accelerate vehicle to 80 km/h (50 MPH) as shown in illustration.
2. Release accelerator pedal and then quickly depress it fully.
3. Does A/T shift from D4 to D2 as soon as accelerator pedal is depressed fully?
Read gear position and throttle position.

Yes or No?

Yes >> GO TO 3.

No >> Go to "9. A/T Does Not Shift: D1 -> D2 Or Does Not Kickdown: D4 -> D2" A/T Does Not Shift: D->D2 or Does Not Kickdown: D4->D2.

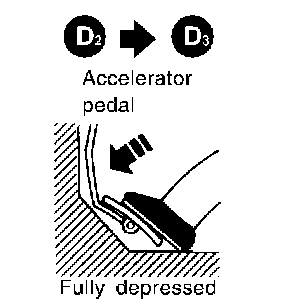

3. CHECK SHIFT UP (D2 TO D3)
Does A/T shift from D2 to D3 at the specified speed?

VEHICLE SPEED WHEN SHIFTING GEARS THROTTLE POSITION:

VEHICLE SPEED WHEN PERFORMING AND RELEASING LOCK-UP:

Read gear position, throttle position and vehicle speed.
Specified speed when shifting from D2 to D3.


Yes or No?

Yes >> GO TO 4.

No >> Go to "10. A/T Does Not Shift: D2 -> D3" A/T Does Not Shift: D2->D3.

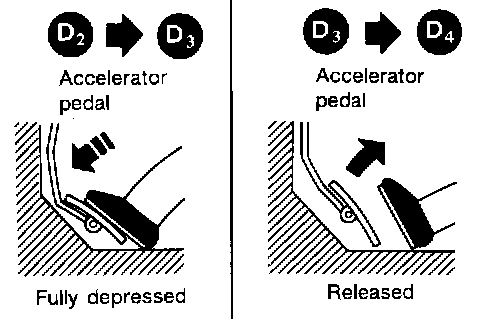

4. CHECK SHIFT UP (D3 TO D4) AND ENGINE BRAKE
Release accelerator pedal after shifting from D2 to D3 .
Does A/T shift from D3 to D4 and does vehicle decelerate by engine brake?
Read gear position, throttle position and vehicle speed.

Yes or No?

Yes >>
1. Stop vehicle.
2. Go to "Cruise Test - Part 3" Cruise Test ... Part 3.

No >> Go to "11. A/T Does Not Shift: D3 -> D4" A/T Does Not Shift: D3->D4.
