Line Pressure Test

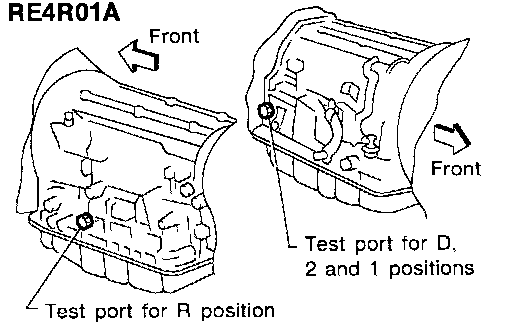

LINE PRESSURE TEST PORTS:

NOTE: Always replace line pressure plugs as they are self-sealing bolts.







LINE PRESSURE TEST PROCEDURE
1. Check A/T fluid and engine oil levels. If necessary, add fluid and oil.
2. Drive vehicle for approximately 10 minutes or until engine oil and ATF reach operating temperature.

ATF operating temperature:..................50 - 80°C (122 - 176°F)

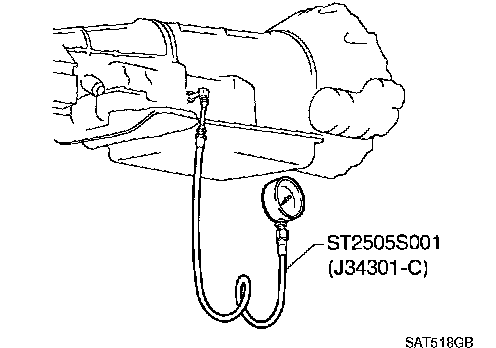

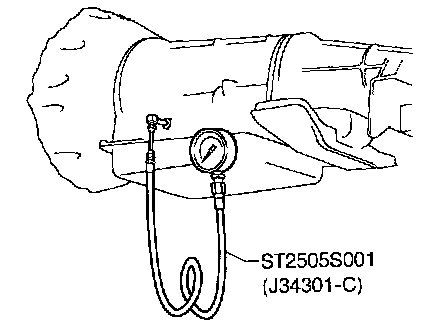

3. Install pressure gauge to corresponding line pressure port.

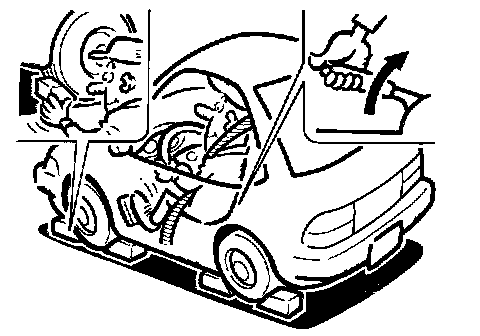

4. Set parking brake and block wheels.

JUDGEMENT OF LINE PRESSURE TEST:

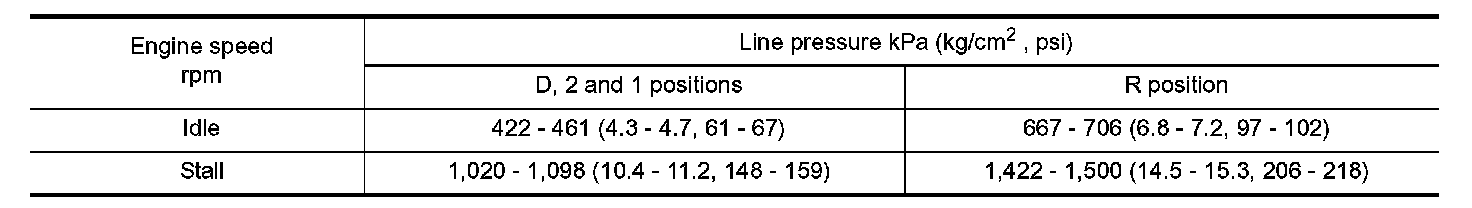

Line Pressure:

Continue to depress brake pedal fully while line pressure test is being performed at stall speed.

5. Start engine and measure line pressure at idle and stall speed.
When measuring line pressure at stall speed, follow the stall test procedure.
