Symptom Related Diagnostic Procedures
Diagnostic Procedure Step 1 - 2:
Diagnostic Procedure Step 3 - 5:

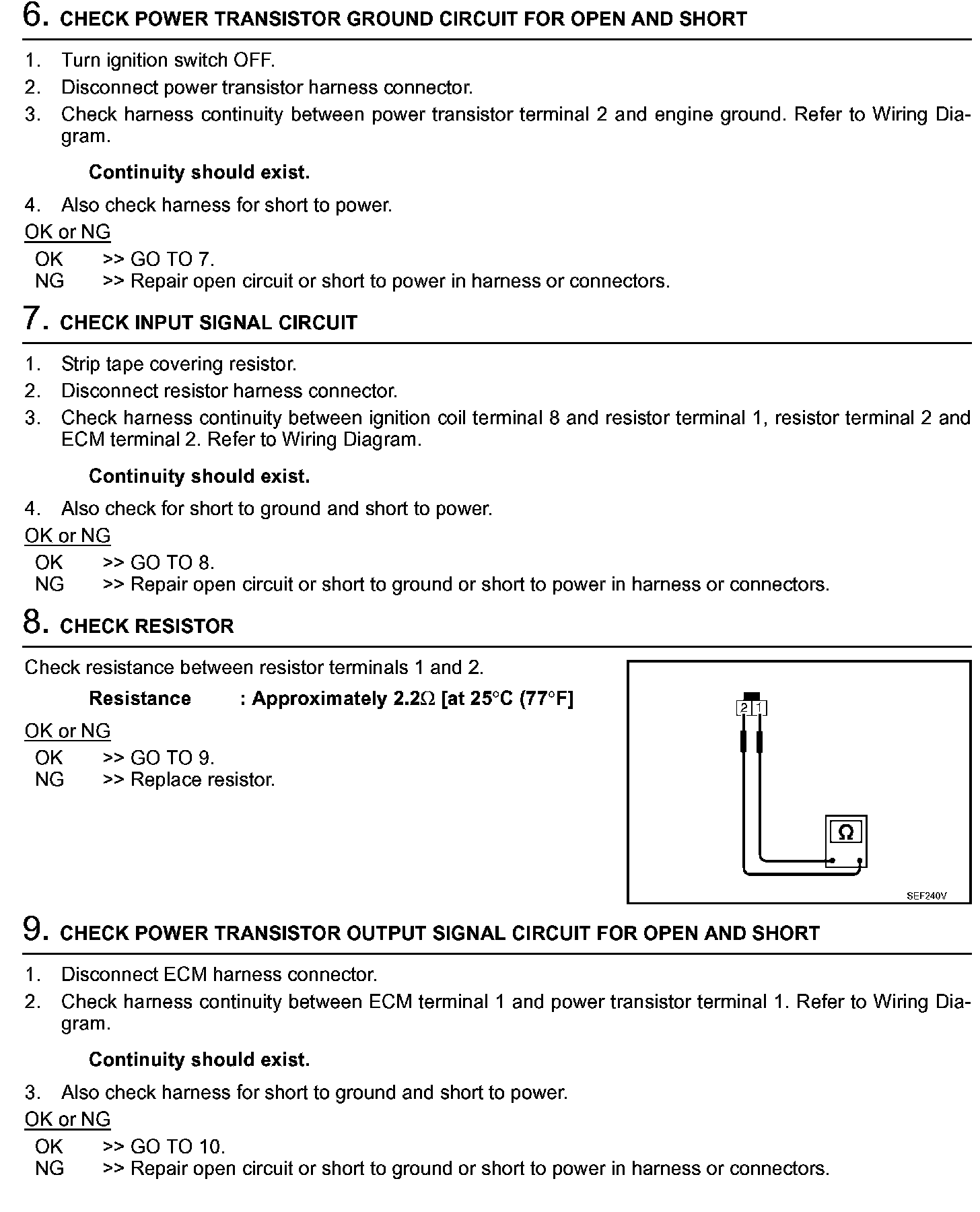

Diagnostic Procedure Step 6 - 9:

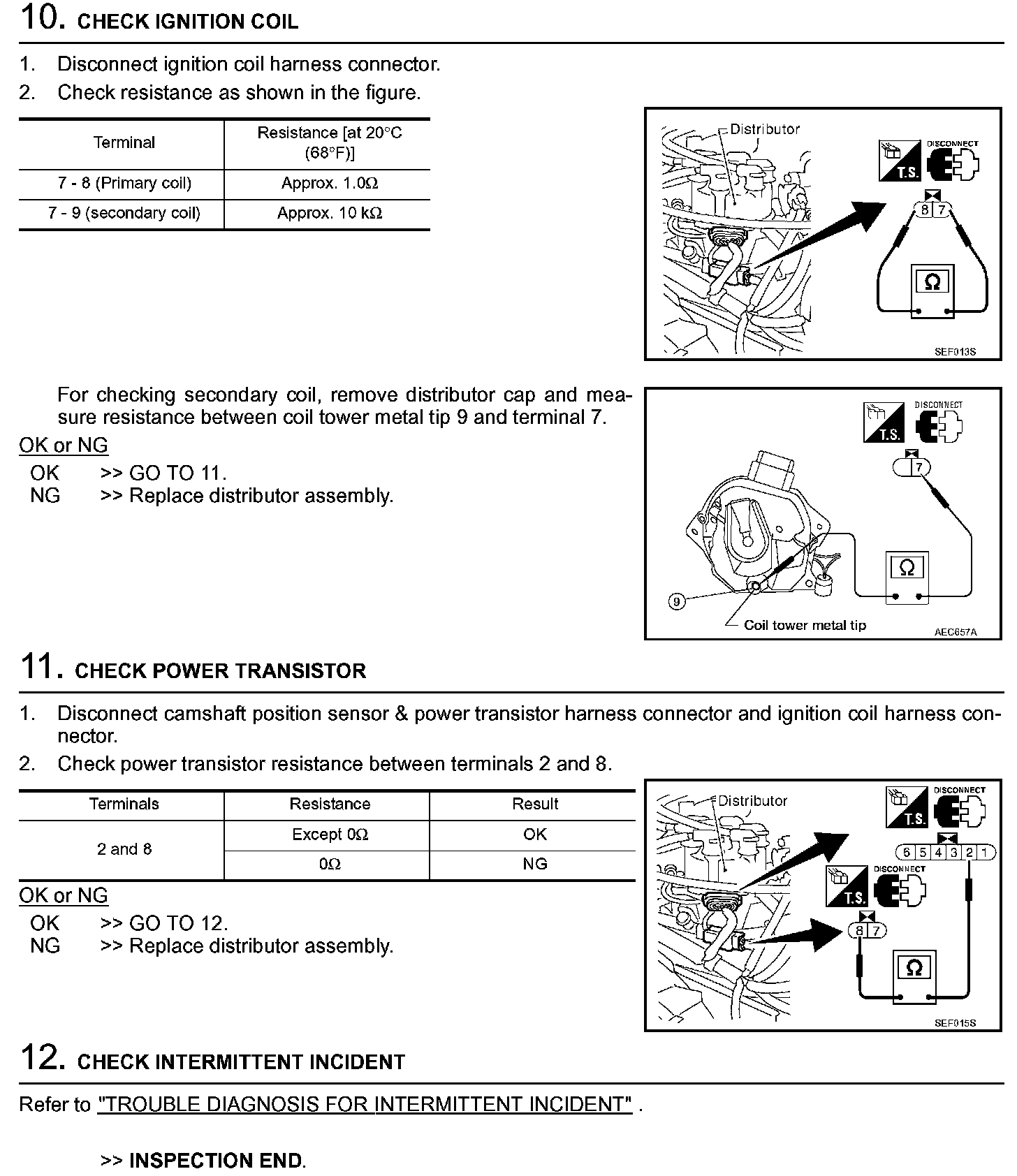

Diagnostic Procedure Step 10 - 12:
