Ignition Signal

IGNITION COIL & POWER TRANSISTOR




The power transistor switches on and off the ignition coil primary circuit according to the ECM signal. As the primary circuit is turned on and off, the proper high voltage is induced in the secondary circuit.

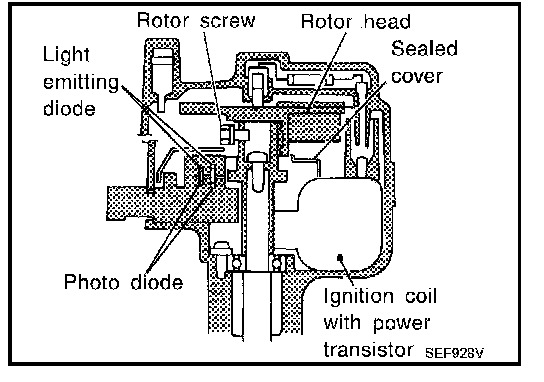

The distributor is not repairable except for the distributor cap and rotor head.

NOTE: The rotor screw which secures the distributor rotor head to the distributor shaft must be torqued properly.

Tightening Torque : 3.6 ± 0.3 N.m (37 ± 3 kg-cm, 32 ± 3 in-lb)
