Symptom Related Diagnostic Procedures

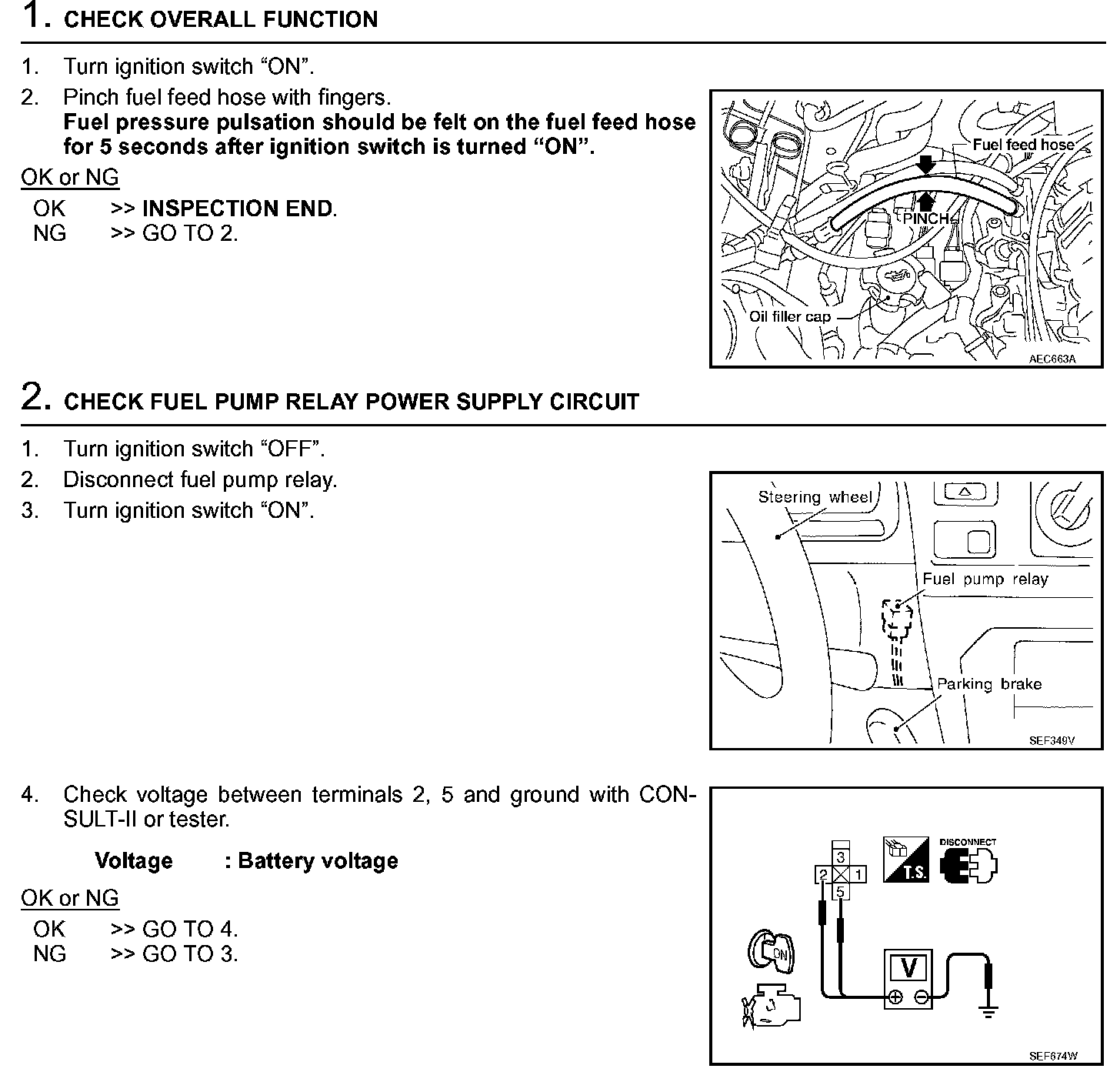

Diagnostic Procedure Step 1 - 2:

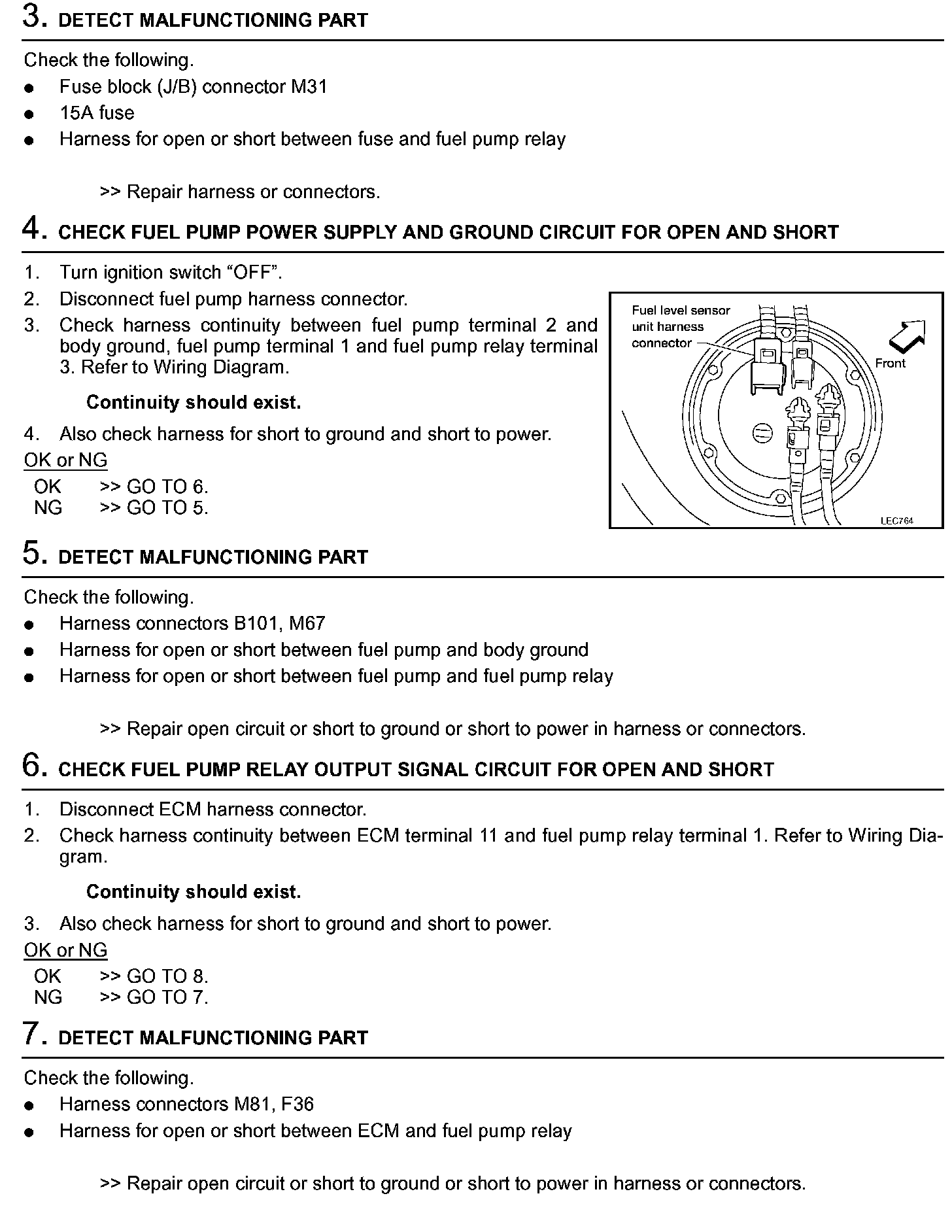

Diagnostic Procedure Step 3 - 7:

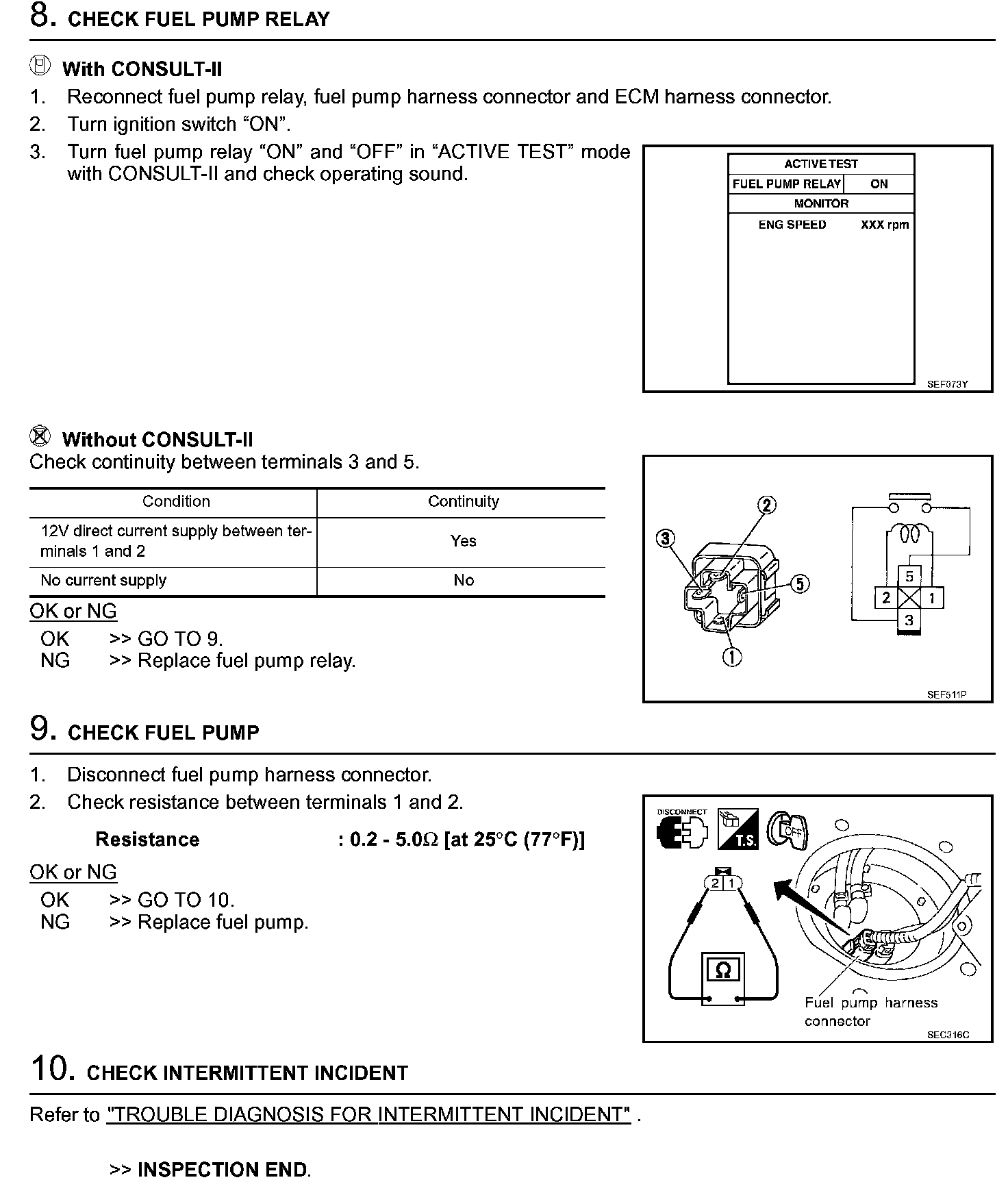

Diagnostic Procedure Step 8 - 10:
