Positive Crankcase Ventilation: Testing and Inspection

Component Inspection




PCV (POSITIVE CRANKCASE VENTILATION) VALVE

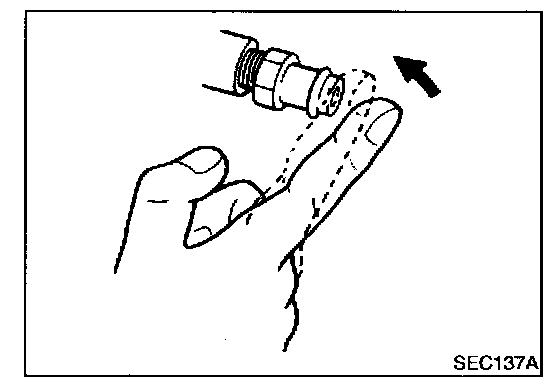

With engine running at idle, remove PCV valve from rocker cover; if the valve is working properly, a hissing noise will be heard as air passes through it and a strong vacuum should be felt immediately when a finger is placed over valve inlet.




PCV VALVE VENTILATION HOSE
1. Check hoses and hose connections for leaks.

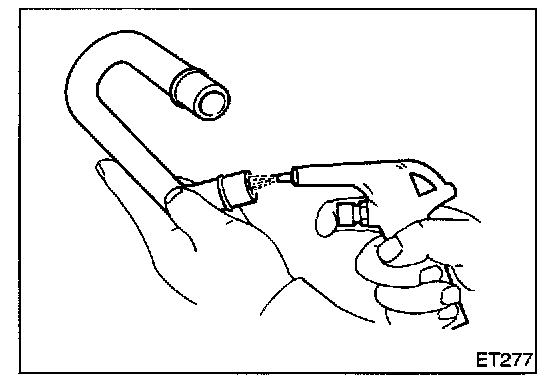

2. Disconnect all hoses and clean with compressed air. If any hose cannot be freed of obstructions, replace.
