Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> With Manufacturer's Scan Tool (Consult-II) >> Self-Diag Results Mode

Self-Diag Results Mode

Self Diagnostic Item
Regarding items of "DTC and 1st trip DTC".

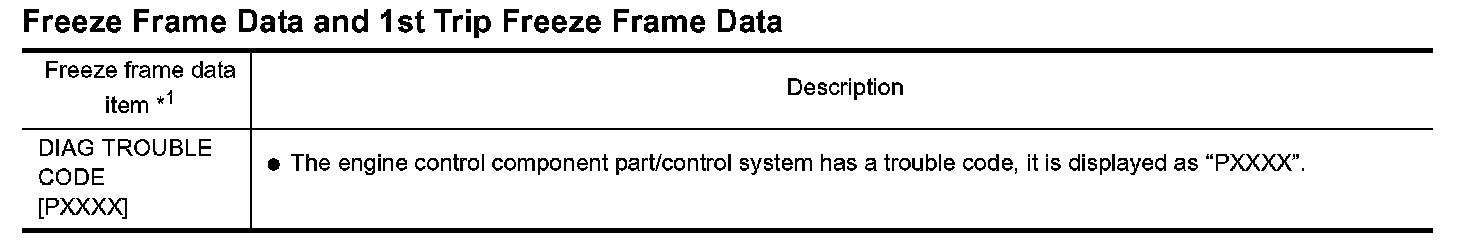

Freeze Frame Data And 1st Trip Freeze Frame Data Part 1:

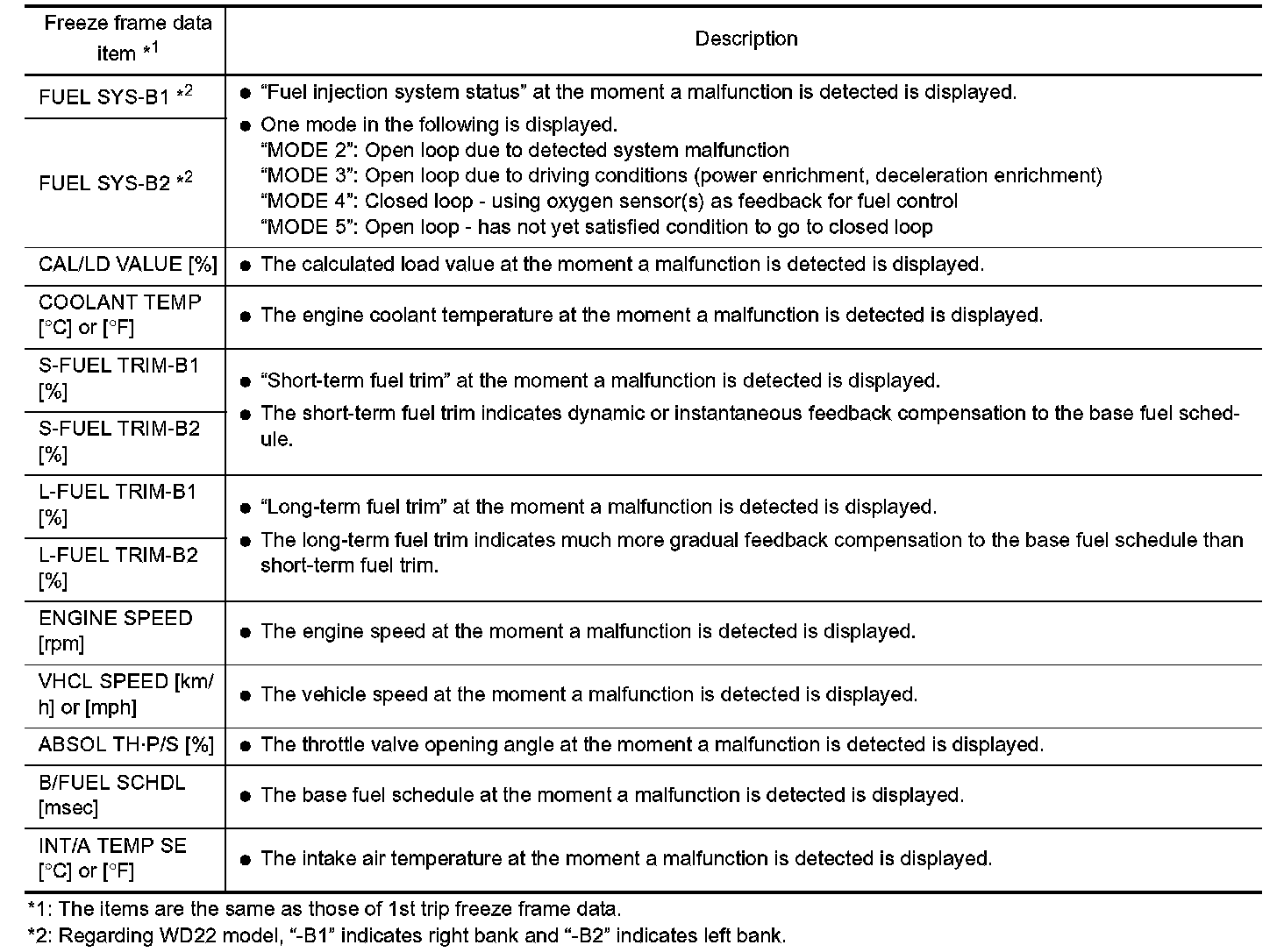

Freeze Frame Data And 1st Trip Freeze Frame Data Part 2:
