Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> With Manufacturer's Scan Tool (Consult-II) >> Data Monitor Mode

Data Monitor Mode

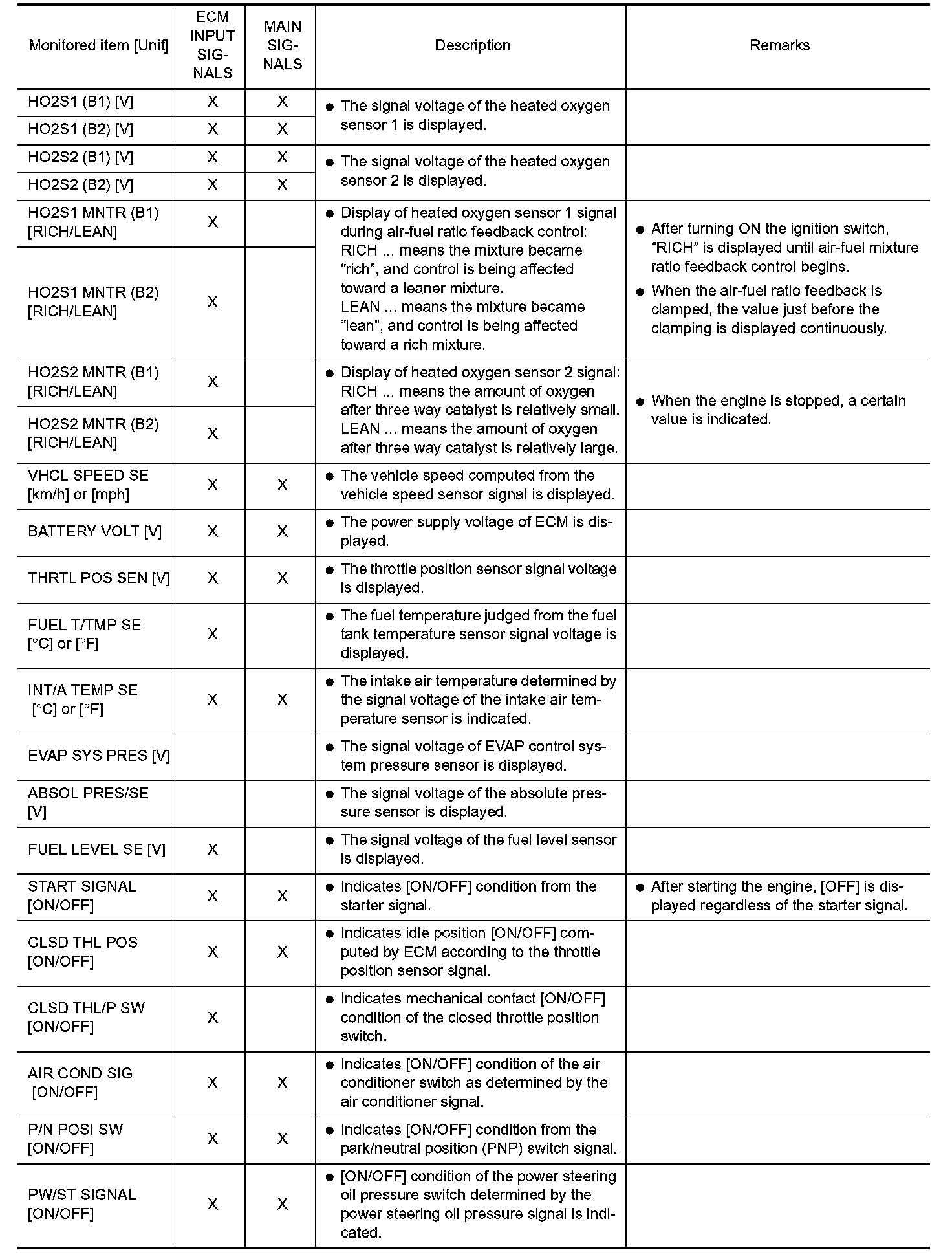

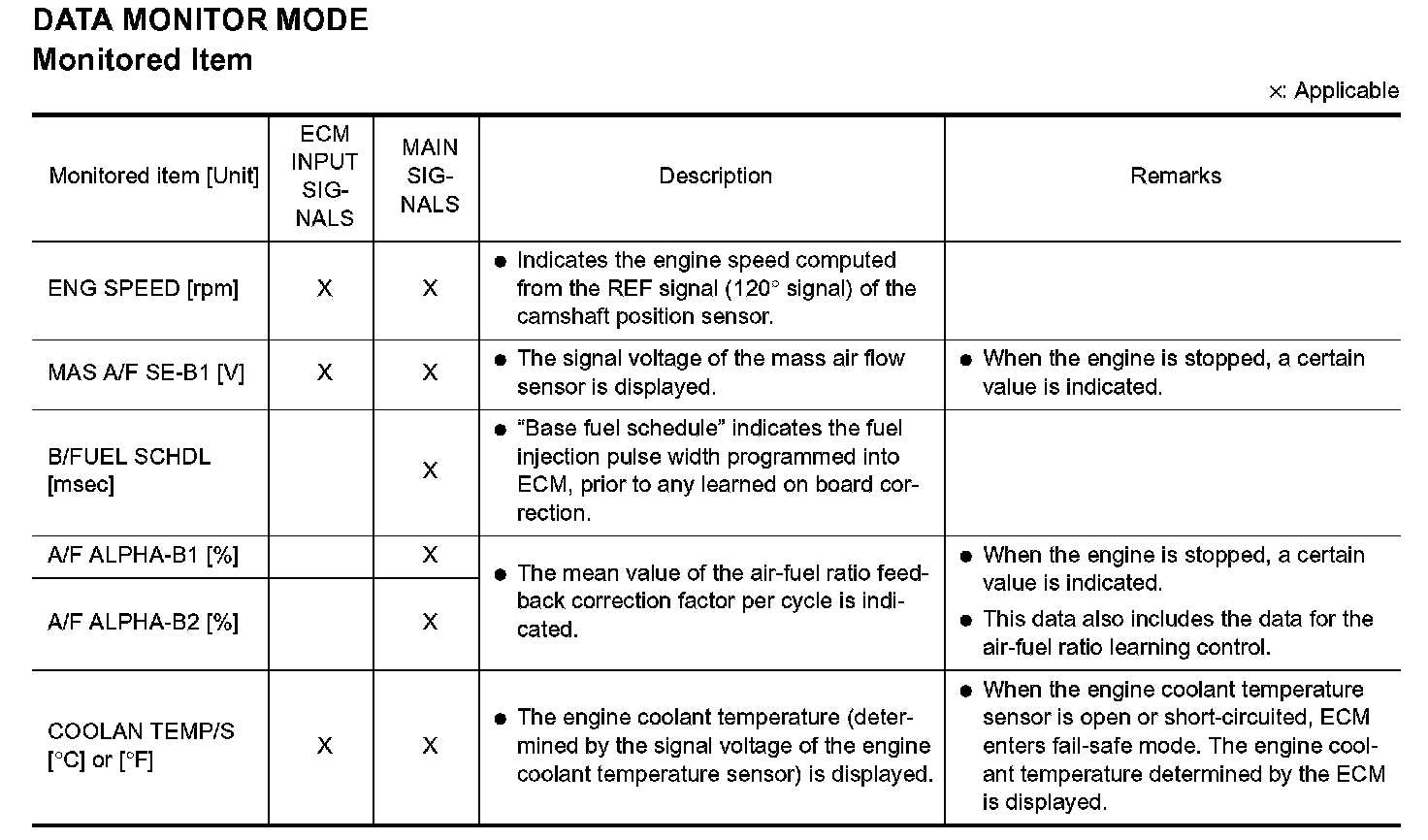

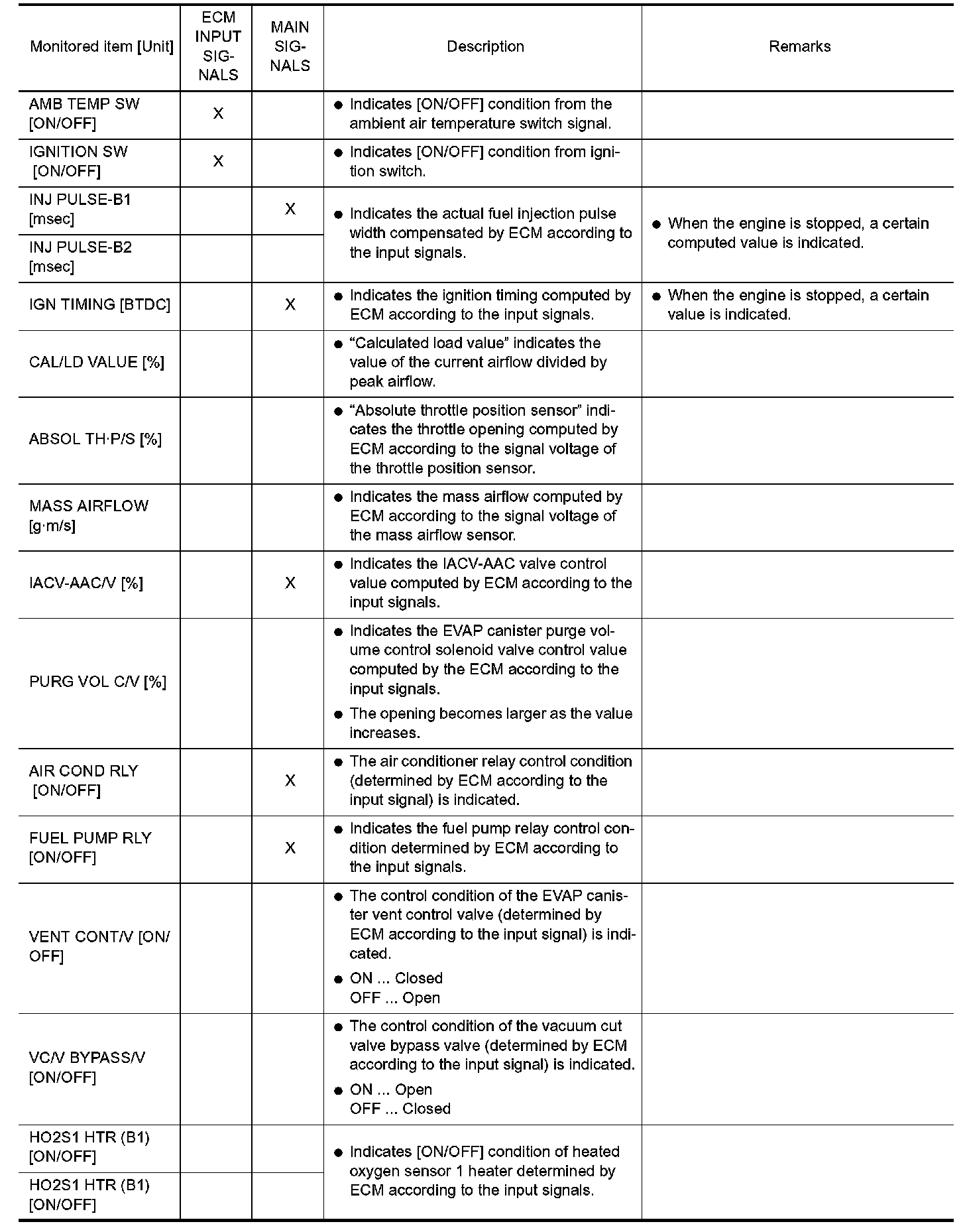

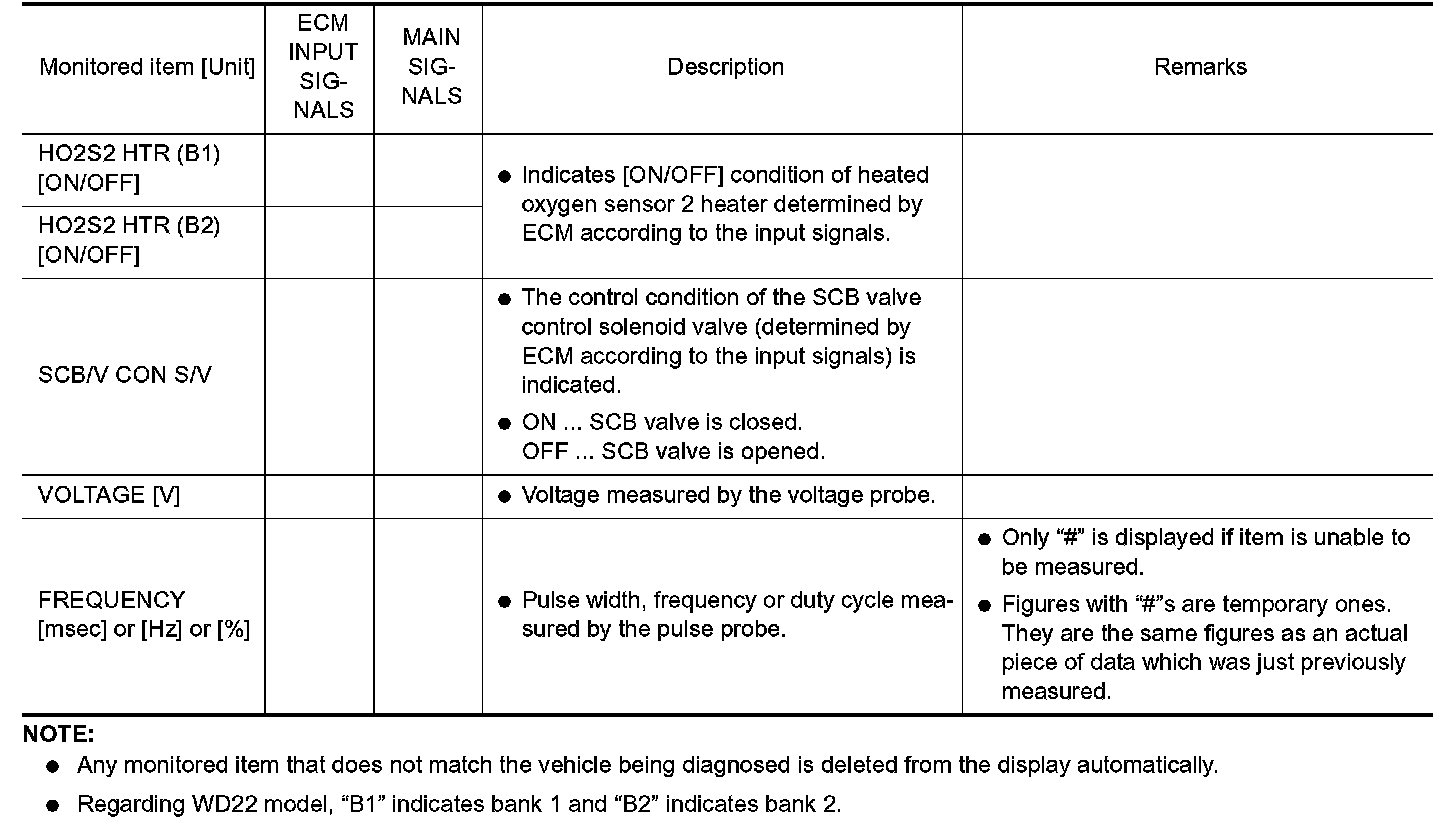

Data Monitor Mode Part 1:



Data Monitor Mode Part 2:



Data Monitor Mode Part 3:



Data Monitor Mode Part 4:
