CONSULT-II Inspection Procedure

1. Turn ignition switch OFF.

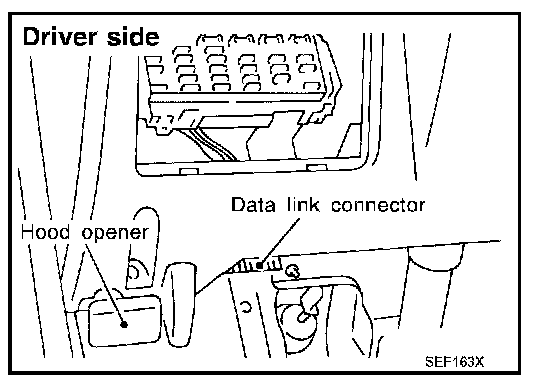

2. Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector which is located under LH dash panel near the fuse box cover.




3. Turn ignition switch ON.

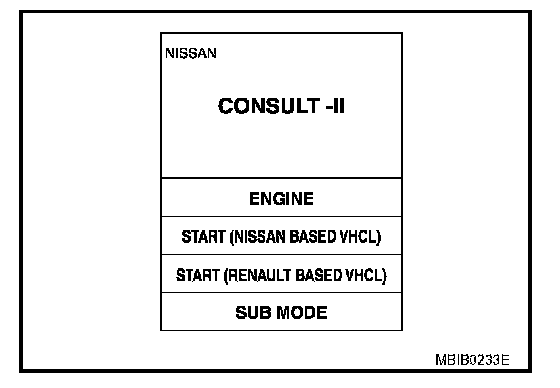

4. Touch "START (NISSAN BASED VHCL)".

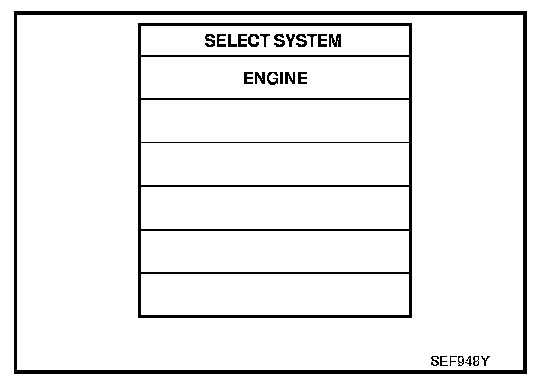

5. Touch "ENGINE".

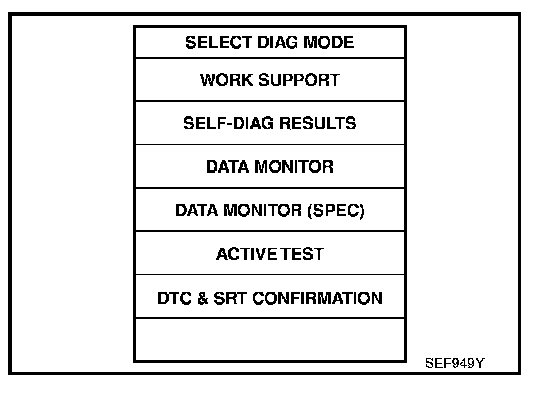

6. Perform each diagnostic test mode according to each service procedure.

For further information, see the CONSULT-II Operation Manual.
