Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Locations >> Component Locations >> Passenger Compartment Electrical Units Locations

Passenger Compartment Electrical Units Locations

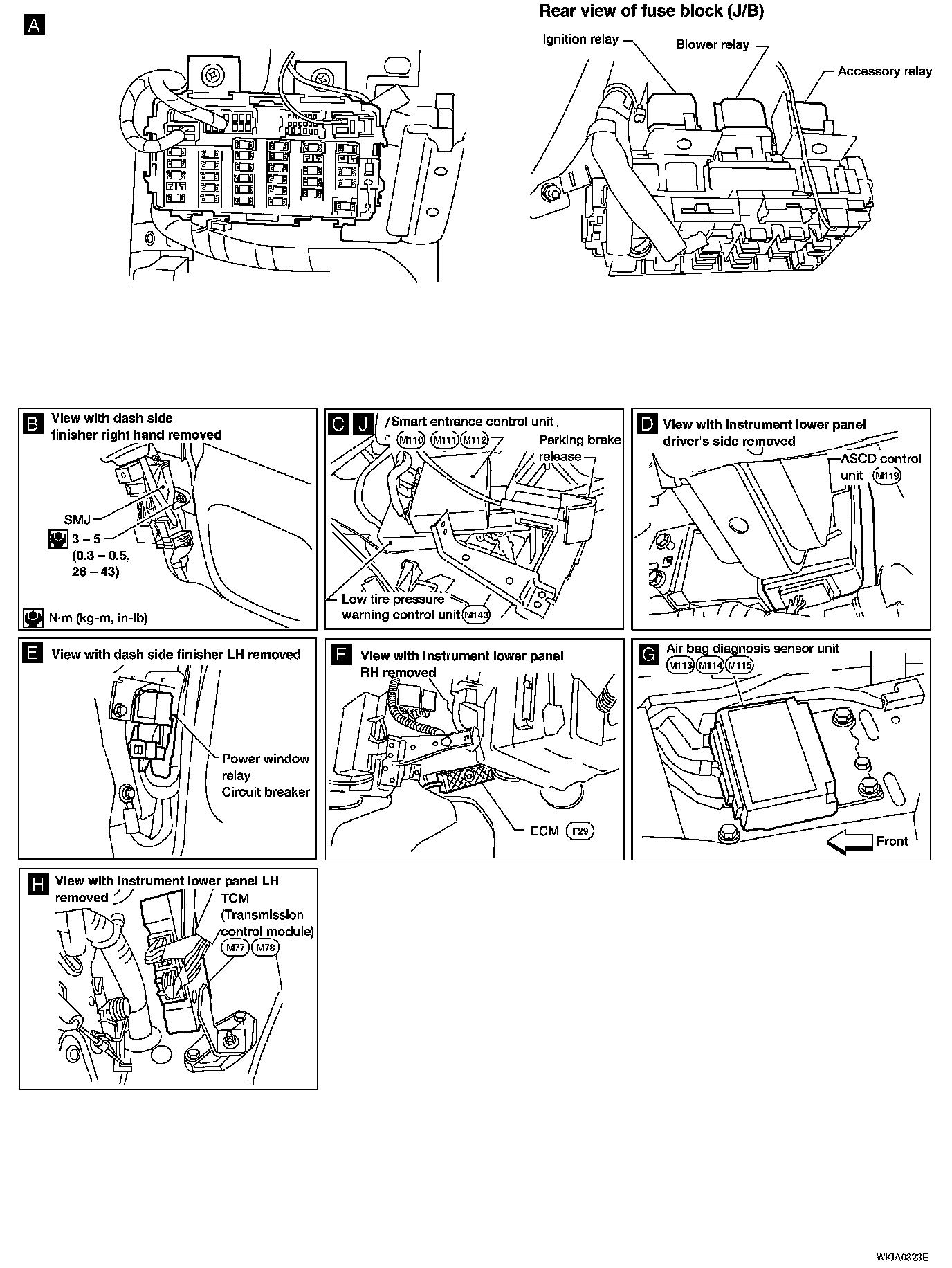

Passenger Compartment Part 1:

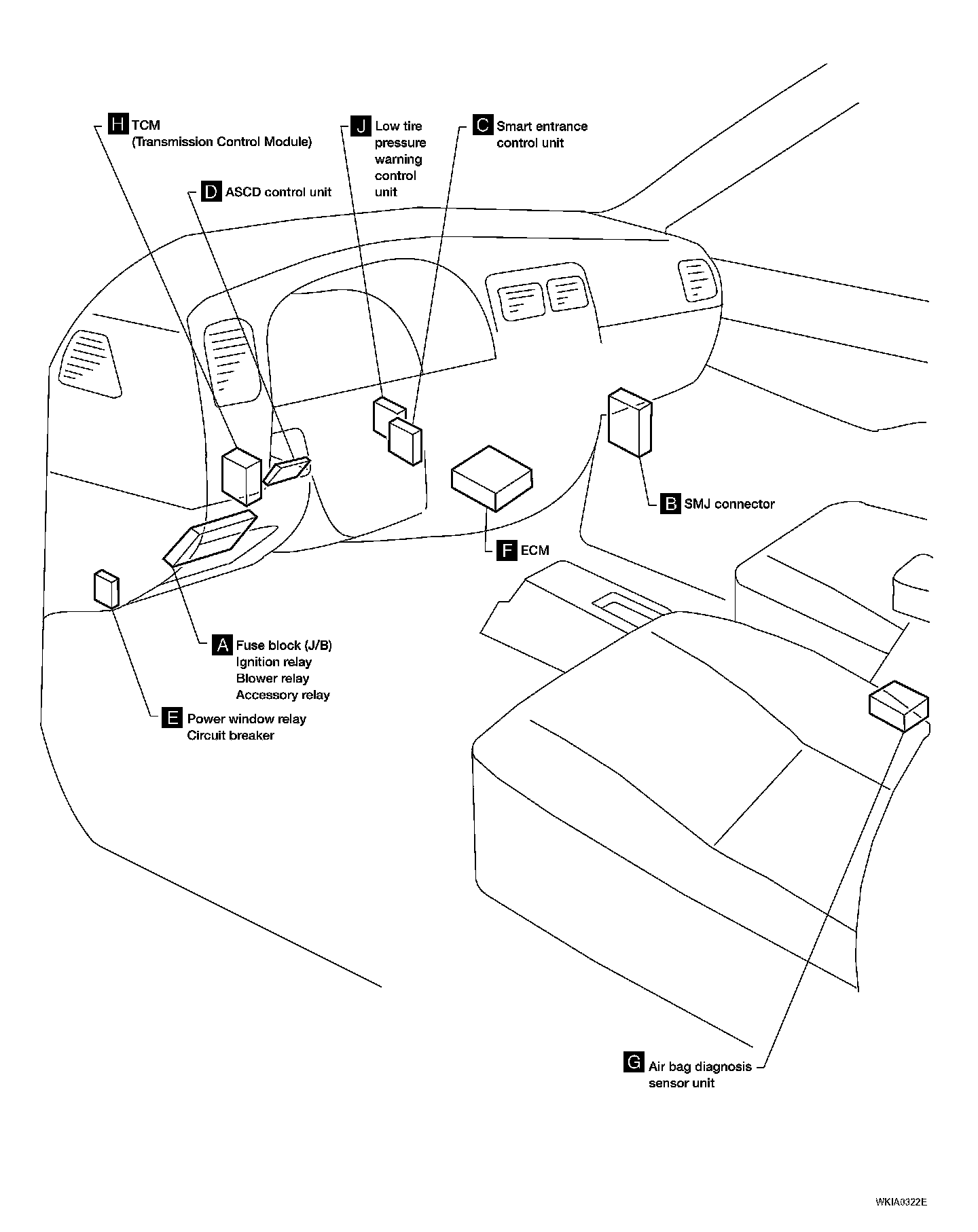

Passenger Compartment Part 2:
