Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Lighting and Horns >> Relays and Modules - Lighting and Horns >> Trailer Lighting Module >> Testing and Inspection

Trailer Lighting Module: Testing and Inspection

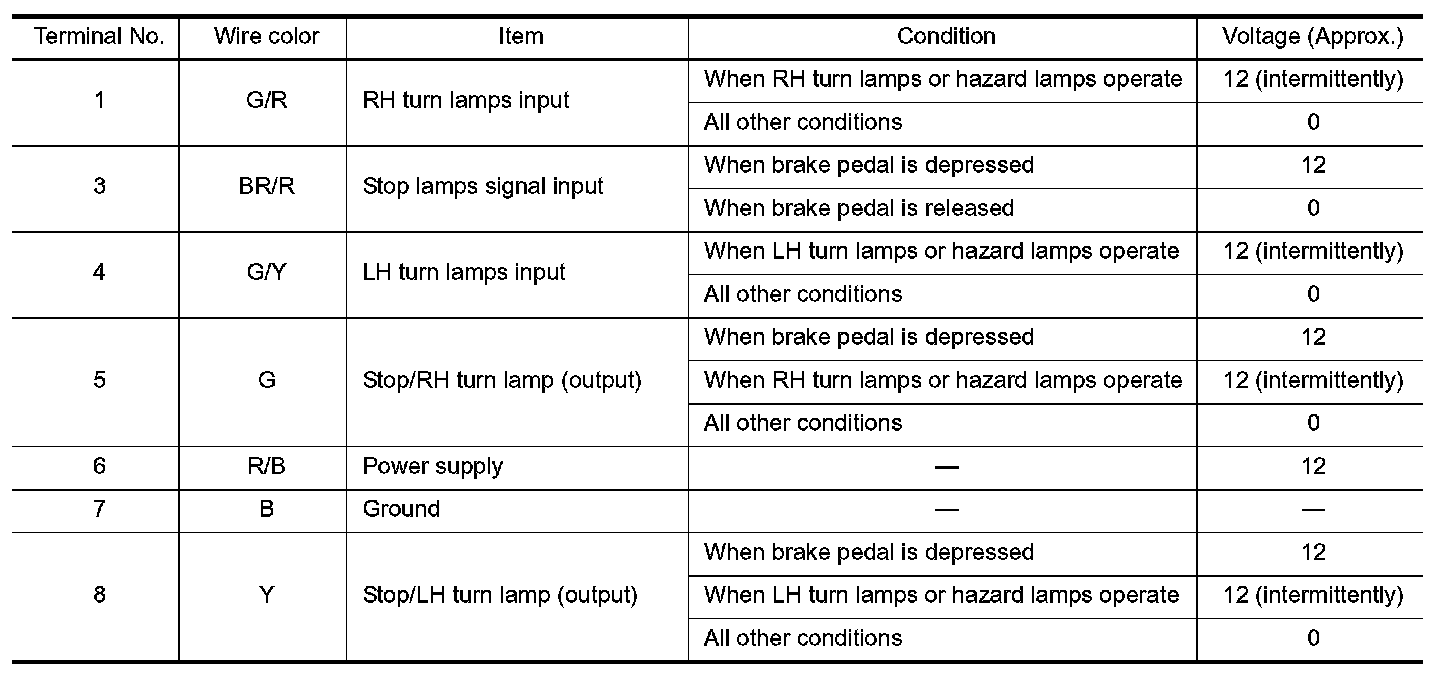

Trailer Tow Control Unit Inspection Table:
