Headlamp - Daytime Running Light System Schematic

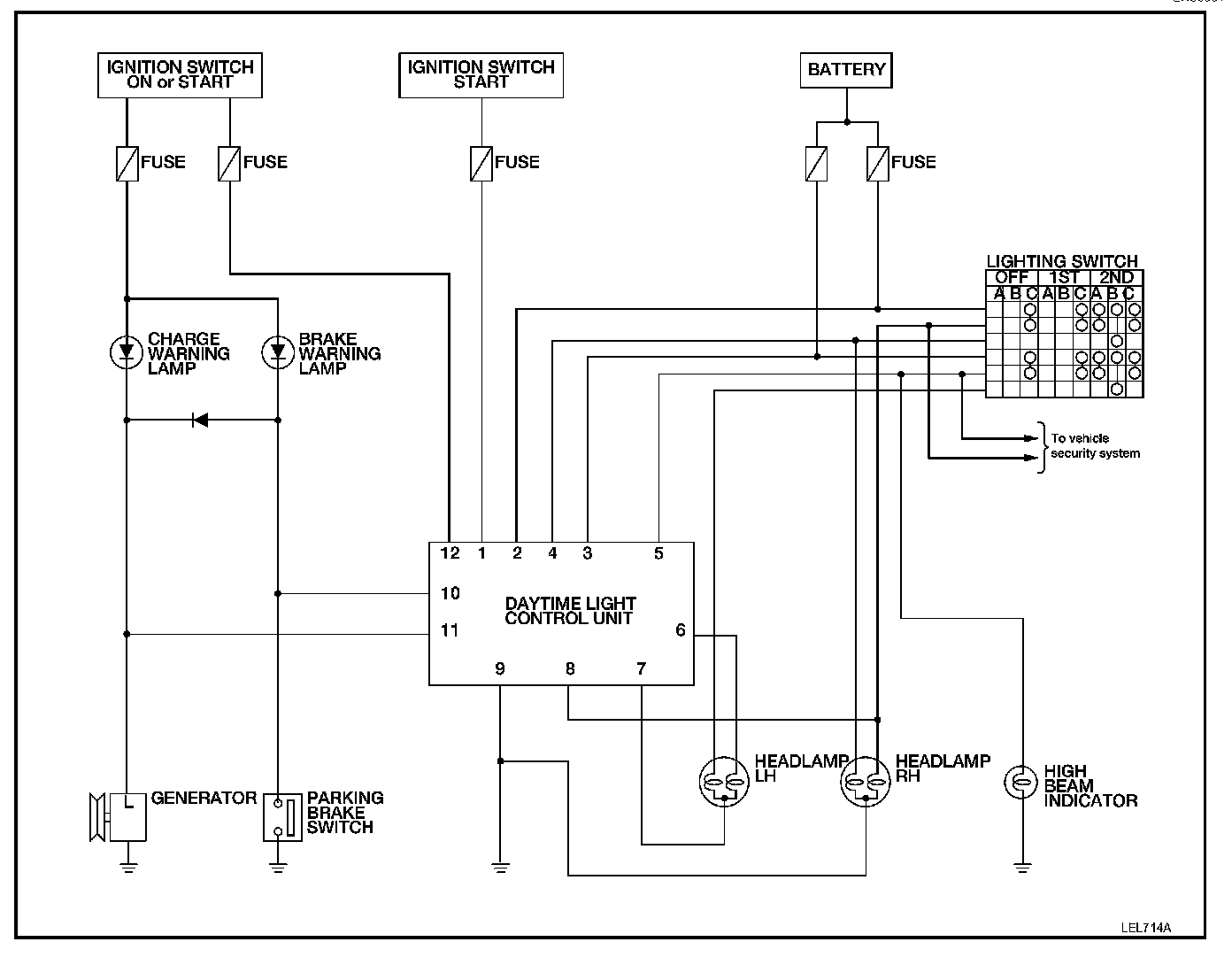

Headlamp (For Canada) - Daytime Running Light System Schematic:
