Nissan-Datsun Truck
>>
2003
>>
Xterra 2WD V6-3.3L SC (VG33ER)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Testing and Inspection
Courtesy Lamp: Testing and Inspection

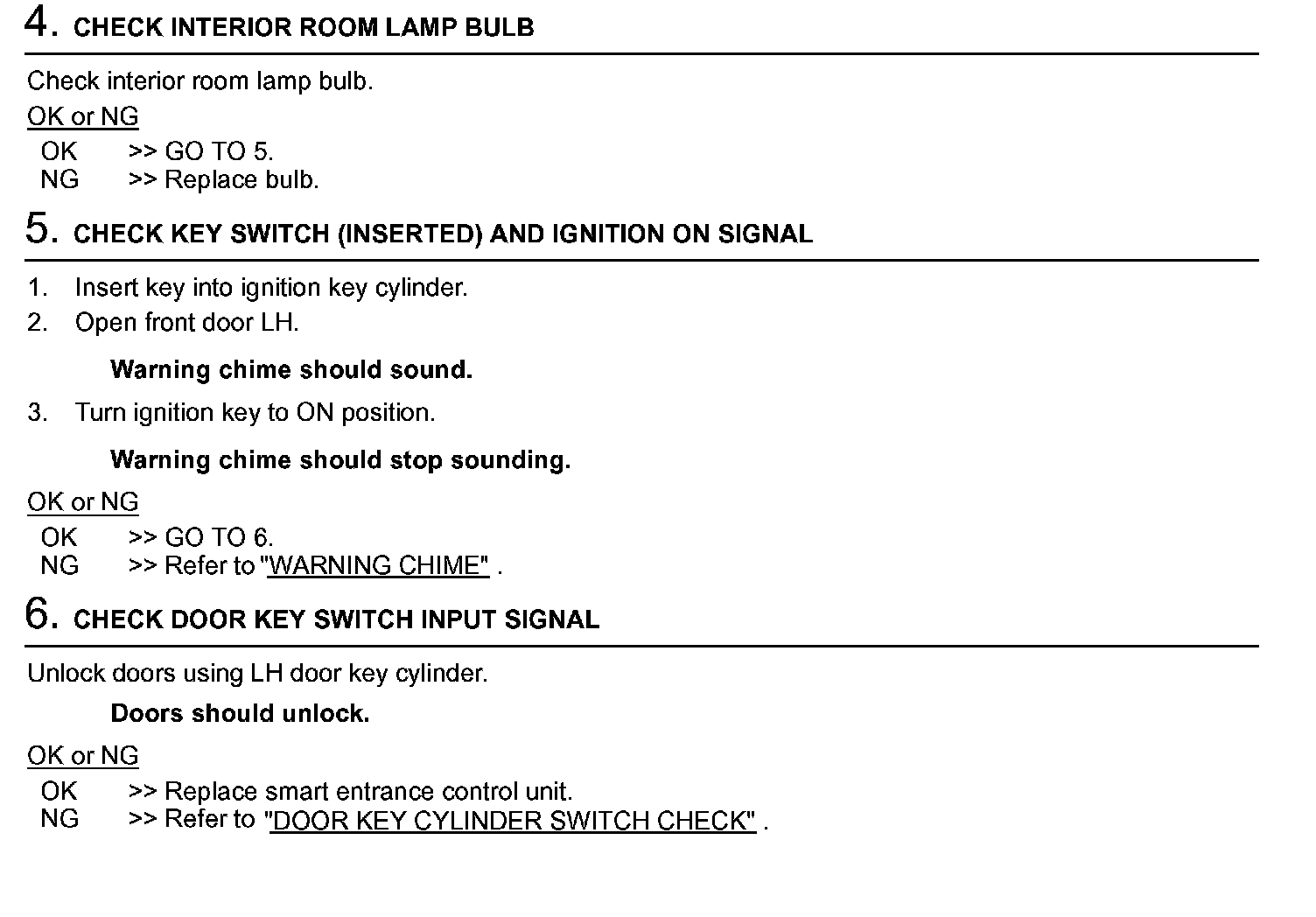

SYMPTOM: Front and rear room lamp does not turn on or off properly.

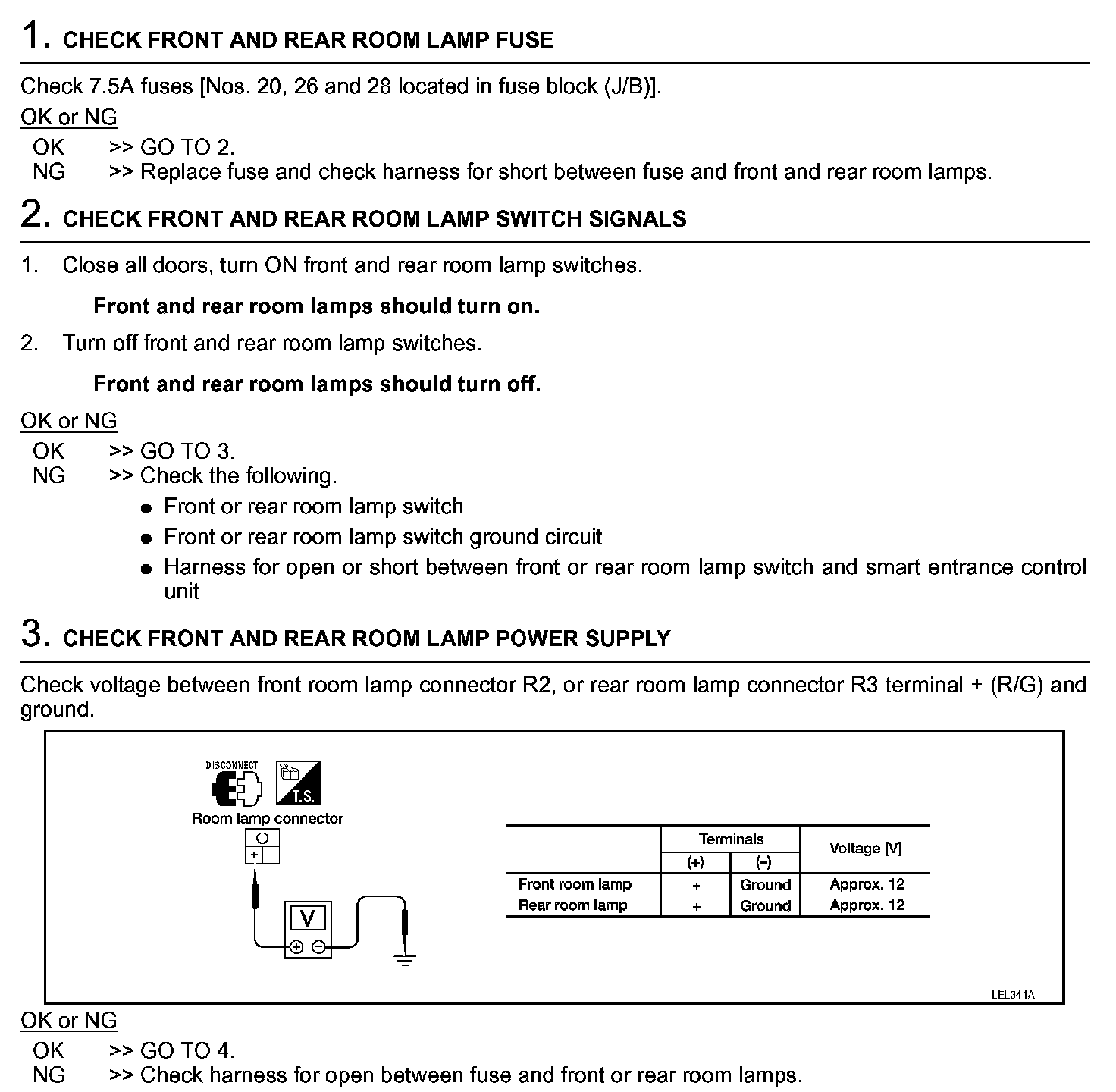

MODELS WITHOUT POWER DOOR LOCKS
MODELS WITH POWER DOOR LOCKS
