Without Scan Tool

To start the self-diagnostic results mode, ground the self diagnostic (check) terminal.

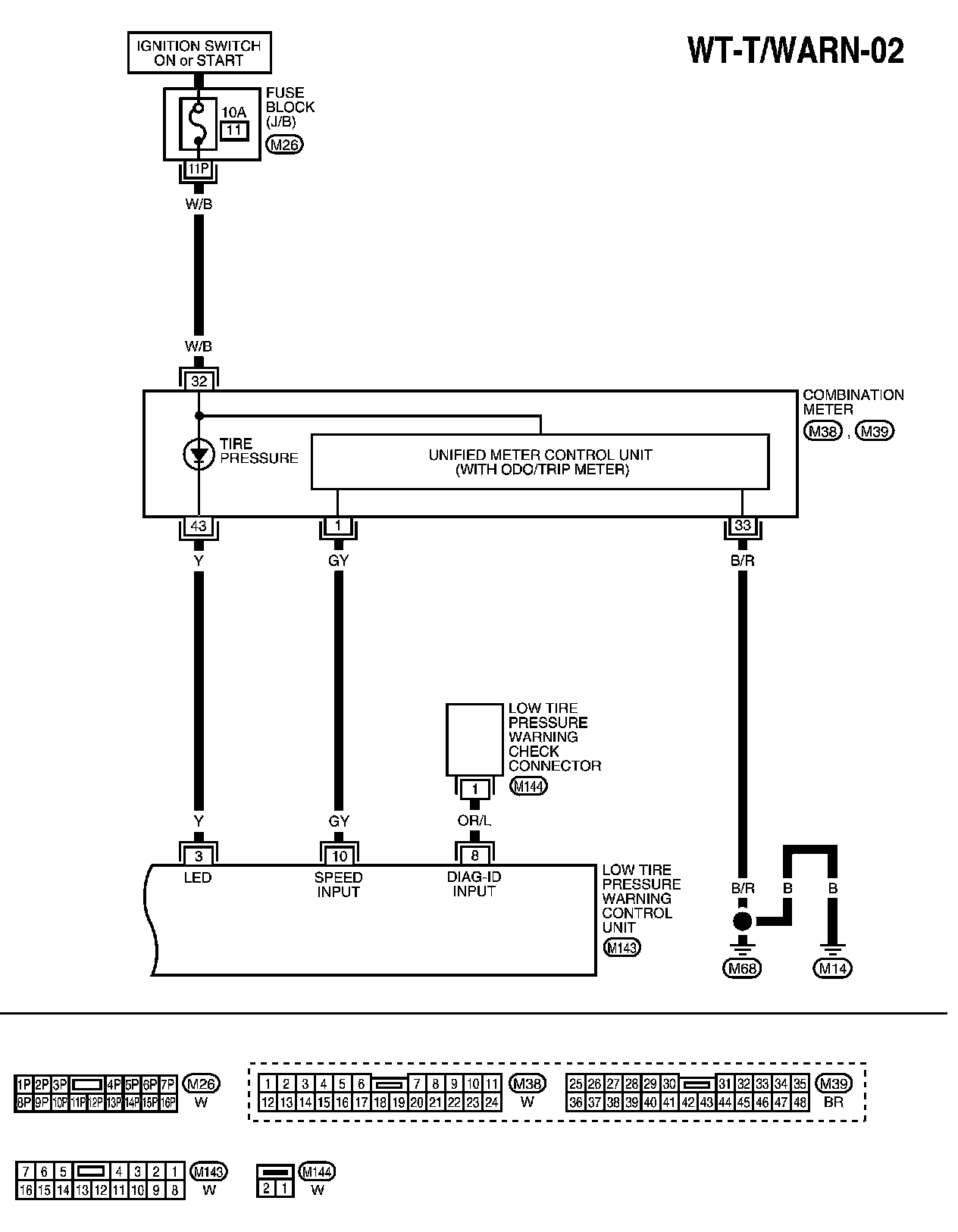

WT-T/WARN-02:

Refer to wiring diagram.


The malfunction location is indicated by the warning lamp flashing and the chime sounding.
