Warning Lamps

FUEL WARNING LAMP SENSOR CHECK




1. Turn ignition switch OFF.
2. Disconnect fuel level sensor unit harness connector B108.

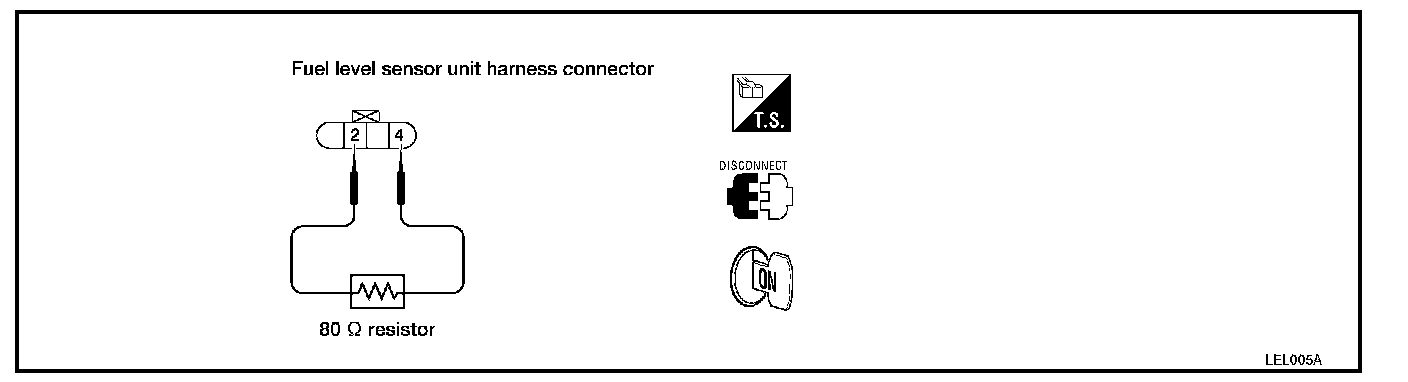

3. Connect a resistor (80 Ohm) between fuel level sensor unit harness connector B108 terminals 2 (OR/B) and 4 (B).
4. Turn ignition switch ON.

The fuel warning lamp should come on.

NOTE: ECM might store DTC during this inspection. If the DTC is stored in ECM memory, erase the DTC after reconnecting the fuel level sensor unit harness connector.

Refer to Computers and Control Systems; Procedures; "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION".

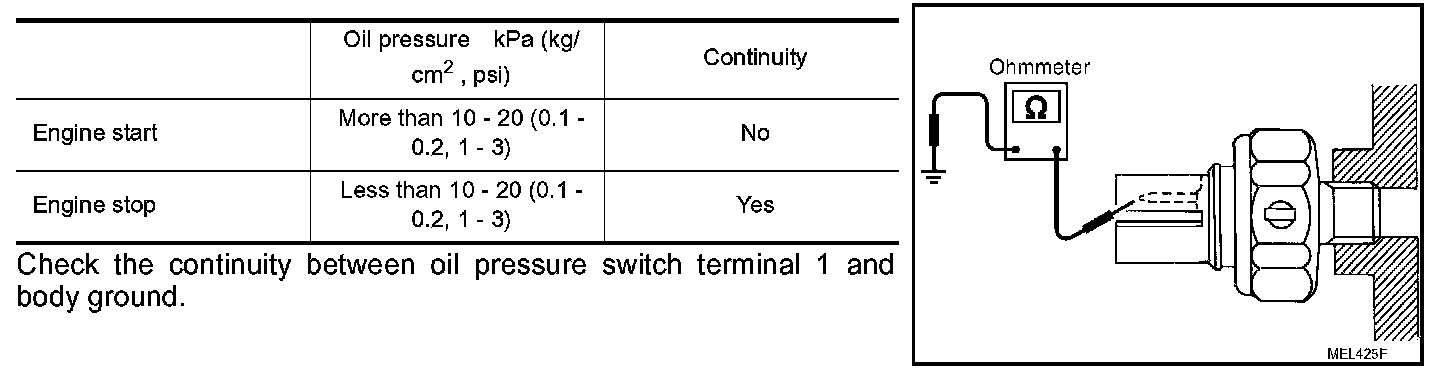

Oil Pressure Switch Check:

OIL PRESSURE SWITCH CHECK

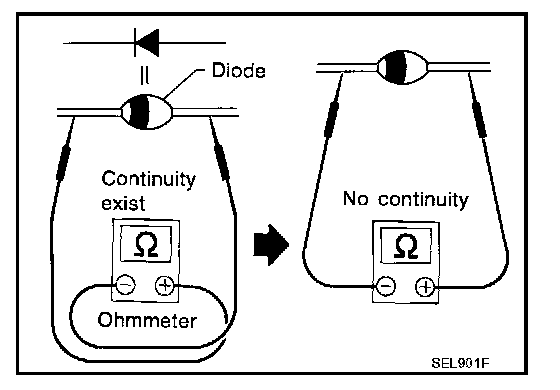

DIODE CHECK




- Check continuity using an ohmmeter.
- Diode is functioning properly if test results are as shown.

NOTE: Specification may vary depending on the type of tester. Before performing this inspection, be sure to refer to the instruction manual of the tester to be used.

- Check diodes at the combination meter harness connector instead of the combination meter assembly. Refer to "Wiring Diagram - WARN -".
