Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Meters and Gauges >> Non-Trouble Code Procedures >> Thermal Transmitter

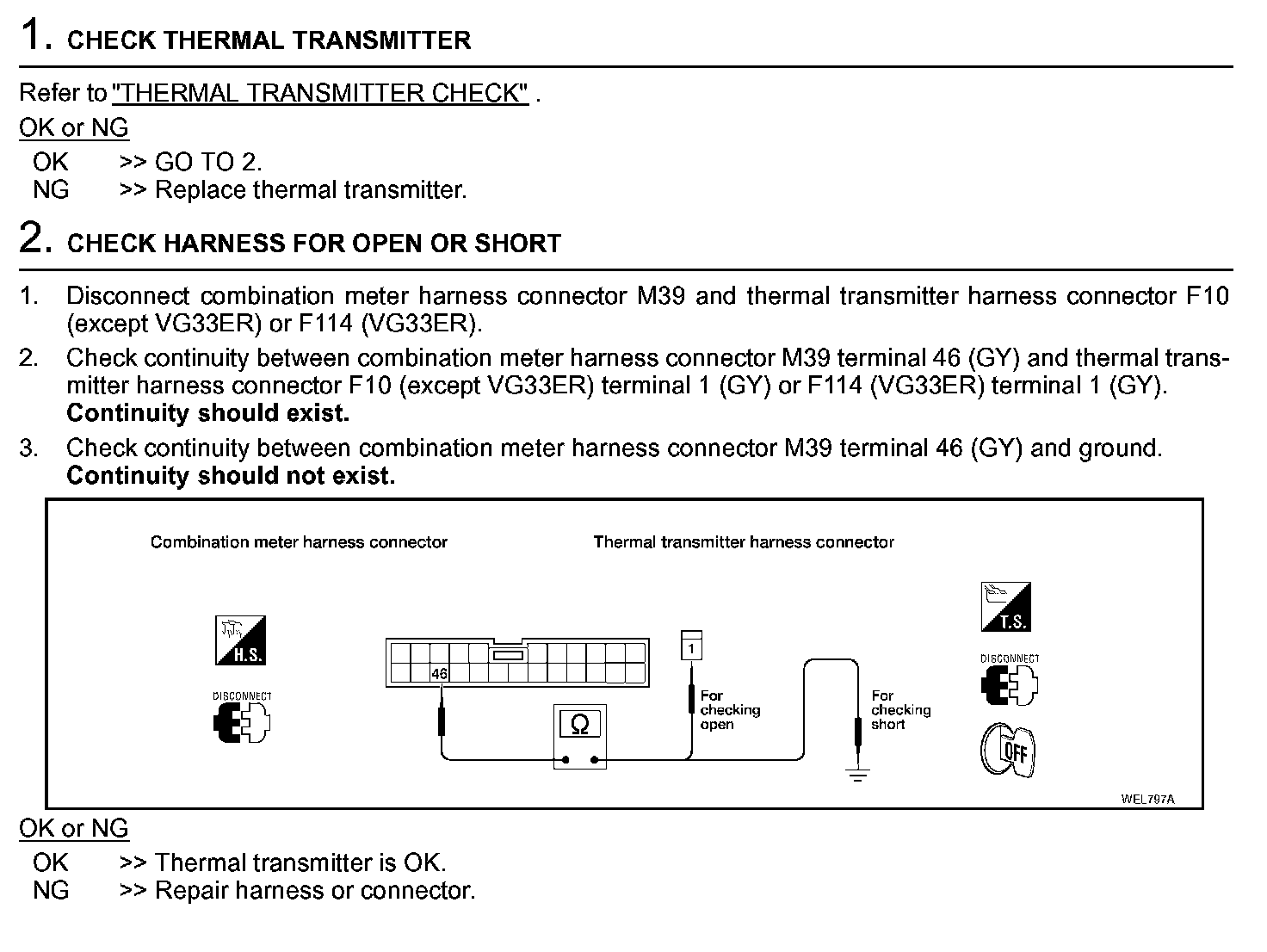

Thermal Transmitter

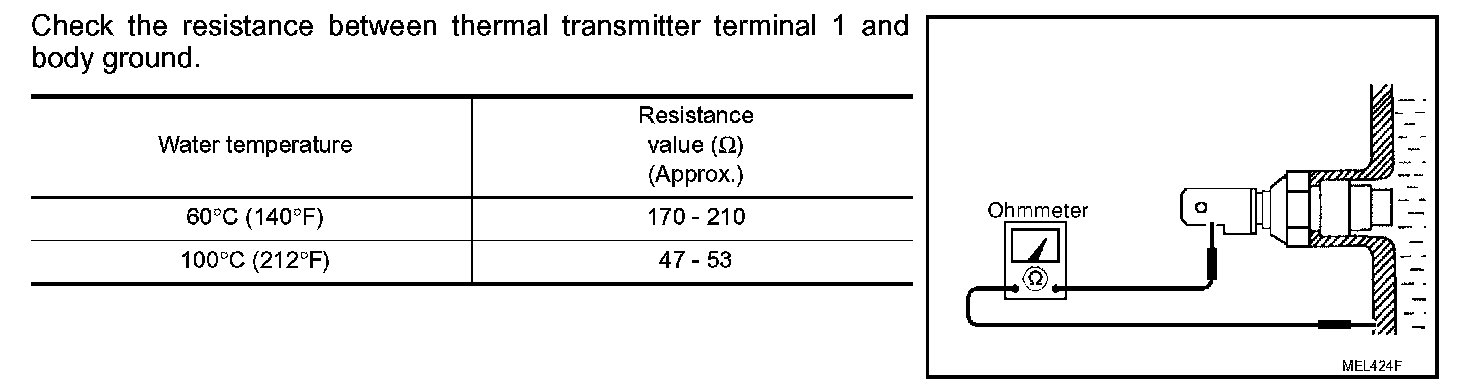

Thermal Transmitter Check:



Inspection/Thermal Transmitter (DI-16):
