Displaying & Reading Trouble Codes
Meter/Gauge Operation and Odo/Trip Meter Segment Check In Diagnosis Mode1. Turn ignition switch ON while pressing and holding trip reset switch for 0.8 second.
2. Push trip reset switch 3 times within 7 seconds.

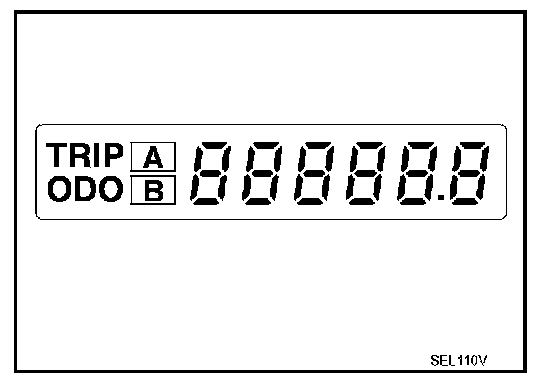

3. All odo/trip meter segments should be turned on.
NOTE: If some segments are not turned on, speedometer (unified meter control unit) with odo/trip meter should be replaced.
At this point, the unified meter control unit is in diagnosis mode.

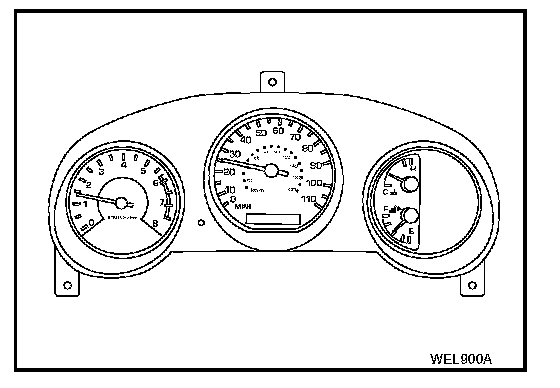

4. Push odo/trip meter switch. Indication of each meter/gauge should be as shown in figure while pushing odo/trip meter switch if it is not malfunctioning.
NOTE: It takes about 1 minute for indication of fuel gauge to become stable.
