Insufficient Heating

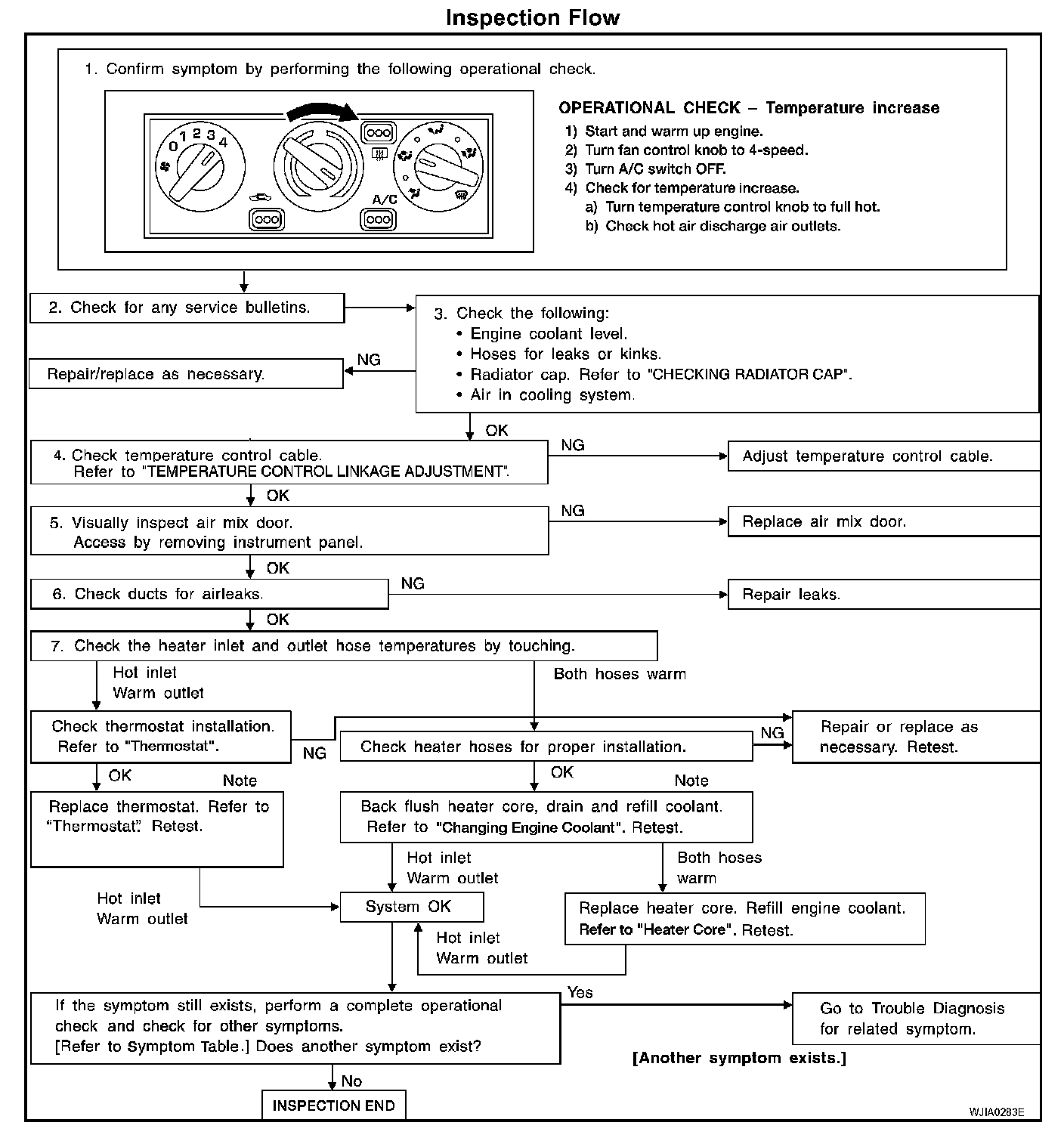

Inspection Flow:

TROUBLE DIAGNOSIS PROCEDURE FOR INSUFFICIENT HEATING

Symptom:
- Insufficient heating

TEMPERATURE CONTROL LINKAGE ADJUSTMENT

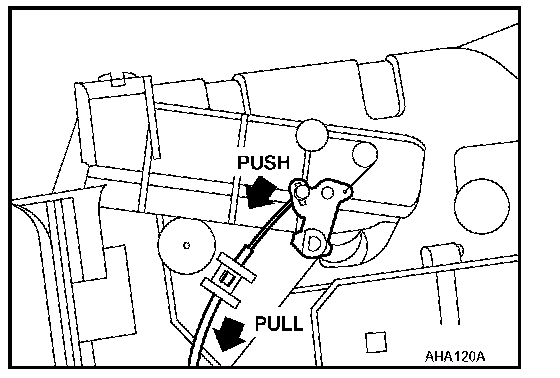

Temperature Control Cable
- When adjusting ventilator door rod and defrost door rod, first disconnect mode control cable from side link. Reconnect and readjust mode control cable.
- Turn temperature control switch to max. COLD position. Set air mix door lever in full hot mode. Pull on outer cable in direction of arrow and then clamp it.
- After positioning temperature control cable, check that it operates properly.
