Magnet Clutch Circuit

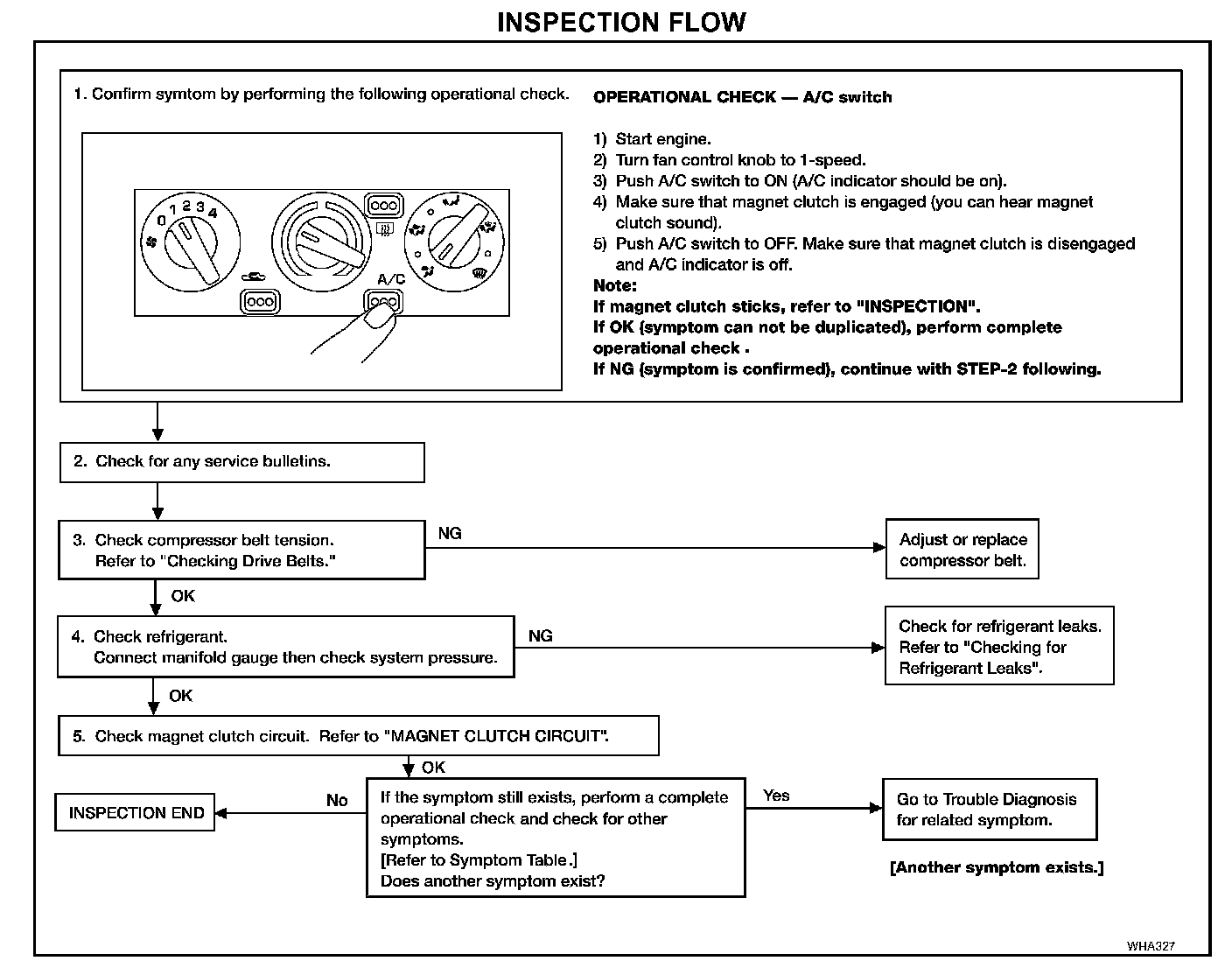

Inspection Flow:

TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH

Symptom:
- Magnet clutch does not engage when A/C switch and fan switch are ON.

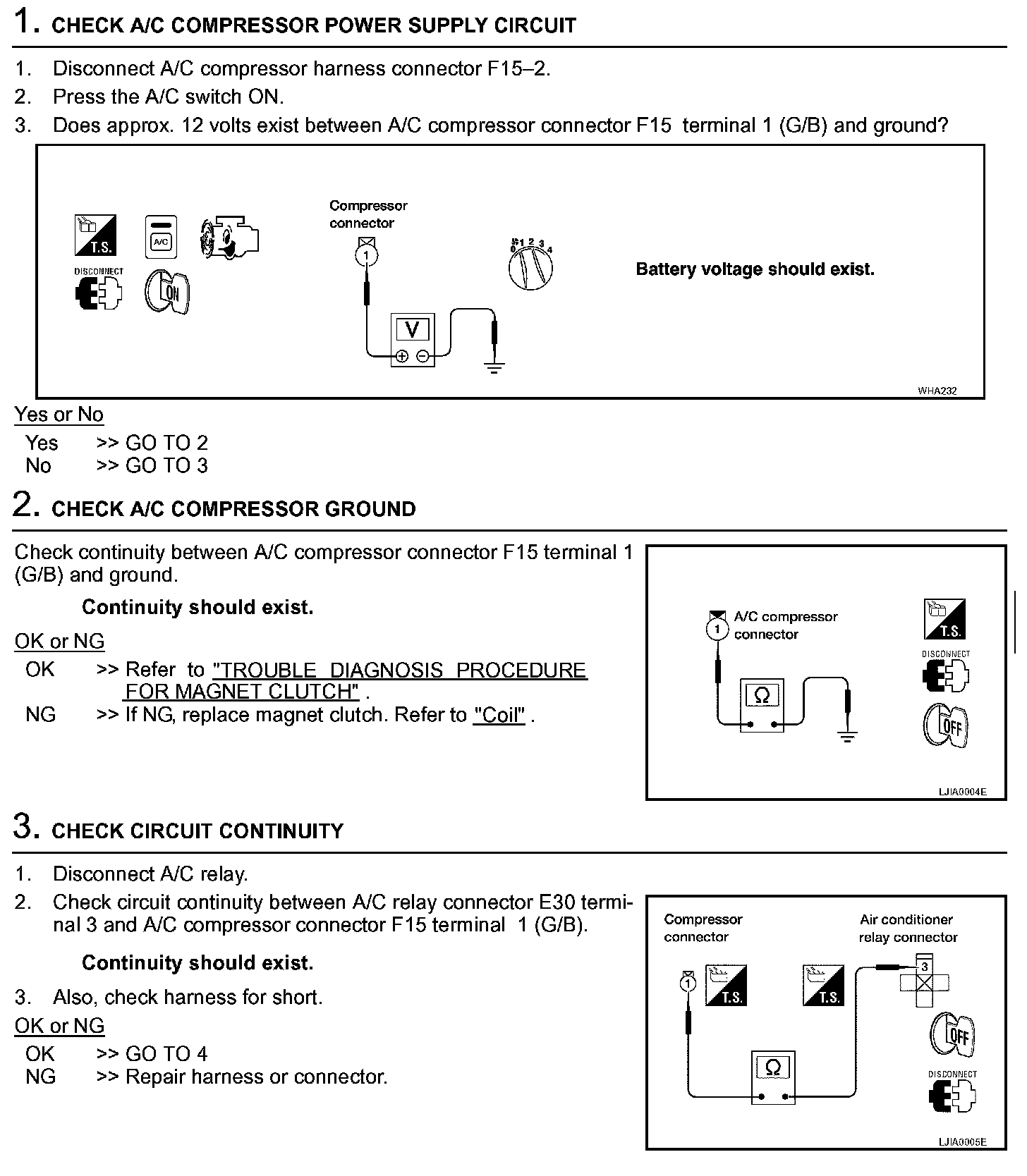

Diagnostic Procedure Step 1 - 3:

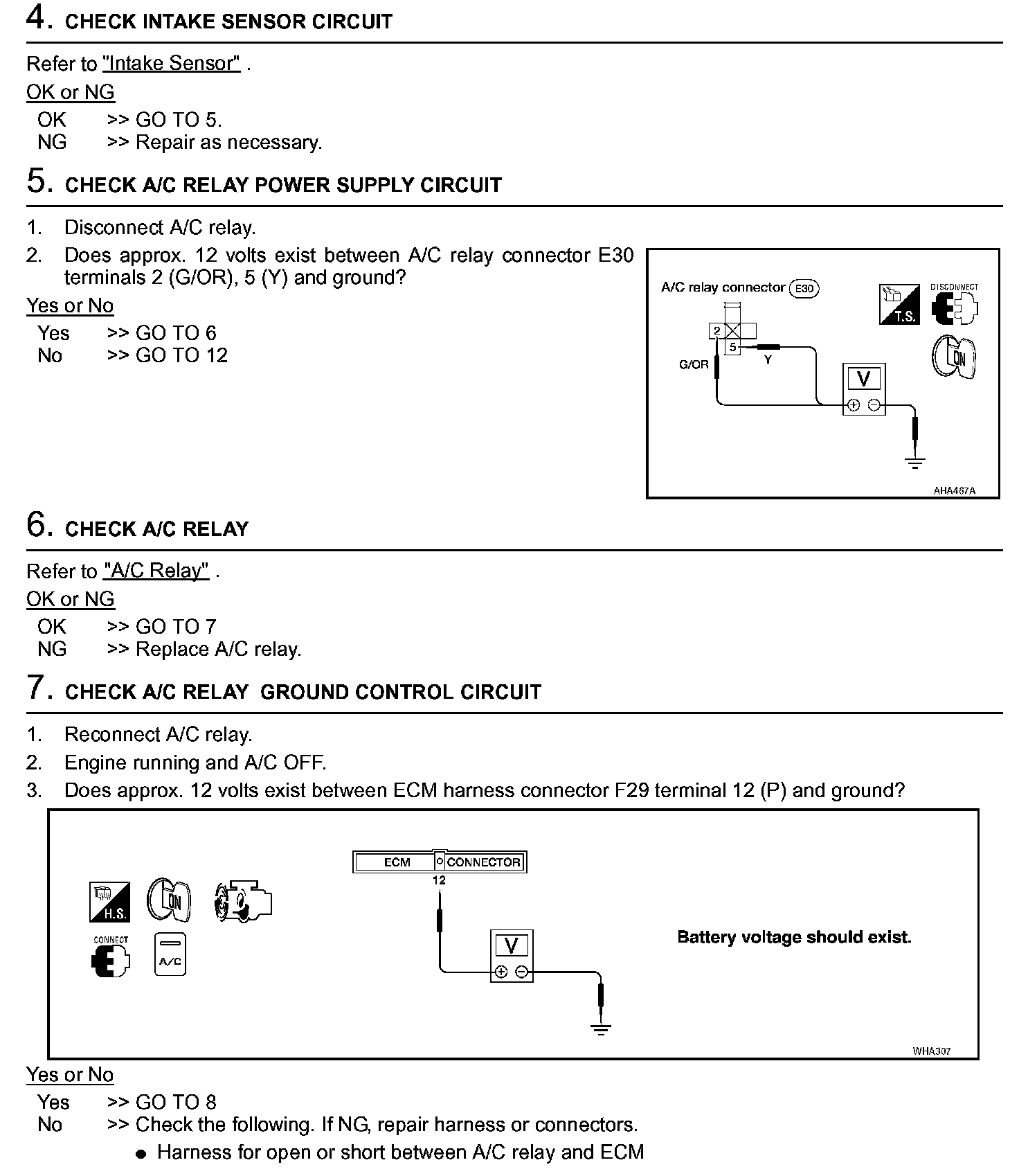

Diagnostic Procedure Step 4 - 7:

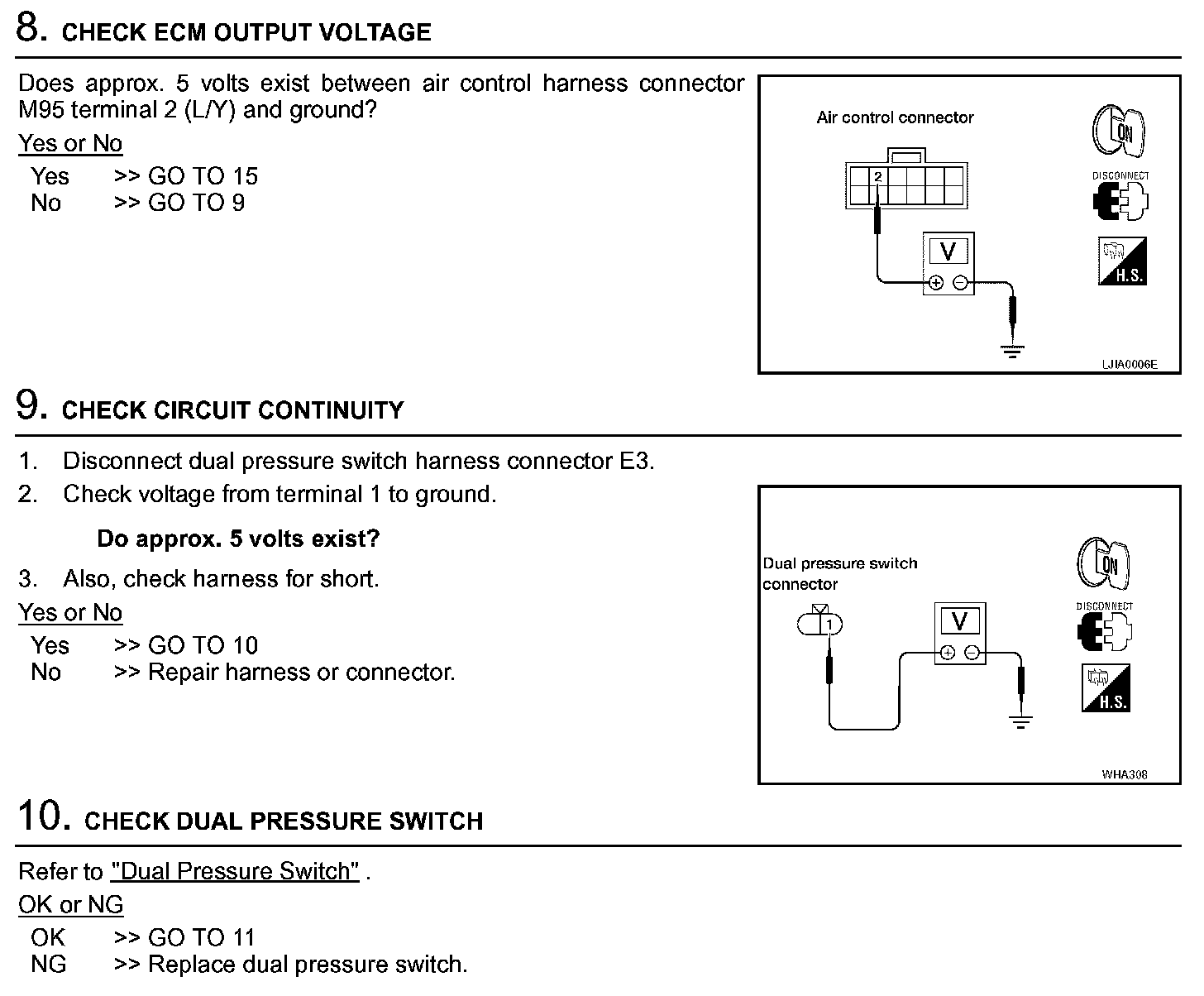

Diagnostic Procedure Step 8 - 10:

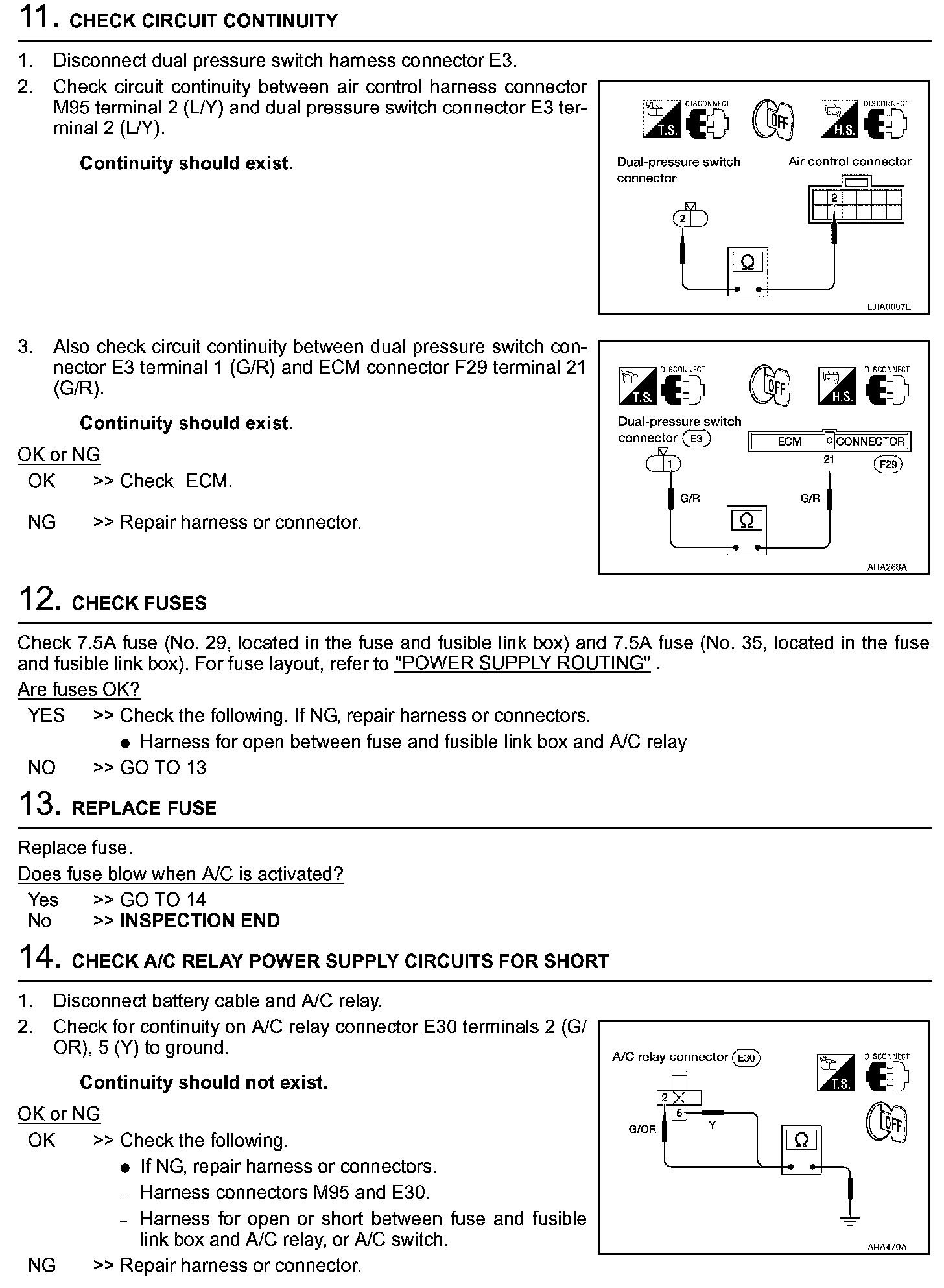

Diagnostic Procedure Step Step 11 - 14:

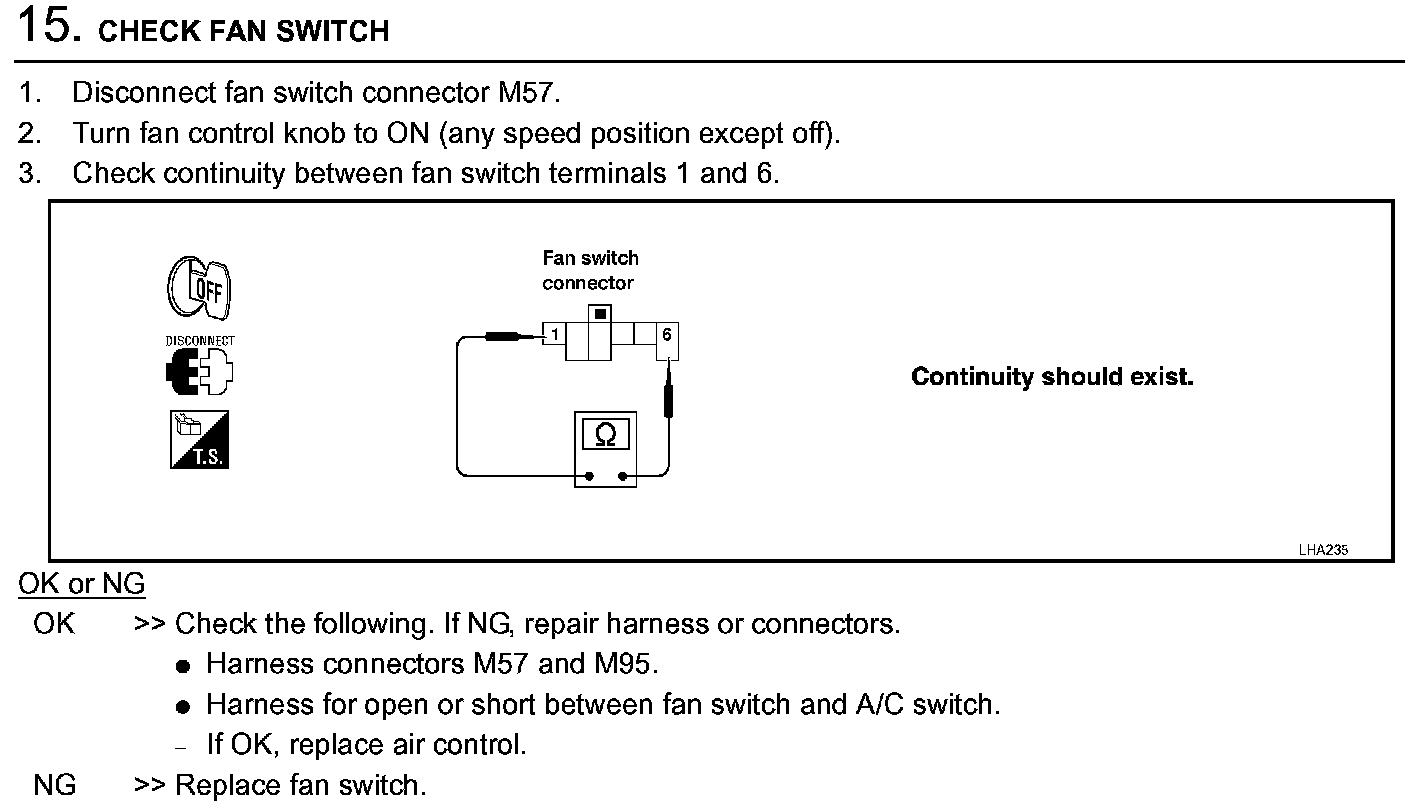

Diagnostic Procedure Step 15:

MAGNET CLUTCH CIRCUIT

SYMPTOM:
- Magnet clutch does not engage when A/C switch and fan switch are ON.
