Intake Door Motor Circuit

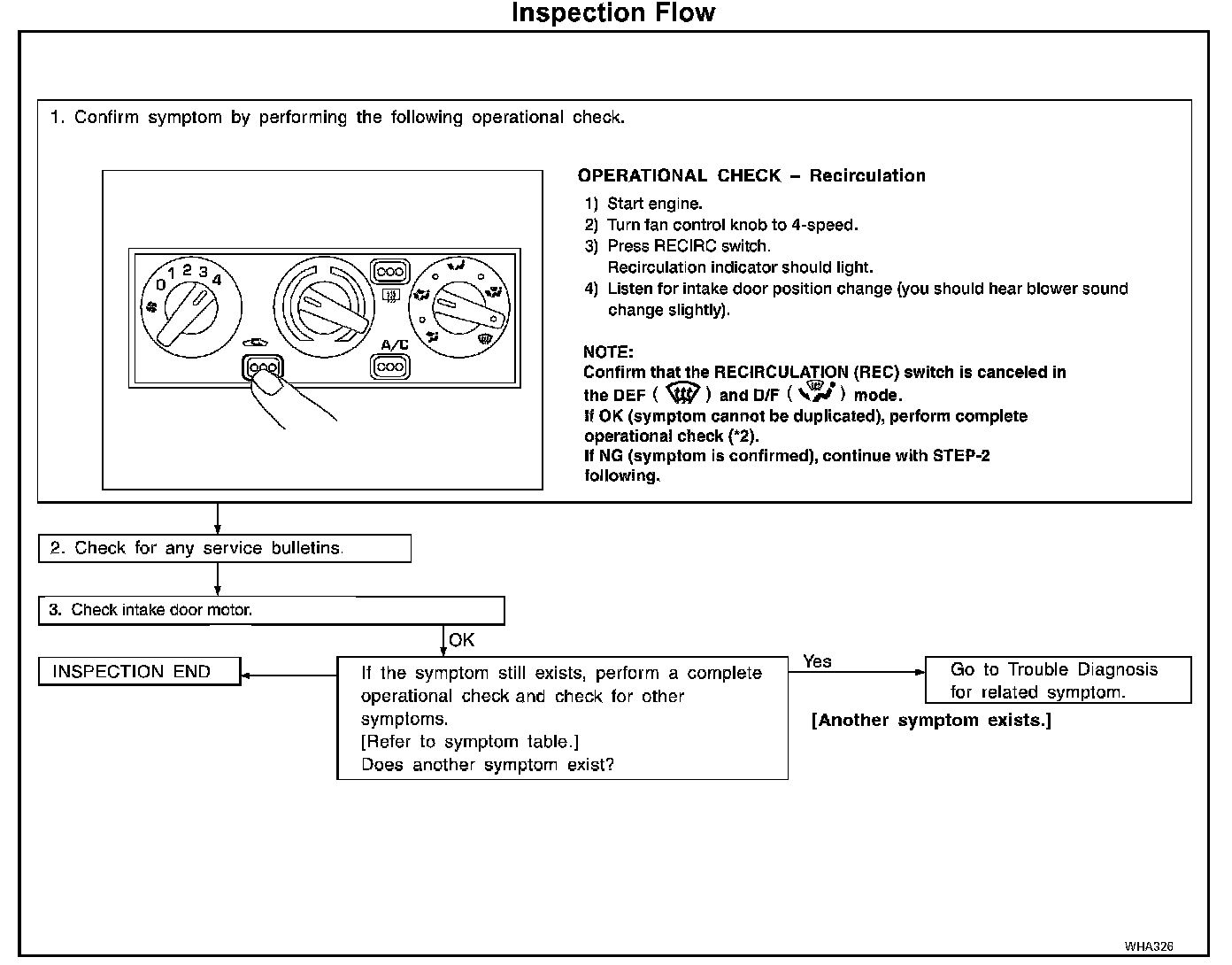

Inspection Flow:

TROUBLE DIAGNOSIS PROCEDURE FOR INTAKE DOOR

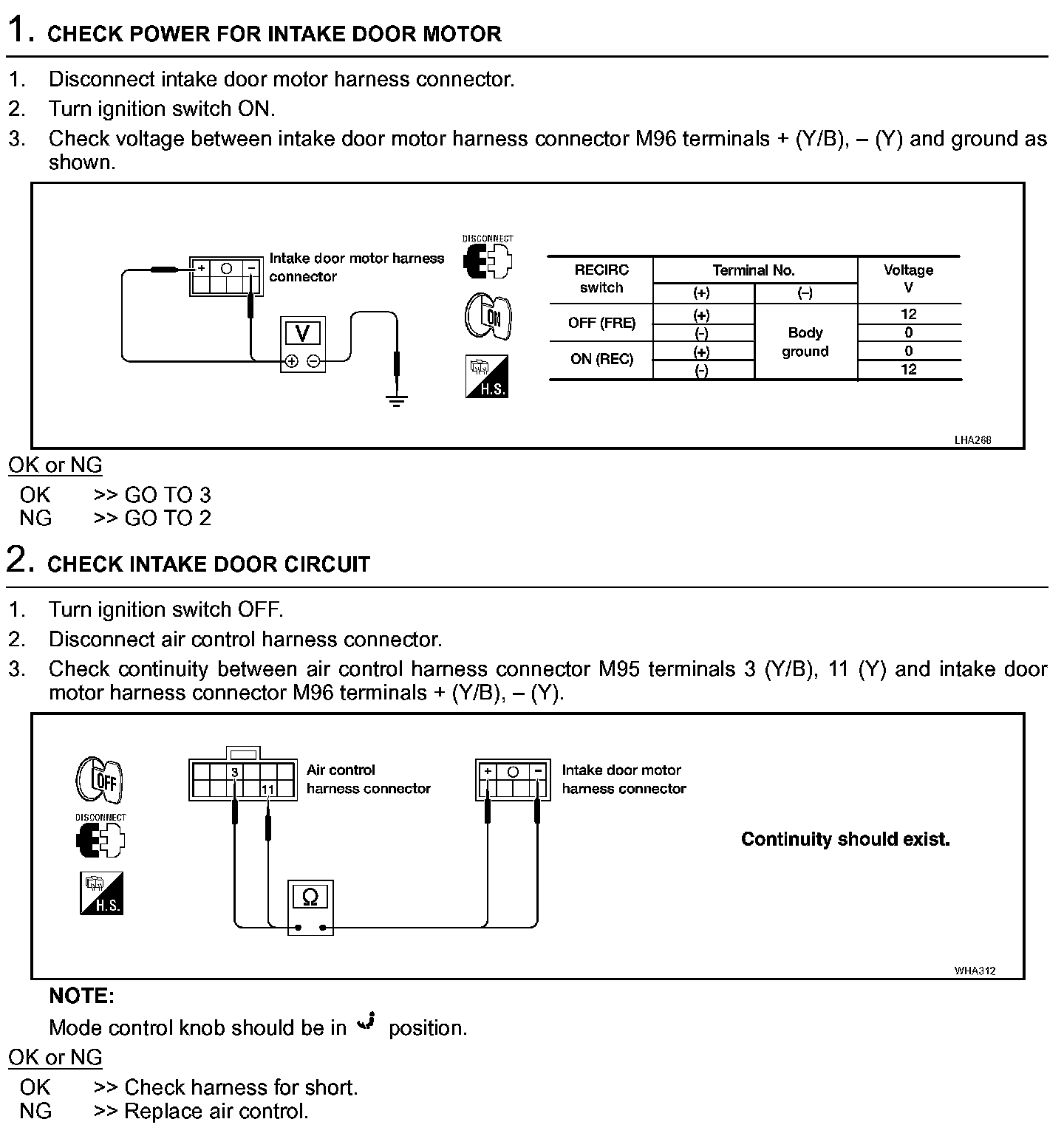

Diagnostic Procedure Step 1 - 2:

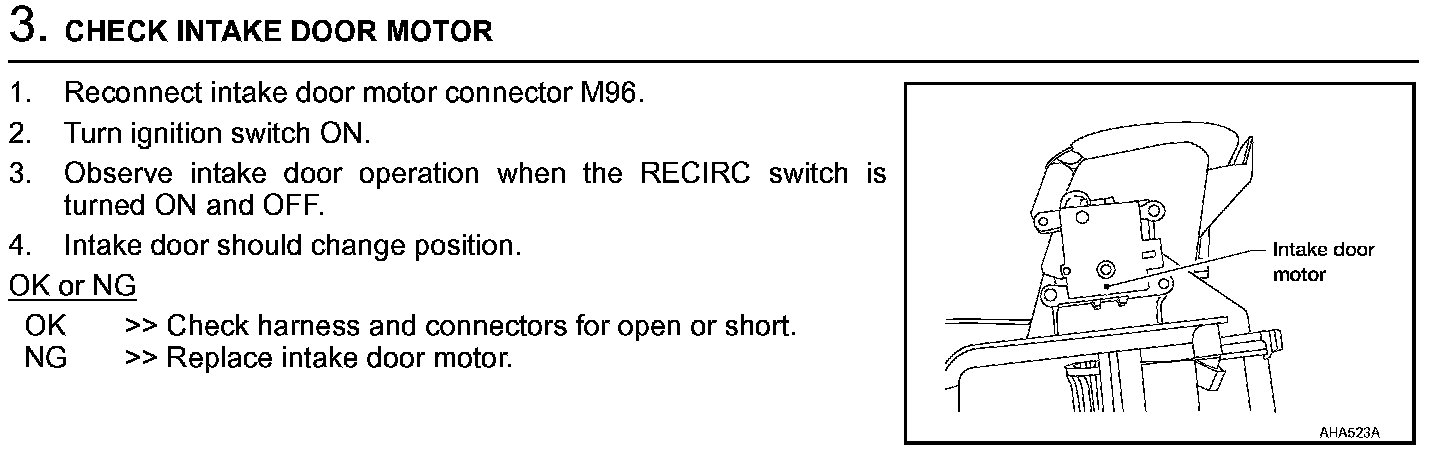

Diagnostic Procedure Step 3:

Intake Door Circuit

Symptom:
- Intake door position does not change in VENT, B/L or FOOT mode.

CONTROL LINKAGE ADJUSTMENT

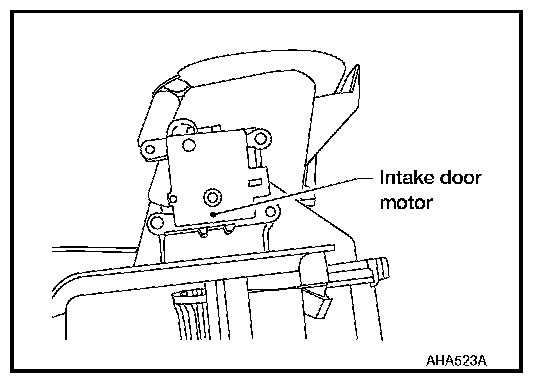

Intake Door Motor
1. Install intake door motor on intake unit.
Ensure that the intake door motor lever is fitted into the slit portion of the intake door link.
2. Connect the intake door motor harness connector before installing the intake door motor.
3. Turn ignition switch on and press the recirculation switch.
4. Turn the mode control knob to VENT, B/L or FOOT mode.
5. Check that intake door motor operates properly when RECIRCULATION switch is turned ON and OFF.
