Blower Motor Circuit

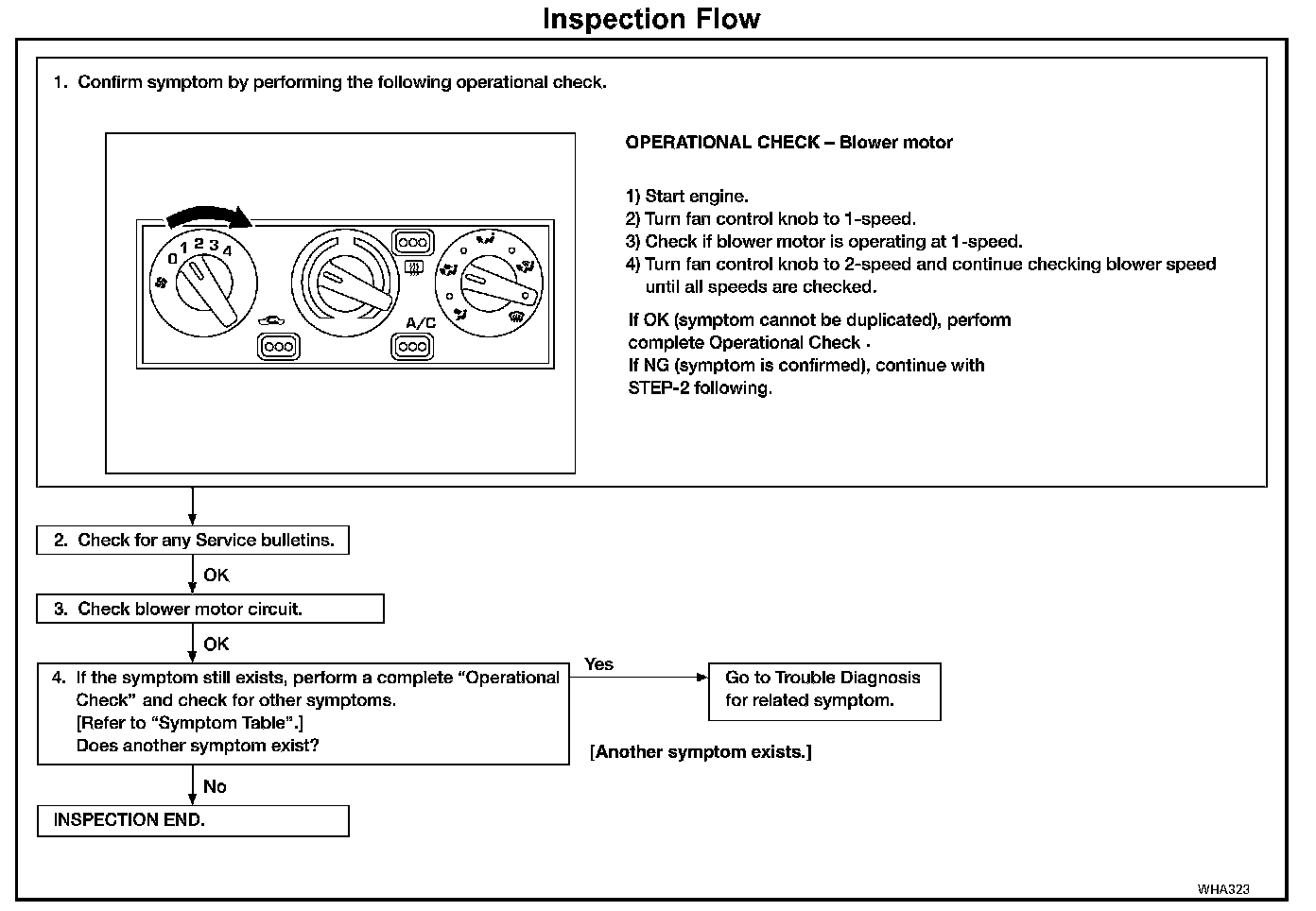

Inspection Flow:

TROUBLE DIAGNOSIS PROCEDURE FOR BLOWER MOTOR

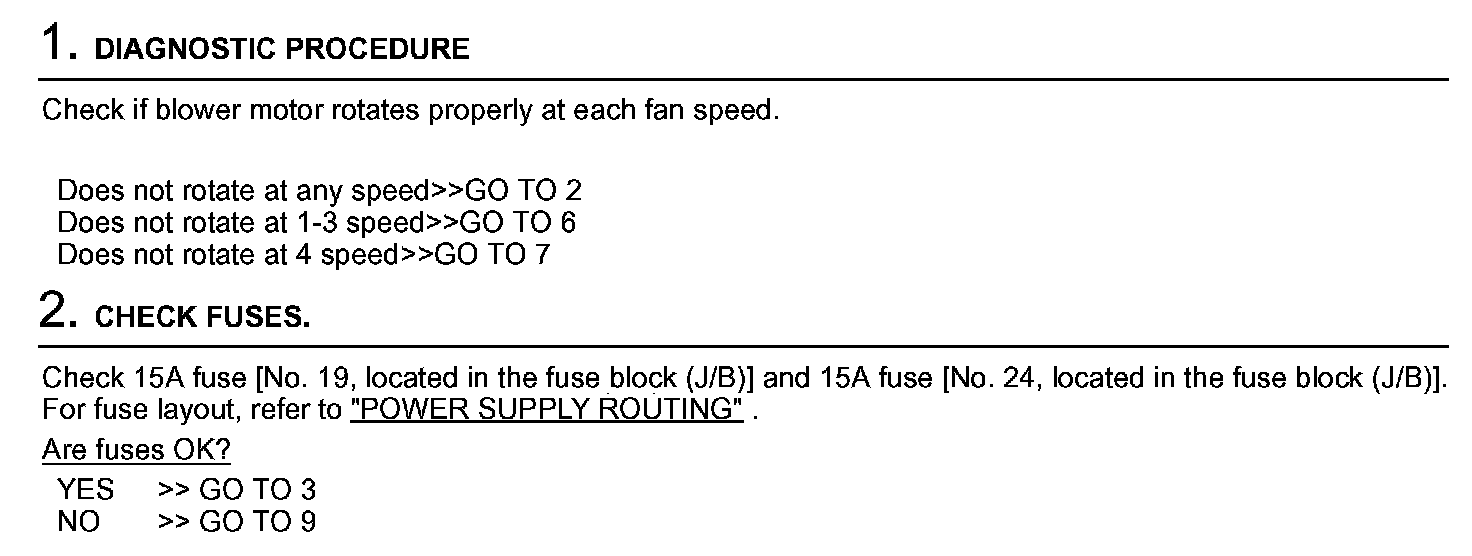

Diagnostic Procedure Step 1 - 2:

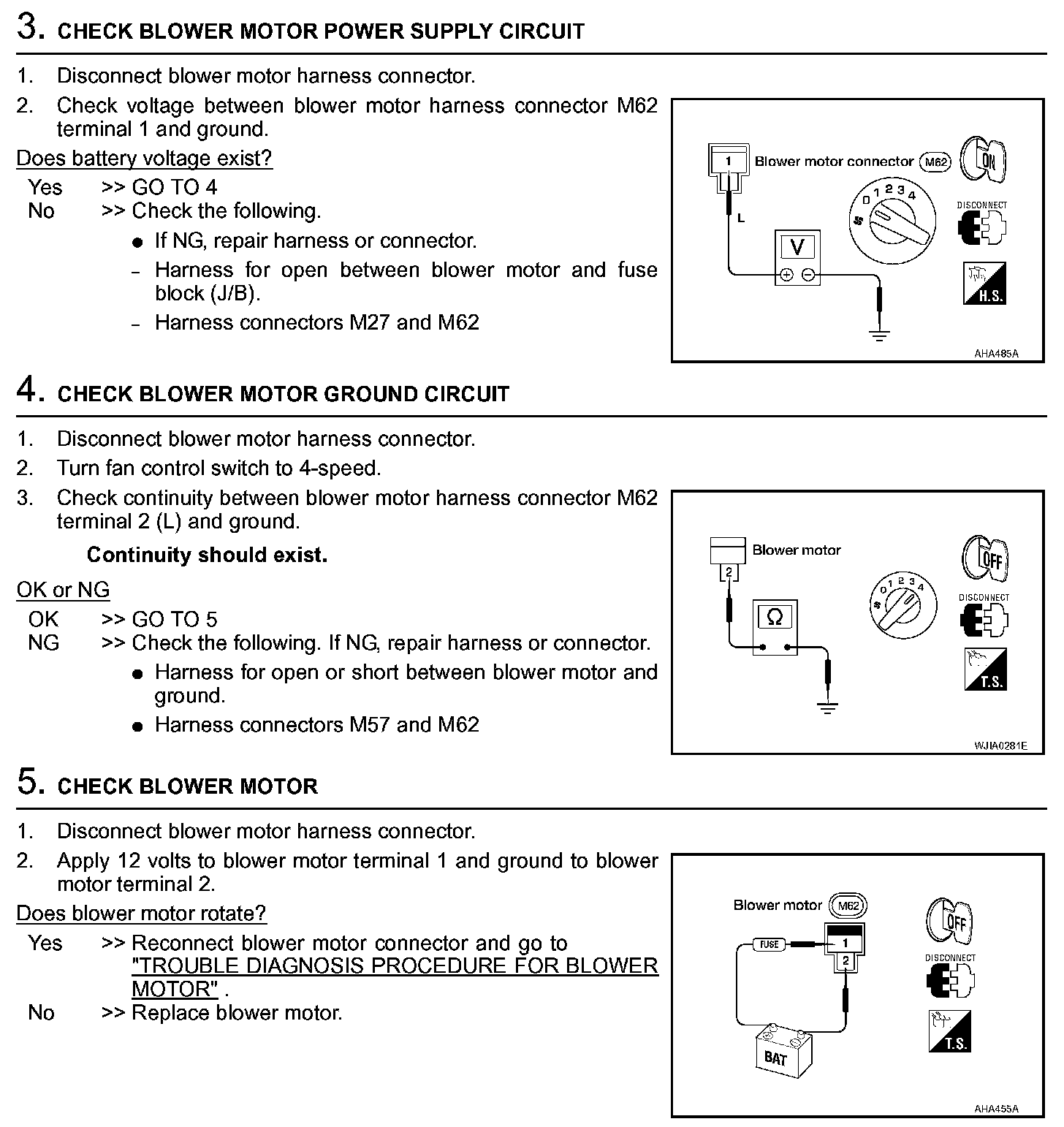

Diagnostic Procedure Step 3 - 5:

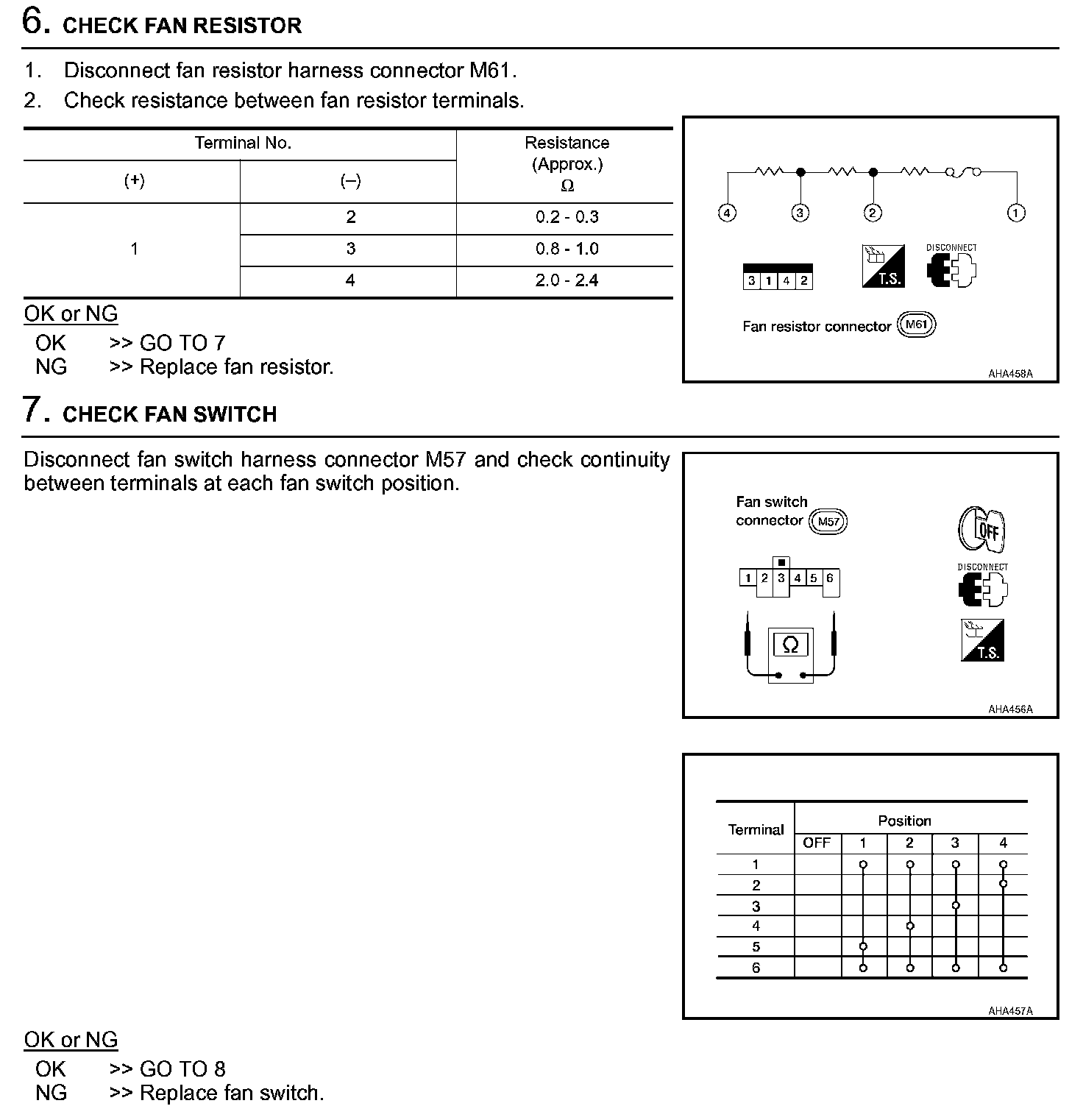

Diagnostic Procedure Step 6 - 7:

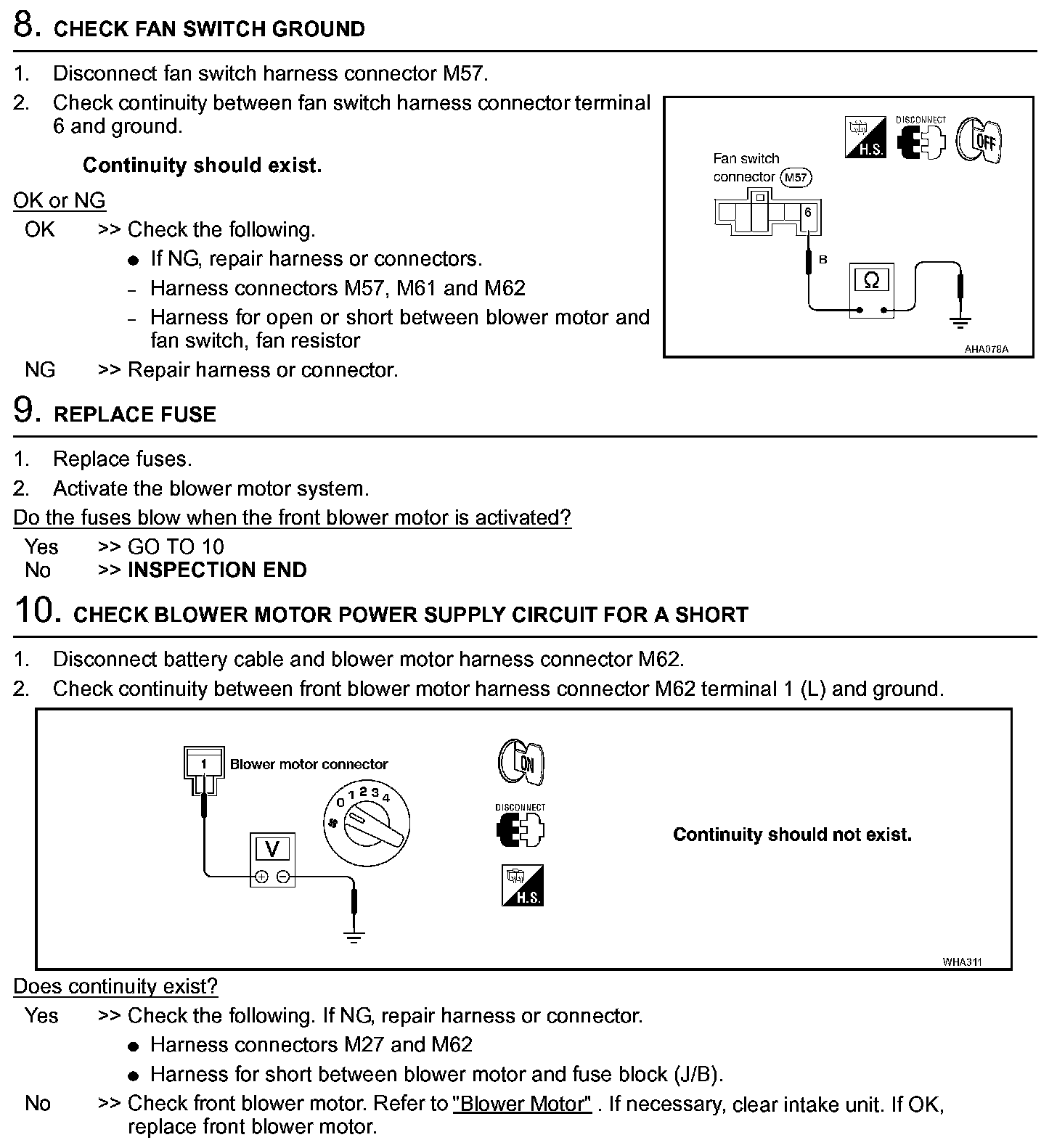

Diagnostic Procedure Step 8 - 10:

BLOWER MOTOR CIRCUIT

Symptom:
- Blower motor does not rotate.

ELECTRICAL COMPONENTS INSPECTION







Fan Switch

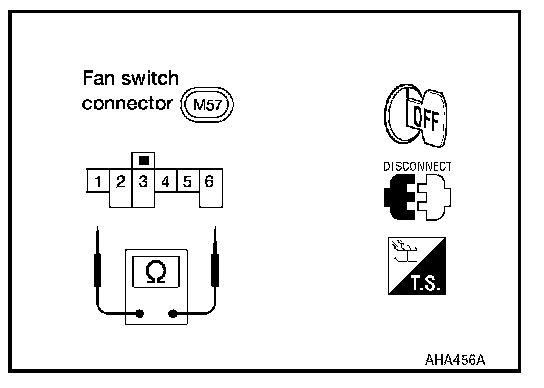

Check continuity between terminals at each switch position.




Blower Motor
Confirm smooth rotation of the blower motor.
- Check that there are no foreign particles inside the intake unit.

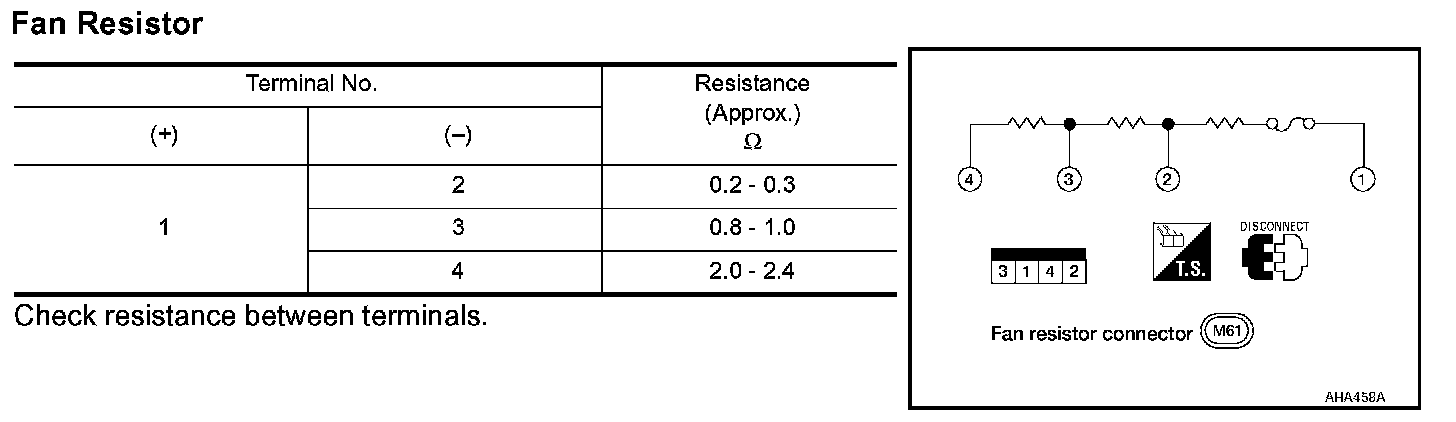

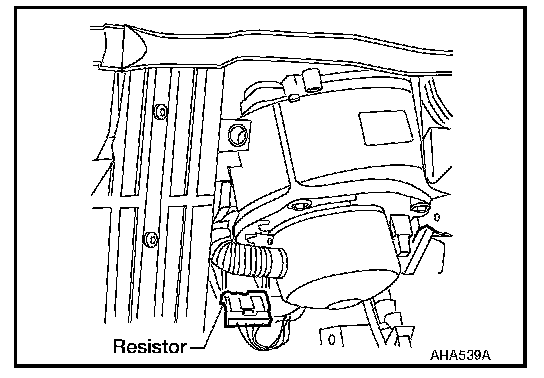

Fan Resistor
