Intake Manifold Torque & Sequence

NOTE: If only the intake is removed, install the manifold using three steps and tightening the manifold nuts and bolts to specifications.

CAUTION: If replacing the intake with a new manifold, the cylinder head gasket must also be replaced with a new one.

NOTE: If both the intake and cylinder head are being installed, see Cylinder Head Torque & Sequence

Intake Manifold Disassembly Sequence:

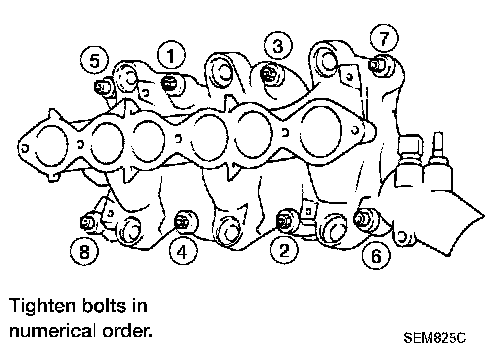

Intake Manifold Assembly Sequence:

Step 1: 4 Nm (2.9 ft lbs)
Step 2: 9 Nm (6.5 ft lbs)
Step 3: 8-10 Nm (5.8-7 ft lbs)
