Engine: Service and Repair

ENGINE ASSEMBLY





Removal and Installation

WARNING:
^ Position the vehicle on a flat and solid surface.
^ Place wheel chocks at the front and back of the rear wheels.
^ Do not remove the engine until the exhaust system has completely cooled off. Otherwise, you may burn yourself and/or fire may break out in a fuel line.
^ For safety during subsequent steps, the tension of wires should be loosened against the engine.
^ Before disconnecting the fuel hose, release the fuel pressure from the fuel system.
^ Before removing the front axle from the transmission, place safety stands under the designated front supporting points.
^ Lift the engine and transmission in a safe manner.
^ For engines not equipped with engine slingers, attach the proper slingers and bolts.

CAUTION:
^ When lifting the engine, be careful not to strike any adjacent parts, especially the accelerator wire casing, brake lines, and brake master cylinder.
^ In hoisting the engine, always use the engine slingers in a safe manner.
^ Before separating the engine and transmission, remove the crankshaft position sensor (OBD).
^ Do not damage the edge of the crankshaft position sensor (OBD), or the ring gear teeth.





^ Do not loosen the front engine mounting insulator cover bolts.
^ When the front engine cover is removed, the damper oil flows out and the mounting insulator will not function. Tighten all transmission mounting fasteners to specification.





REMOVAL
1. Remove the engine undercover and the hood.
2. Drain the coolant from the cylinder block and radiator.
3. Release the fuel pressure from the fuel system.
4. Remove the vacuum hoses, fuel tubes, wires, harnesses and connectors.
5. Remove the radiator with the shroud and cooling fan.
6. Remove the drive belts.
7. Discharge the A/C refrigerant.
8. Remove the A/C compressor manifold.
9. Remove the power steering oil pump from the engine, secure the pump with wire to the engine compartment.
10. Remove the front exhaust tubes.

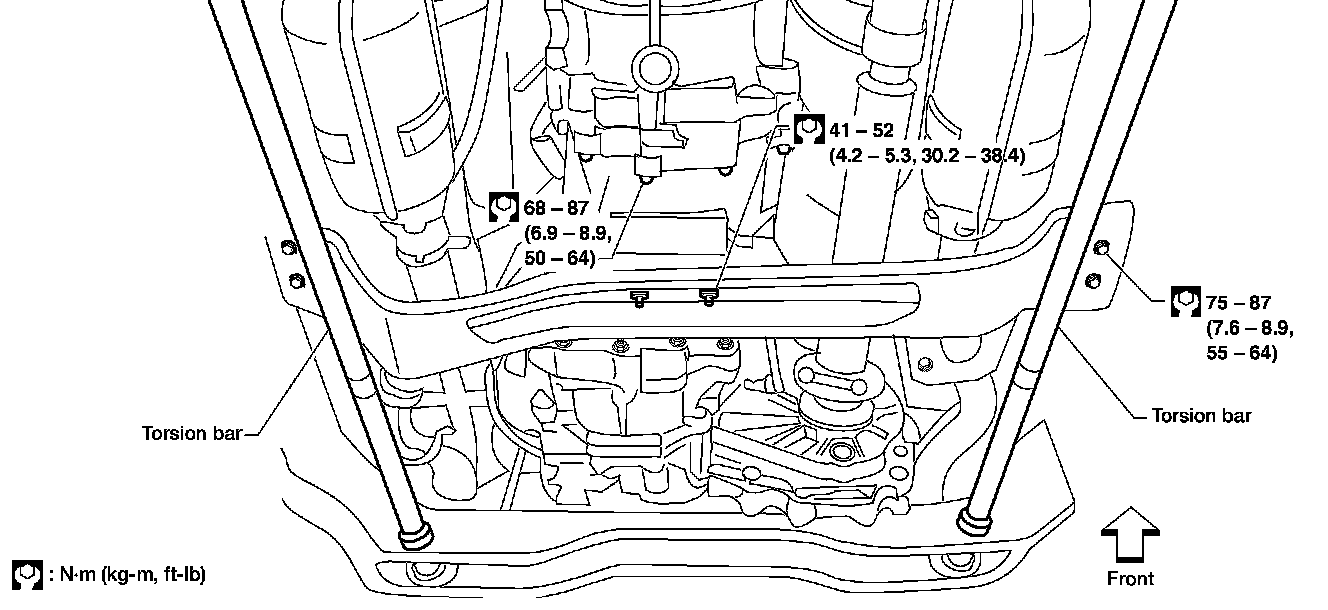

11. Remove the transmission.

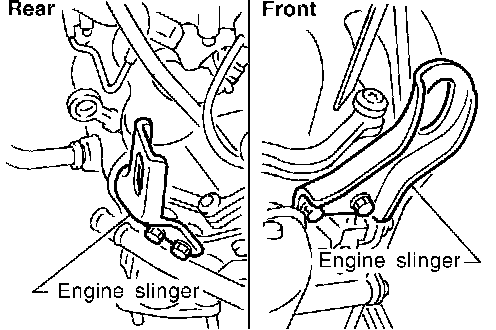

12. Install the engine slingers.
Slinger bolts: 20 - 26 Nm (2.1 - 2.7 kgf-cm, 15- 20 ft. lbs.)

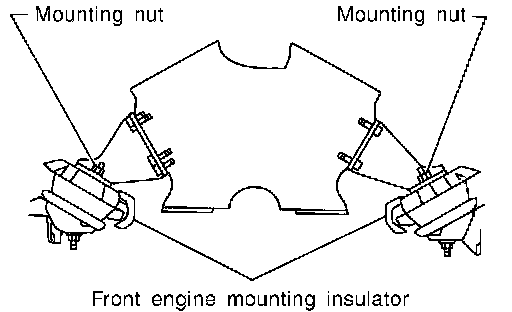

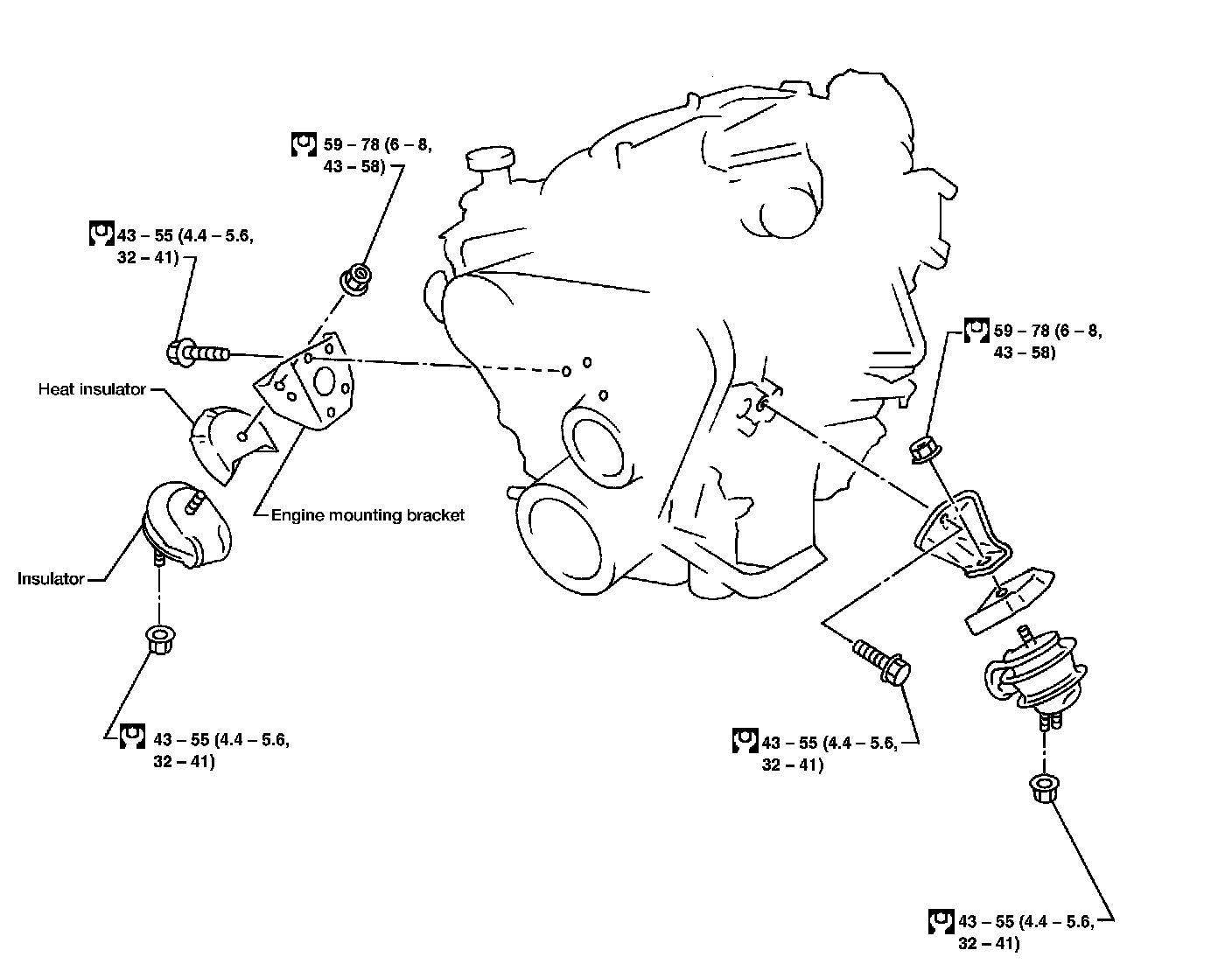

13. Hoist the engine with the engine slingers to take the tension off of the engine mounts and remove the engine mounting nuts from both sides.
14. Lift and remove the engine from the engine compartment.

INSTALLATION
Installation is in the reverse order of removal.
