Regulator Valve Inspection

Regulator Valve Inspection





1. Visually inspect components for wear and damage.

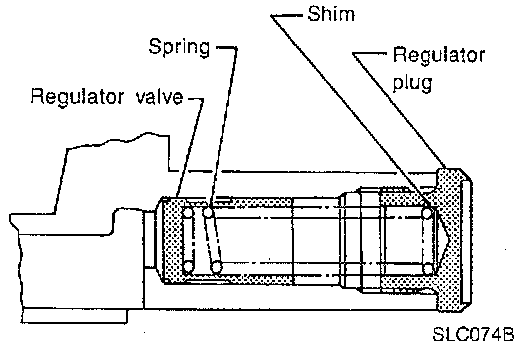

2. Check oil pressure regulator valve sliding surface and valve spring.
3. Coat regulator valve with engine oil. Check that it falls smoothly into the valve hole by its own weight.
4. If damaged, replace regulator valve set or oil pump assembly.
